17.5kv Outdoor Single-Phase Combined Transformer

Name: 17.5kv Outdoor Single-Phase Combined Transformer
Brand: all-electronics-online.com
SKU: 788703345
Availability: InStock
Rating: 4.3 (27 reviews)

Price:	US $ 920-940/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JLDZXW1-17.5-003
Current Transformer:	CT
Epoxy Resin:	17.5¬24
24kv:	Outdoor
12kv:	25-20k Hz 45-600Hz
China:	Factory
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

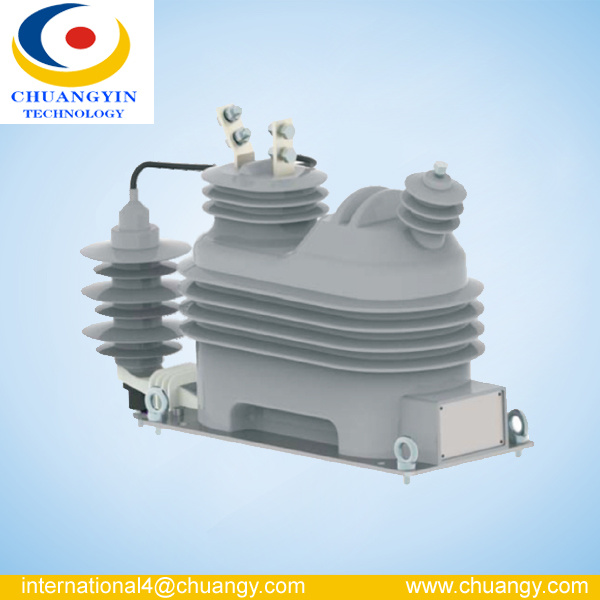

JLDZXW1-17.5F Outdoor Combined Transformer

Description
The transformer is casted together by 1 CT and 1 PT with small size, it saves room. It can be
used outdoor, Its highest voltage for equipment can be 17.5kV. The transformer can be executed .

Main technical parameter
Outdoor use
Cast-resin insulated
Frequency 50 or 60Hz
Rated insulation level: 17.5/38/95kV
Insulation voltage of wiring equipment: 600V
Standards: IEC 60044-1 & IEC 60044-2

Type	Rated Voltage ratio(V)	Accuracy class	Rated output (VA)	Rated current ratio(A)	Accuracy class	Rated output (VA)
JLDZXW1-17.5F	12470/√3/120 12470/√3/110 12470/√3/100	0.5	15	5-10/5	0.5S	12.5
				10-20/5
				15-30/5
				…
				200-400
				300-600
				400-800
				500-1000
				600-1200

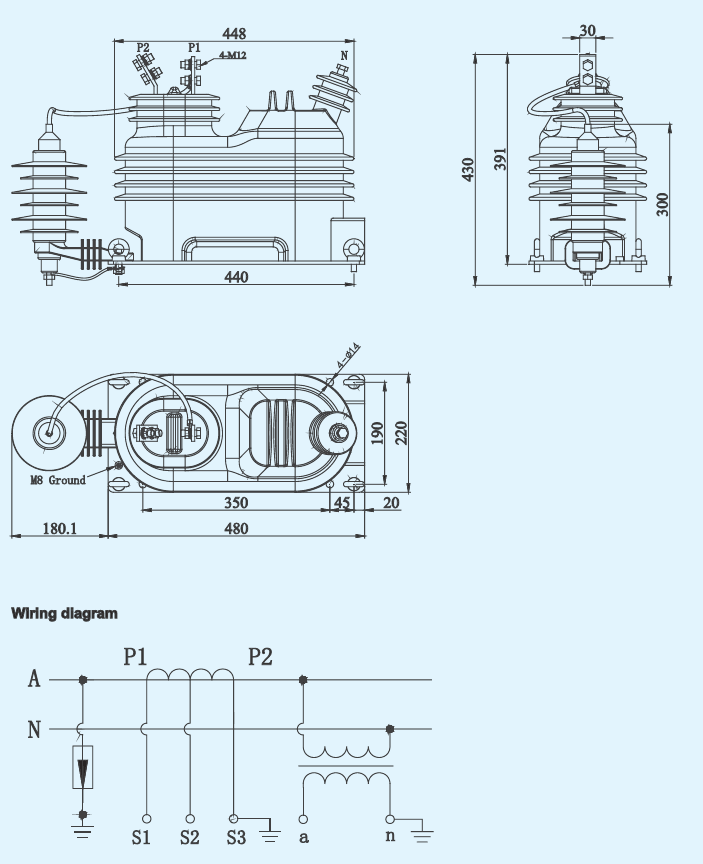

Outline drawing

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.

www.chuangy.com
