1710-2500MHz 11dBi Logarith Cycle Directional Antenna

Name: 1710-2500MHz 11dBi Logarith Cycle Directional Antenna
Brand: all-electronics-online.com
SKU: 689997421
Availability: InStock
Rating: 4.3 (116 reviews)

Price:	US $ 2-10/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	A-27-PT
Color:	White
Gain:	10/11 dBi
Polarization:	Vertical
Radome Material:	ABS
Usage:	Communication Antenna
Material:	Cu
Directionality:	Directional Antenna
VSWR:	1.5~2
Operating Wavelength:	Customization

Product Description

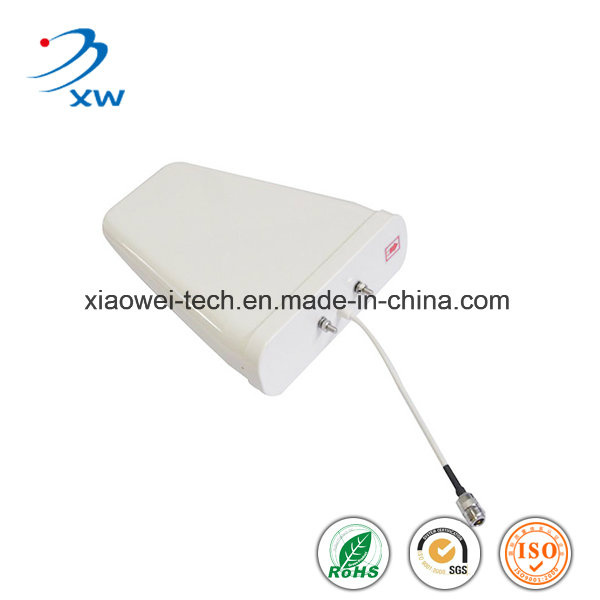

1710-2500MHz 11dBi Logarith Cycle Directional Antenna

Company profile

Specification

Model	LSVPLP-800/2500-10-01
Main Technical Specifications
Frequency Range	806-960MHz 1710-2500MHz
Gain	10/11dBi
Rated Power	100W
Input Impedance	50Ω
Polarization Type	Vertical
VSWR	<1.4
Horizontal Beamwidth (3dB)	65°
Vertical Beamwidth (3dB)	40°
Front to Back Ratio	23dB
First Below Null-Fill	<20dB
Connector Type	N-Female
Lightning Protection	DC ground
Dimension	460×210×65mm
Weight	1050g
Working temperature	-40ºC~+70ºC

1. Installation instruction:
In accordance with the installation sketch, drill a hole of Φ35mm in the ceiling.
Screw the fixing nut to fasten the antenna on the ceiling. The ceiling's thickness is at most 20mm.

2. Storage and transportation:
A. The antenna must be stored in room temperature and dry environment;B,Handle the antenna with care

3. Attention: The antenna mustn't be near to fire.

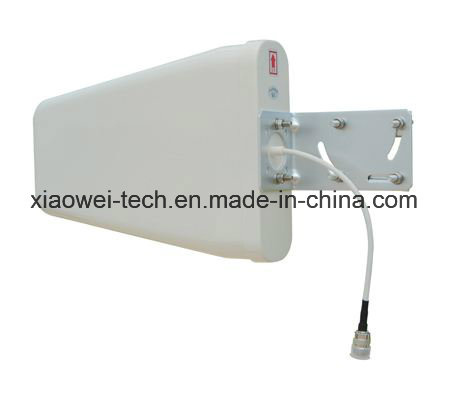

Detailed Images

For more information, please feel free to contact us!!

Shanghai Xiaowei Equipment Co., Ltd (Xiaowei) was established in 2011, Shanghai, which is a company covering cable and accessories manufacturing, engineering service and trading. The main product is coaxial/feeder cable, feeder claim, feeder tools, all kind of the male, female, DIN, connectors, feeder connectors, feeder grouding kit/bar, low loss jumper cable, indoor optic jumper cable and outdoor fiber cable, splitter and coupler, antenna, GPS antenna and all the accessories in the telecom field.

Xiaowei has long cooperation with the Chinese main telecom operators such as China Mobile, China Unicom, China Telecom. And the electric power operator such as National Electric network company, Southern Electric power company. Xiaowei provides total solution for telecommunication, power grid, railway, engineering, green energy, automobile industries, etc.

Xiaowei particularly focused on the QS and creating value for its clients and stakeholders, continuously invest in R&D, marketing & service networks, meeting and exceeding the precise needs of our customers national wide. With the develop of the business, we extend the service to the international trading.
