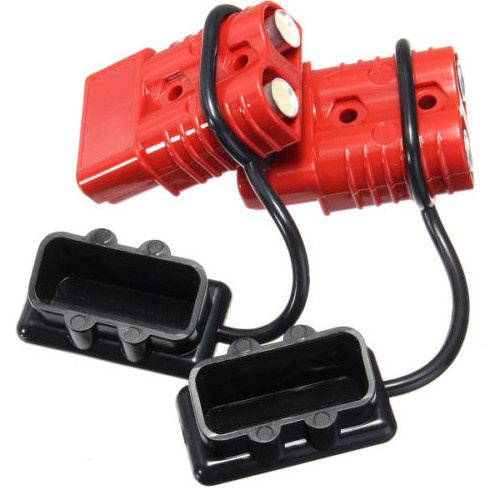

175 a Quick Connector with Silver Terminal

175 a Quick Connector with Silver Terminal
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T
Contact Supplier
Showroom Product Company Profile
Prod Model: XM-WA009
Size: Compact
Durable: Lifetime
AMP: 175 a
Material: Silver-Plated Copper
Application: Conduct Electricity
Type: Winch Accessories
Certification: Ce

Product Description




Description:
Color: Grey ,Red  or OEM
Housing Material: Nylon
Contact material: Pure copper silver plating
Current: 175 amps
Voltage: 600 Volts (Max)
Suitable for cables up to 25mm2 (4 AWG)
Terminals can either be crimped or soldered to the cables
Housing dimensions: 79 x55 mm

Features:
.Light and durable nylon housing.
.Mechanical keyed housings - prevents accidental mating of components operating at different voltage levels.
.Single-piece housing and unitized construction - provides industrial quality and durability.
.Genderless design - makes assembly quick and easy and reduces number of parts stocked.
.Flat wiping contact system - Allows for minimal contact resistance at high current, wiping action cleans contact surface during disconnection.
. Silver plated contacts - offers greater longevity when using high power, elevated temperature applications.

Applications:
Jump starting or Slave/Auxiliary batteries - Motorsports, Forklift trucks, Mobility scooters, Motorcycles, Winches, UPS systems, Telecommunication, Wheelchairs, Electric Vehicles, Power Electronics, etc

Package Included:
2 x Plugs
4 x Terminals
We can offer quick connectors kit with wirings .OEM is availbale all the time
Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.

Thanks
