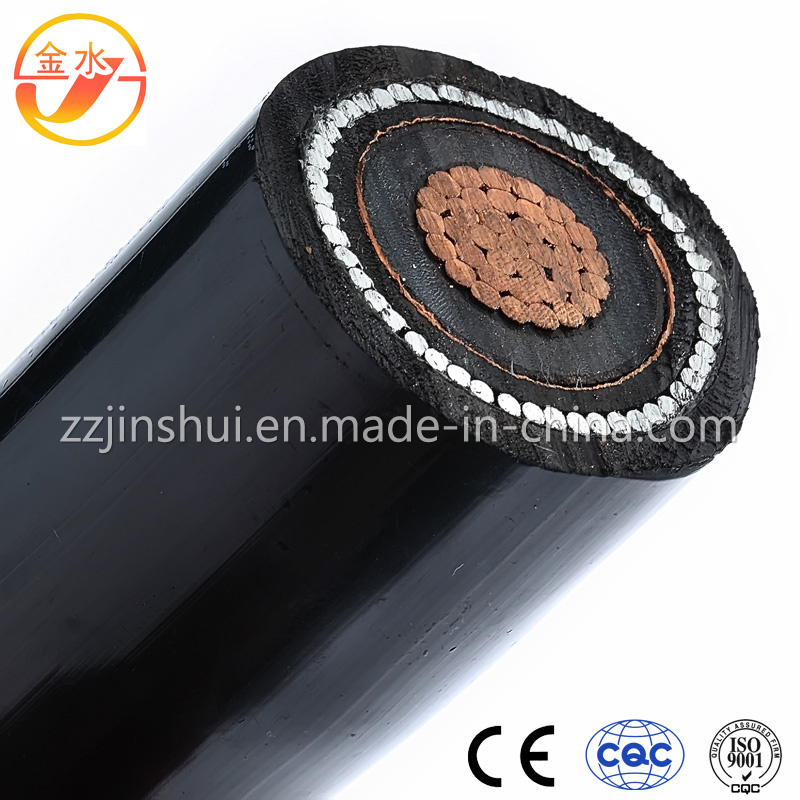

175mil Xlp 15 Kv Cable One-Third Neutralcopper Conductor Cable
| Price: |
US $ 0.99-5.99/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Range Of Application: |
Underground |
| Brand: |
Jinshui |
Product Description
ApplicationsFor use on single phase and three phase primary underground distribution systems operating at 20kV phase to phase at 100% insulation level. Suitable for either direct burial or installation in ducts.ConstructionCopper concentrically stranded compressed conductor, triple single head extruded conductor shield, XLPE (cross-linked polyethylene) insulation and easy strippable insulation shield, all dry nitrogen cured; solid bare copper wires uniformly spaced around the cable as a concentric neutral; LLDPE jacket with extruded longitudinal colored stripes, surface printed.Standards · AEIC CS8 Specification for Extruded Dielectric Shielded Power Cables Rated 5 through 46kV · ICEA S-94-649 Standard for Concentric Neutral Cables Rated 5,000 - 46,000V · ICEA T-31-610 Guide for Conducting a Longitudinal Water Penetration Resistance Tests on Blocked Conductors · ICEA T-34-664 Test Method for Conducting Longitudinal Water Penetration Resistance Tests on Longitudinal Water Blocked CablesOptions · EPR insulation · Filled strand · Cable core water blockingNotes · Ampacities are based on the NEC. · Cable Tray: Three single cables, installed in uncovered cable tray in accordance with NEC Section 392.13; operating at 105°C conductor, at an ambient temperature of 40°C. · Buried Duct: Three cables per duct operating at 105°C conductor, 20°C ground ambient, earth ρ = 90, 100% load factor. · Conduit in Air: Three cables per isolated conduit in air at 40°C; operating at 105°C conductor (NEC Table 310.73). · Maximum conductor temperature: 90°C normal continuous, 130°C overload, 250°C short circuit.
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
