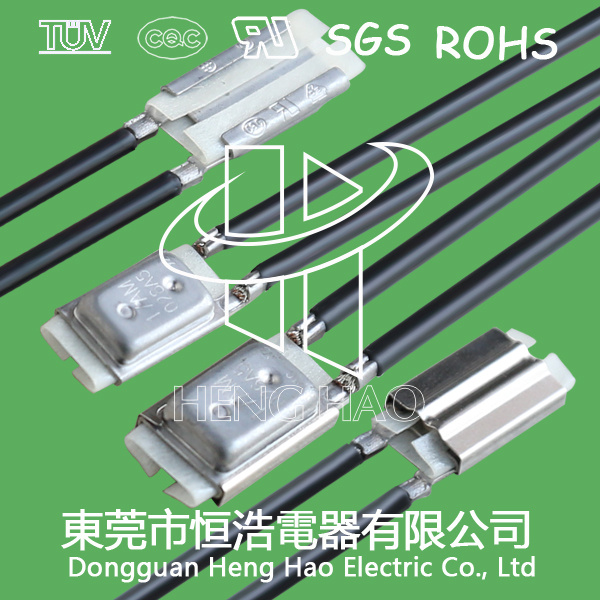

17amh Thermal Protector, 17amh Temperature Controller Switch

17amh Thermal Protector, 17amh Temperature Controller Switch
Price: US $ 0.25-0.35/Piece
Trade Terms: FOB
Min Order: 1000/Piece
Pay Type: L/C,T/T
Prod Model: 17AM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Life Cycle: 10000 Times

Product Description

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector
1. 17AMH thermostat's Principle and structure
17AMH is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.
2. 17AMH thermal protector's Specification
2.1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
2.2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10, 000 Cycles; AC-125V 5A more than 100, 000 Cycles
2.3. Operating temperature range: 50-180° C
2.4. Temperature tolerance: ± 2° C± 3° C± 5° C
2.5. Reset temperature: 10~45 degrees in off temperature decline.
2.6. Working times: Over 10000 times
2.7. Code syste
17AMH XXX A / B 5 A, B, C, D^^^...Z
(17AMH): The number of product series
(XXX): Trip off temperature in ° C Code
(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction


(5): OFF Temperature Tolerance Code
(A, B, C, D^^^...Z): Different type of connecting wire
2.9. Product Drawing

3.17AMH temperature protector's Application
17AMH thermal protector is applicable to all kinds of Motor, commutator for fluorescent lamp, tansformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances
4.17AMH thermostat's A/° C and A/T Graph:

The product UL, CQC, VDE and RoHS certification approval.
Thermostat, thermal protector supplier, thermal protector, Thermostat supplier
Thermostat manufacturer
Trip  off  temperature  in  & deg;   C  Code
Degrees  & deg;   CCodeDegrees  & deg;   CCodeDegrees  & deg;   CCodeDegrees  & deg;   CCode
55& deg;   C1890& deg;   C25125& deg;   C32160& deg;   C39
60& deg;   C1995& deg;   C26130& deg;   C33165& deg;   C40
65& deg;   C20100& deg;   C27135& deg;   C34170& deg;   C41
70& deg;   C21105& deg;   C28140& deg;   C35175& deg;   C42
75& deg;   C22110& deg;   C29145& deg;   C36180& deg;   C43
80& deg;   C23115& deg;   C30150& deg;   C37
85& deg;   C24120& deg;   C31155& deg;   C38
