| Prod Model: |
Low Fire Hazard Cables |
| Conductor: |
Class 2 Stranded Aluminium Conductor |
| Inner Semi-Conductive Layer: |
Semi-Conductive Material |
| Insulation: |
XLPE (Cross-Linked Polyethylene) |
| Outer Semi-Conductive Layer: |
Semi-Conductive Material |
| Screen: |
Copper Wires |
| Sheath: |
PVC (Polyvinyl Chloride) |
| Application: |
Power Distribution |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
SGS |
| Model: |
Rhz1-Ol |
| Brand: |
Hongda |
Product Description

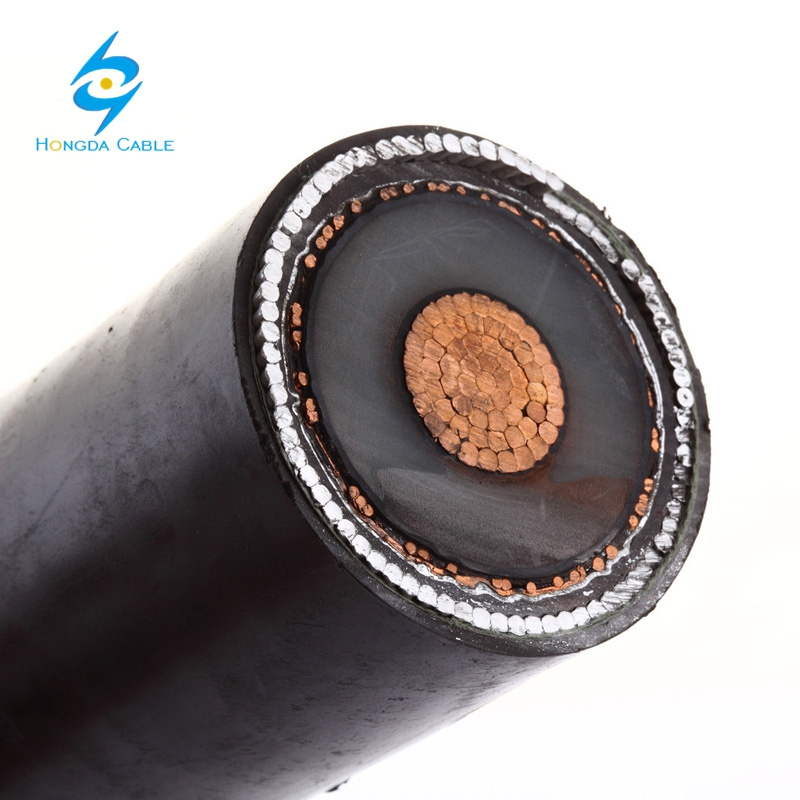

18/30 kV RHZ1-OL Low Fire Hazard Cables for Power DistributionEXCELLENT RHZ1-OL (AS) Al / Cu

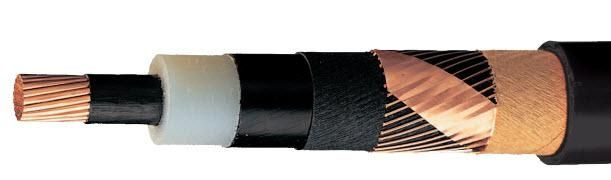

CONSTRUCTION  |
| CONDUCTOR | Aluminium / Copper, semi-rigid class 2 |
| INSULATION | Cross-linked polyethylene (XLPE) |
| SCREEN | Copper wire helicoidal layer |
| SHEATH | LSOH compound |
| VOLTAGE | 18/30 kV |
| STANDARDS | HD 620-10E - Design and testing standard
IEC 60332-1-2 - Flame retardant (single wire)
IEC 60332-3-23 - Fire retardant (bunched wires) cat. B
IEC 60754 - Halogen free. Low acidity and corrosivity of evolved gases
IEC 61034 - Low opacity of evolved fumes |
APPLICATIONS AND MAIN CHARACTERISTICS
Cables for power distribution for high voltage installed in air.
Abrasion and tear-resistant jacket. Easier slide. Shielding with lengthways shutter against water penetration.
Low fire hazard cable: flame and fire retardant, halogen-free, low acidity and corrosiveness of gases and low opacity of smoke emitted during combustion.
Electrical CharacteristicsDimensions
| No. of Cores | Nominal Cross Sectional Area | Nominal Weight |
| mm² | (Cu) kg/km | (AL) kg/km |
| 1 | 150 | 3450 | 2570 |
| 1 | 185 | 3875 | 2755 |
| 1 | 240 | 4545 | 3080 |
| 1 | 300 | 5240 | 3360 |
| 1 | 400 | 6175 | 3785 |
| 1 | 500 | 7290 | 4195 |
| 1 | 630 | 8860 | 4875 |
Why Choose Us ?1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
FAQQ: Are you trading company or manufacturer ?A: We are factory.
Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?A: 30% T/T in advance,70% T/T balance before shipment

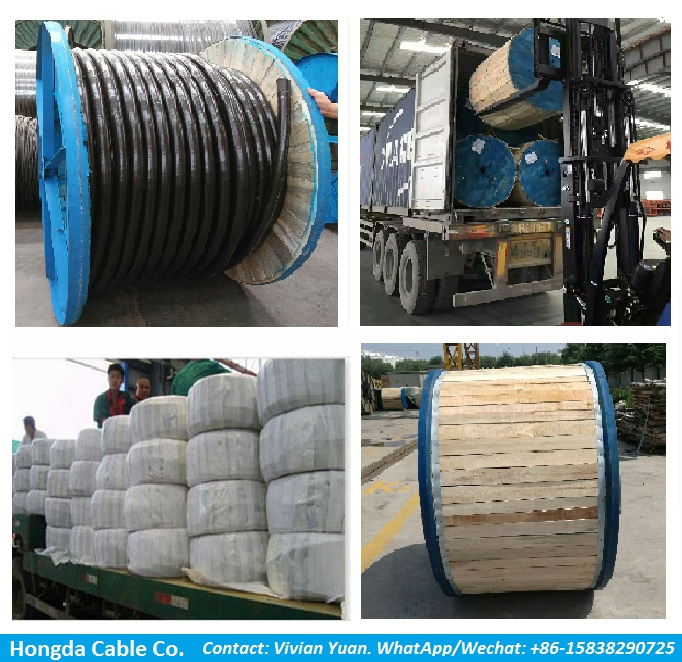

4. PACKAGE:
