| Prod Model: |
N2XSER2Y |
| Inner Semi-Conductive Layer: |
Semi-Conductive Material |
| Insulation: |
XLPE (Cross-Linked Polyethylene) |
| Outer Semi-Conductive Layer: |
Semi-Conductive Material |
| Screen: |
Copper Wires |
| Sheath: |
PVC (Polyvinyl Chloride) |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Brand: |
Hongda |
Product Description

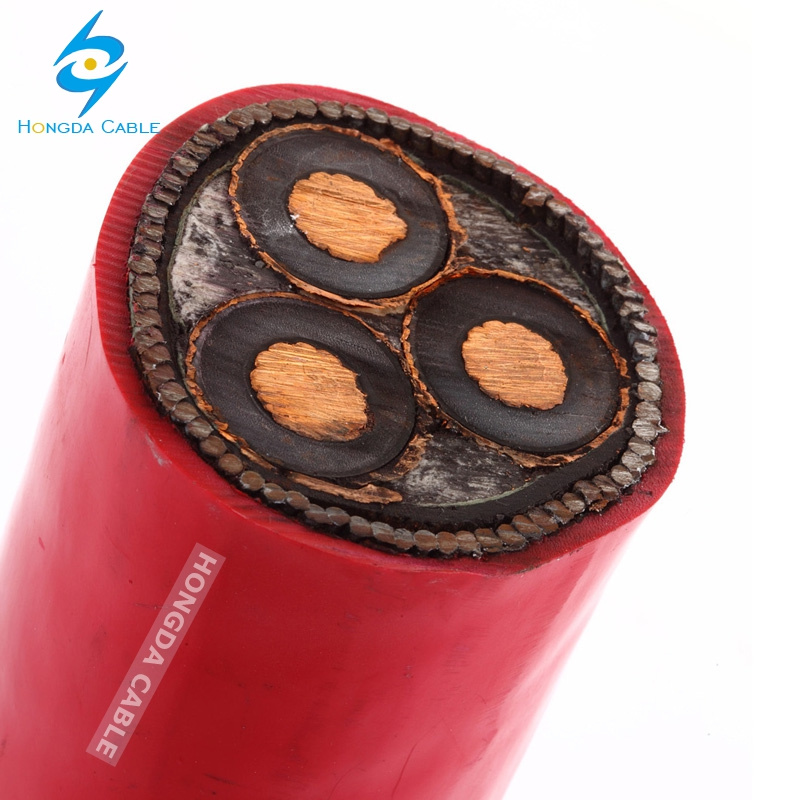

18/30kV N2XSER2Y MEDIUM VOLTAGE POWER CABLES - COPPER CONDUCTORApplication:For installation in the ground, indoors, cable trucking and outdoors, if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.
Note :
Conductor Shape35 - 300 sqmm supplied in compacted circular stranded (cm) conductor shape
Standard Packing35 - 300 sqmm will be suplied in wooden drum on available length
Length Tolerance per drum ± 2%

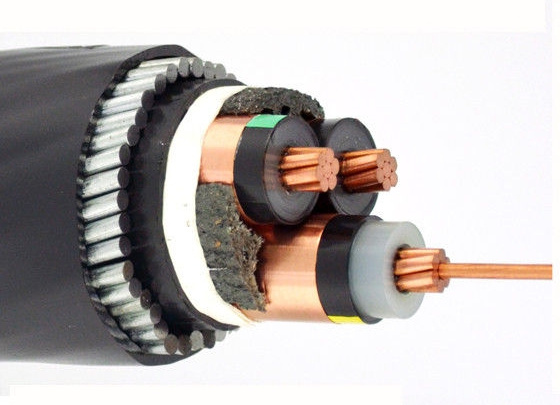

1. Cable construction| Conductor | Class 2 stranded copper conductor according to BS EN 60228 |
| Inner Semi-Conductive Layer | Semi-conductive material |
| Insulation | XLPE (Cross-Linked Polyethylene) |
| Outer Semi-Conductive Layer | Semi-conductive material |
| Screen | Copper Tape |
| Inner sheath | PVC |
| Armoured | Galvanized steel wire |
| Sheath | PE / PVC |
2. Dimensions| No. of Cores | Nominal Cross Sectional Area mm² | NOMINAL OVERALL
DIAMETER | Nominal Weight |
Conductor
mm² | Copper Wire Screen
mm² | mm | kg/km |
| 3 | 35 | RM/16 | 49 | 2600 |
| 3 | 50 | RM/16 | 51 | 2900 |
| 3 | 70 | RM/16 | 55 | 3350 |
| 3 | 95 | RM/16 | 58 | 4200 |
| 3 | 120 | RM/16 | 62 | 5050 |
| 3 | 150 | RM/25 | 66 | 6000 |
| 3 | 185 | RM/25 | 69 | 7200 |
| 3 | 240 | RM/25 | 75 | 9000 |
3. Current Carrying CapacityNO. OF
CORES | Nominal Cross Sectional Area | Current Carrying Capacity |
Conductor
mm² | Copper Wire Screen
mm | In Ground
Amps | In Air
Amps |
| 3 | 35 | RM/16 | 213 | 213 |
| 3 | 50 | RM/16 | 220 | 236 |
| 3 | 70 | RM/16 | 261 | 265 |
| 3 | 95 | RM/16 | 312 | 322 |
| 3 | 120 | RM/16 | 355 | 370 |
| 3 | 150 | RM/25 | 399 | 420 |
| 3 | 185 | RM/25 | 451 | 481 |
| 3 | 240 | RM/25 | 523 | 566 |
4. Related Products:NA2XS(FL)2Y Aluminium Conductor XLPE PE- 18/30 (36)kV Cable
NA2XS(FL)2Y Aluminium Conductor XLPE PE-12/20 (24)kV Cable
NA2XS(FL)2Y Aluminium conductor XLPE PE-6/10 (12)kV Cable
NA2XS(F)2Y Aluminium Conductor XLPE PE - 18/30k (36)kV Cable
NA2XS(F)2Y Aluminium Conductor XLPE PE - 12/20 (24)kV Cable
NA2XS(F)2Y Aluminium Conductor XLPE PE - 6/10 (12)kV Cable
NA2XS2Y Aluminium Conductor XLPE PE - 18/30k (36)kV Cable
NA2XS2Y Aluminium Conductor XLPE PE - 12/20 (24)kV Cable
NA2XS2Y Aluminium Conductor XLPE PE - 6/10 (12)kV Cable
N2XS(FL)2Y - 12/20 (24)kV Cable
N2XS(FL)2Y - 6/10 (12)kV Cable
N2XS(F)2Y - 18/30 (36)kV Cable
N2XS(F)2Y XLPE PE - 12/20 (24)kV Cable
N2XS(F)2Y XLPE PE - 6/10 (12)kV Cable
N2XS2Y XLPE PE - 18/30 (36)kV Cable
N2XS2Y XLPE PE - 12/20 (24)kV Cable
N2XS2Y XLPE PE - 6/10 (12)kV Cable
NA2XSY Aluminium Conductor XLPE PVC - 18/30 (36)kV Cable
NA2XSY Aluminium Conductor XLPE PVC - 12/20 (24)kV Cable
NA2XSY Aluminium Conductor XLPE PVC - 6/10 (12)kV Cable
N2XSEY XLPE PVC - 6/10 (12)kV Cable
N2XSY XLPE PVC - 18/30 (36)kV Cable
N2XSY XLPE PVC - 12/20 (24)kV Cable
N2XSY XLPE PVC - 6/10 (12)kV Cable
BS 6622 XLPE MDPE 6.35/11 (12)kV Cable
BS 6622 XLPE PVC 6.35/11 (12)kV Cable
BS 7835 XLPE LSZH 6.35/11 (12)kV
BS 7835 XLPE LSZH 19/33 (36)kV
BS 6622 XLPE PVC 19/33 (36)kV
