0.18~315kw High Efficiency Three Phase Induction Motor IE2

Name: 0.18~315kw High Efficiency Three Phase Induction Motor IE2
Brand: all-electronics-online.com
SKU: 690573761
Availability: InStock
Rating: 5 (81 reviews)

Price:	US $ 15-4650/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y2 Series
Insulation Class:	Class B/F/H
Motor Power:	0.18kw-315kw
Body:	Cast Iron Body
Application:	Power Tools
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Auto-induction Voltage-reduced Starting
Species:	Y2
Number Of Poles:	2/4/6/8/10
Certification:	Ce
Brand:	Dongfeng or OEM

Product Description

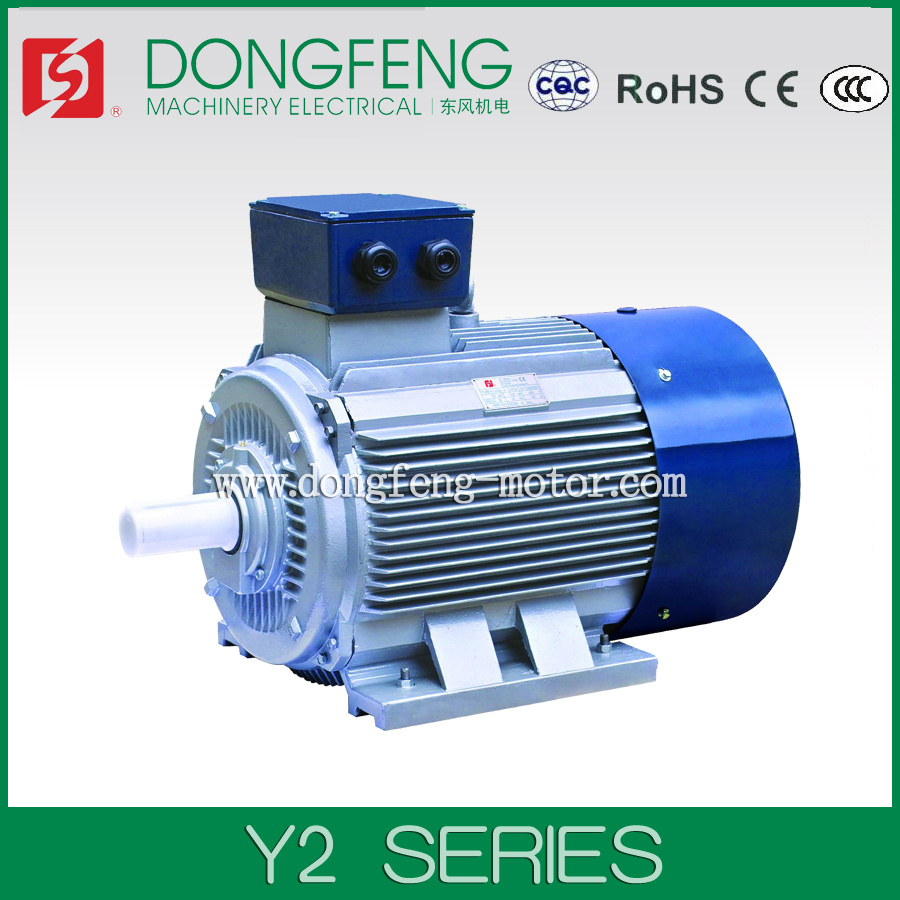

Y2 SERIES THREE PHASE AC MOTOR

Y2 Three phase induction motor, adopting the national unified design, has reached the international advanced level of 90's.It is newly designed in conformity with the relevant requirements of IEC standards.

Features: High efficiency, energy saving, fine operation performance, small vibration, low noise, long service life, high reliability, convenient maintenance, big breakaway torque.

Applications: Machine tools,blowers,water pumps,compressors,transporters, agricultural and food processing etc.

RANGE OF PERFORMANCE

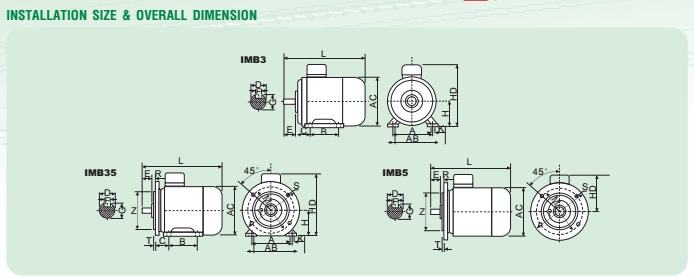

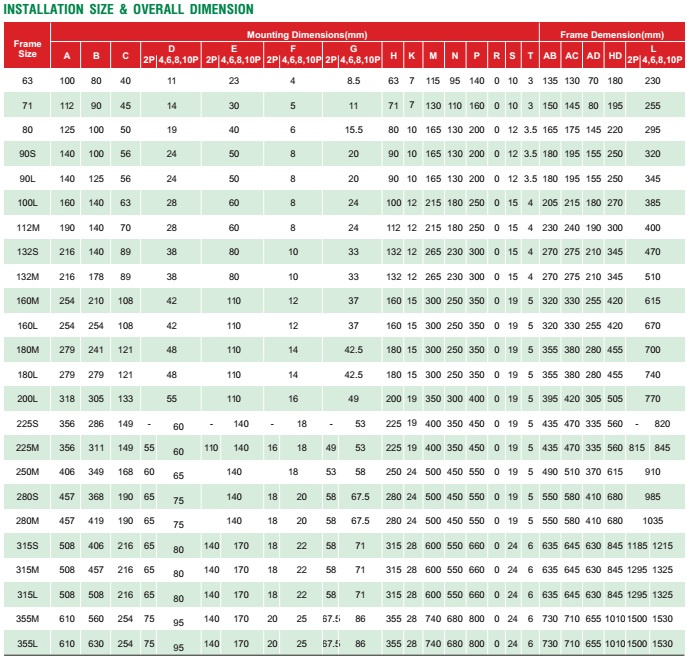

Frame Size: H63~H355
Rated Power Range: 0.18kW~ 315Kw

OPERATING CONDITIONS
Ambient temperature: -15 °C ≤ θ ≤ 40 °C
Above sea level: not exceed 1000m
Rated Voltage: 380V, 220~760V is available
Rated Frequency: 50HZ or 60HZ
Insulation Class: Class B/F/H
Protection Class: IP54/55/56
Duty: S1

TYPE	Output		Current (A)		Speed	Eff.	Power Factor	Ist/In	Tstart/Tn	Tmax/Tn
TYPE	KW	HP	380V	400V	r/min	%	Power Factor	Ist/In	Tstart/Tn	Tmax/Tn
Y2E1-631-2	0.18	0.25	0.53	0.50	2720	65	0.8	5.5	2.2	2.2
Y2E1-632-2	0.25	0.34	0.69	0.66	2720	68	0.81	6.5	2.2	2.2
Y2E1-711-2	0.37	0.5	0.99	0.94	2740	70	0.81	7	2.2	2.2
Y2E1-712-2	0.55	0.75	1.40	1.33	2740	73	0.82	7	2.2	2.3
Y2E1-801-2	0.75	1	1.83	1.74	2830	75	0.83	7.5	2.2	2.3
Y2E1-802-2	1.1	1.5	2.58	2.45	2830	77	0.84	7.9	2.2	2.3
Y2E1-90S-2	1.5	2	3.43	3.26	2840	79	0.84	7.5	2.2	2.3
Y2E1-90L-2	2.2	3	4.85	4.61	2840	81	0.85	7.5	2.2	2.3
Y2E1-100L-2	3	4	6.31	6.00	2870	83	0.87	7.5	2.2	2.3
Y2E1-112M-2	4	5.5	8.12	7.72	2880	85	0.88	7.5	2.2	2.3
Y2E1-132S1-2	5.5	7.5	11.04	10.49	2900	86	0.88	7.5	2.2	2.3
Y2E1-132S2-2	7.5	10	14.88	14.14	2900	87	0.88	7.5	2	2.3
Y2E1-160M1-2	11	15	21.34	20.27	2940	88	0.89	7.5	2	2.3
Y2E1-160M2-2	15	20	28.77	27.33	2940	89	0.89	7.5	2	2.3
Y2E1-160L-2	18.5	25	34.70	32.97	2940	90	0.9	7.5	2	2.3
Y2E1-180M-2	22	30	41.27	39.20	2940	90	0.9	7.5	2	2.2
Y2E1-200L1-2	30	40	55.53	52.75	2950	91.2	0.9	7.5	2	2.2
Y2E1-200L2-2	37	50	67.89	64.50	2950	92	0.9	7.5	2	2.2
Y2E1-225M-2	45	60	82.13	78.02	2970	92.3	0.9	7.5	2	2.2
Y2E1-250M-2	55	75	99.84	94.85	2970	92.5	0.9	7.5	2	2.2
Y2E1-280S-2	75	100	134.98	128.23	2970	93	0.9	7.5	2	2.2
Y2E1-280M-2	90	125	161.63	153.55	2980	93.8	0.9	7.5	2	2.2
Y2E1-315S-2	110	150	194.35	184.63	2980	94	0.91	7.1	1.8	2.2
Y2E1-315M-2	132	180	232.97	221.32	2980	94.5	0.91	7.1	1.8	2.2
Y2E1-315L1-2	160	220	278.73	264.79	2980	94.6	0.92	7.1	1.8	2.2
Y2E1-315L2-2	200	270	346.58	329.25	2980	94.8	0.92	7.1	1.8	2.2
Y2E1-355M-2	250	340	431.87	410.27	2980	95.3	0.92	7.1	1.6	2.2
Y2E1-355L-2	315	420	544.15	516.94	2980	95.6	0.92	7.1	1.6	2.2
Y2E1-631-4	0.12	0.16	0.44	0.42	1310	57	0.72	5.2	2.4	2.2
Y2E1-632-4	0.18	0.25	0.62	0.59	1310	60	0.73	5.2	2.4	2.2
Y2E1-711-4	0.25	0.34	0.79	0.75	1330	65	0.74	5.2	2.4	2.2
Y2E1-712-4	0.37	0.5	1.13	1.08	1330	67	0.74	5.2	2.4	2.2
Y2E1-801-4	0.55	0.75	1.55	1.47	1440	71	0.76	5.7	2.4	2.3
Y2E1-802-4	0.75	1	2.03	1.93	1440	73	0.77	6	2.3	2.3
Y2E1-90S-4	1.1	1.5	2.89	2.75	1400	75	0.77	6	2.3	2.3
Y2E1-90L-4	1.5	2	3.70	3.51	1400	78	0.79	6	2.3	2.3
Y2E1-100L1-4	2.2	3	5.16	4.90	1430	80	0.81	7	2.3	2.3
Y2E1-100L2-4	3	4	6.78	6.44	1430	82	0.82	7	2.3	2.3
Y2E1-112M-4	4	5.5	8.82	8.38	1435	84	0.82	7	2.3	2.3
Y2E1-132S-4	5.5	7.5	11.84	11.25	1440	85	0.83	7	2.3	2.3
Y2E1-132M-4	7.5	10	15.59	14.81	1440	87	0.84	7	2.3	2.3
Y2E1-160M-4	11	15	22.61	21.48	1470	88	0.84	7	2.2	2.3
Y2E1-160L-4	15	20	30.13	28.62	1470	89	0.85	7	2.2	2.3
Y2-180M-4	18.5	25	36.11	34.31	1460	90.5	0.86	7	2.2	2.3
Y2-180L-4	22	30	42.71	40.58	1460	91	0.86	7.5	2.2	2.3
Y2-200L-4	30	40	57.61	54.73	1470	92	0.86	7.5	2.2	2.3
Y2-225S-4	37	50	69.85	66.36	1470	92.5	0.87	7.5	2.2	2.3
Y2-225M-4	45	60	84.68	80.45	1470	92.8	0.87	7.5	2.2	2.3
Y2-250M-4	55	75	103.28	98.12	1470	93	0.87	7.2	2.2	2.3
Y2-280S-4	75	100	139.64	132.65	1480	93.8	0.87	7.2	2.2	2.3
Y2-280M-4	90	125	166.85	158.51	1480	94.2	0.87	7.2	2.2	2.3
Y2-315S-4	110	150	200.97	190.92	1480	94.5	0.88	7.2	2.2	2.3
Y2-315M-4	132	180	240.40	228.38	1485	94.8	0.88	7.2	2.1	2.3
Y2-315L1-4	160	220	291.09	276.54	1485	94.9	0.88	6.9	2.1	2.3
Y2-315L2-4	200	270	359.40	341.43	1485	95	0.89	6.9	2.1	2.3
Y2-355M-4	250	340	442.85	420.71	1490	95.3	0.9	6.9	2.1	2.2
Y2-355L-4	315	420	556.24	528.43	1485	95.6	0.9	6.9	2.1	2.2
Y2E1-711-6	0.18	0.25	0.74	0.70	850	56	0.66	4	1.9	2
Y2E1-712-6	0.25	0.34	0.95	0.90	850	59	0.68	4	1.9	2
Y2E1-801-6	0.37	0.5	1.30	1.23	890	62	0.7	4.7	1.9	2
Y2E1-802-6	0.55	0.75	1.79	1.70	890	65	0.72	4.7	1.9	2
Y2E1-90S-6	0.75	1	2.18	2.07	910	72.7	0.72	5.5	2	2.1
Y2E1-90L-6	1.1	1.5	3.01	2.86	910	76	0.73	5.5	2	2.1
Y2E1-100L-6	1.5	2	3.85	3.65	940	79	0.75	5.5	2	2.1
Y2E1-112M-6	2.2	3	5.43	5.16	940	81	0.76	6.5	2	2.1
Y2E1-132S-6	3	4	7.31	6.95	960	82	0.76	6.5	2.1	2.1
Y2E1-132M1-6	4	5.5	9.52	9.04	960	84	0.76	6.5	2.1	2.1
Y2E1-132M2-6	5.5	7.5	12.62	11.99	960	86	0.77	6.5	2.1	2.1
Y2E1-160M-6	7.5	10	16.91	16.07	970	87.5	0.77	6.5	2	2.1
Y2E1-160L-6	11	15	23.18	22.02	970	89	0.81	6.5	2	2.1
Y2E1-180L-6	15	20	31.26	29.70	980	90	0.81	6.5	2.1	2
Y2E1-200L1-6	18.5	25	37.63	35.75	980	90	0.83	6.5	2.1	2
Y2E1-200L2-6	22	30	43.25	41.09	980	92	0.84	7	2.1	2
Y2E1-225M-6	30	40	57.30	54.43	980	92.5	0.86	7	2.1	2
Y2E1-250M-6	37	50	70.44	66.92	980	92.8	0.86	7	2	2
Y2E1-280S-6	45	60	85.03	80.78	990	93.5	0.86	7	2	2
Y2E1-280M-6	55	75	103.59	98.41	990	93.8	0.86	7	2	2
Y2E1-315S-6	75	100	139.34	132.37	990	94	0.87	6.7	2	2
Y2E1-315M-6	90	125	168.79	160.35	990	94.2	0.86	6.7	2	2
Y2E1-315L1-6	110	150	200.97	190.92	990	94.5	0.88	6.7	2	2
Y2E1-315L2-6	132	180	240.66	228.62	990	94.7	0.88	6.7	1.9	2
Y2E1-355M1-6	160	220	292.01	277.41	990	94.6	0.88	6.7	1.9	2
Y2E1-355M2-6	200	270	363.86	345.67	990	94.9	0.88	6.7	1.9	2.1

OEM/ODM
WE WILL MEET YOUR REQUIREMENTS!

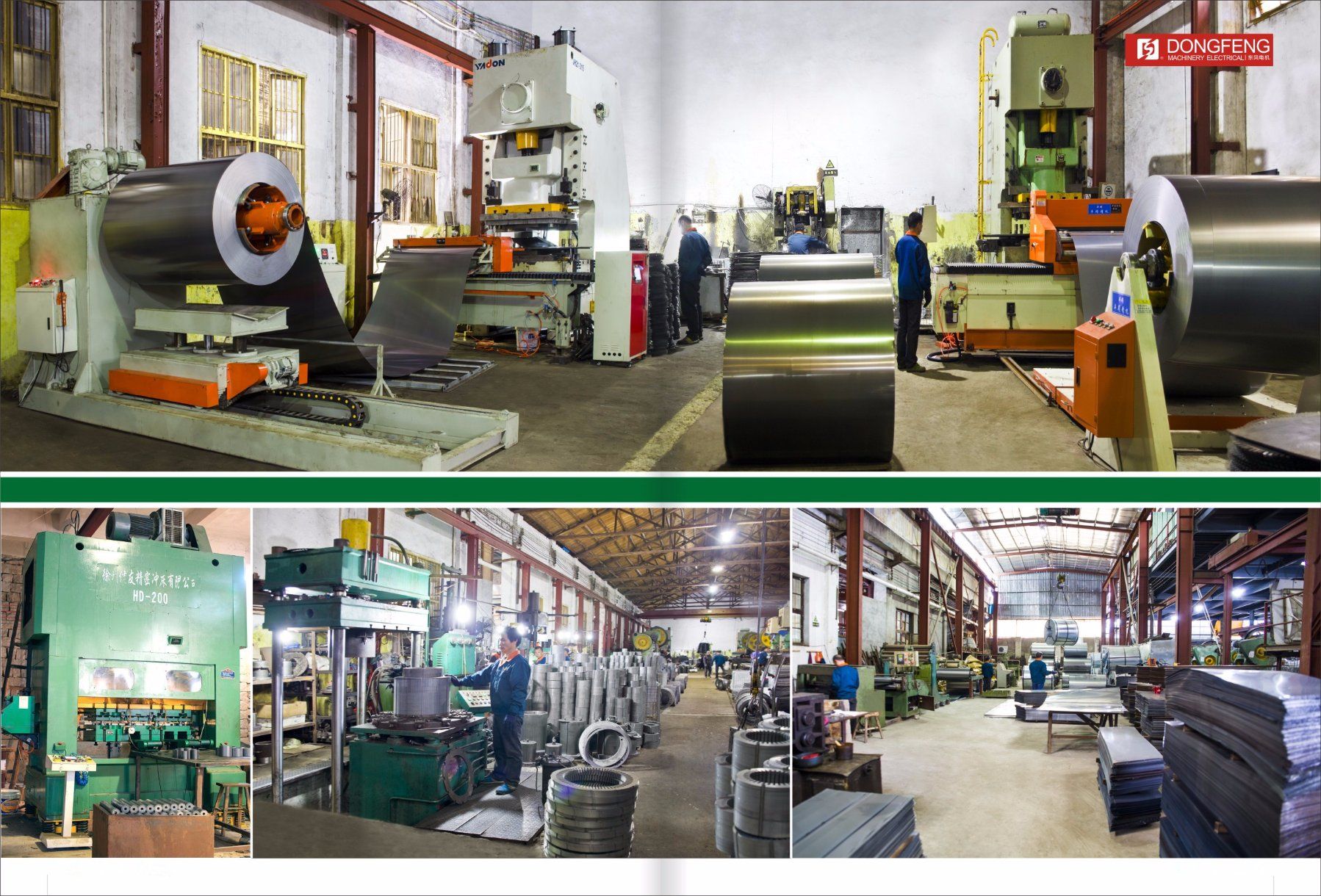

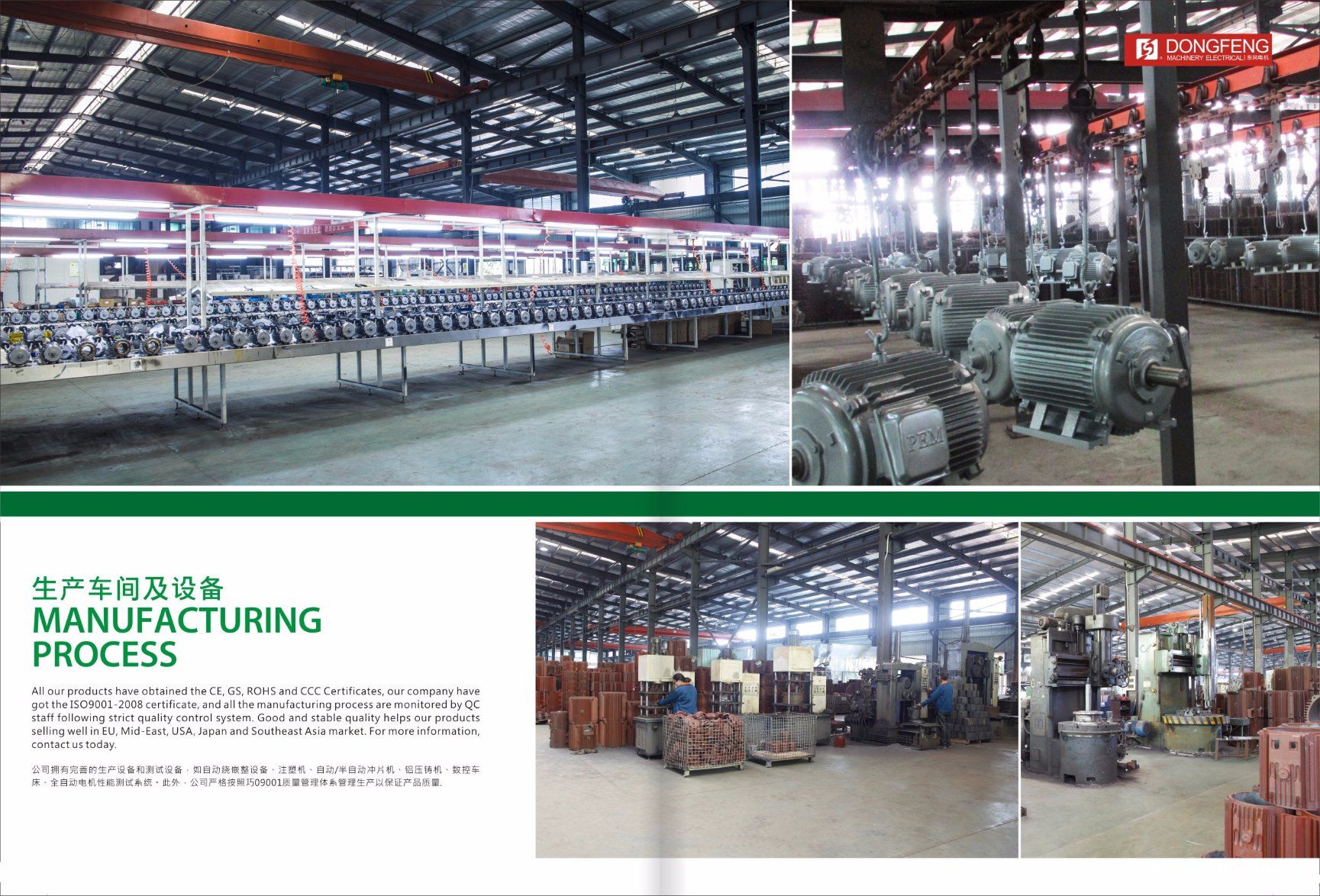

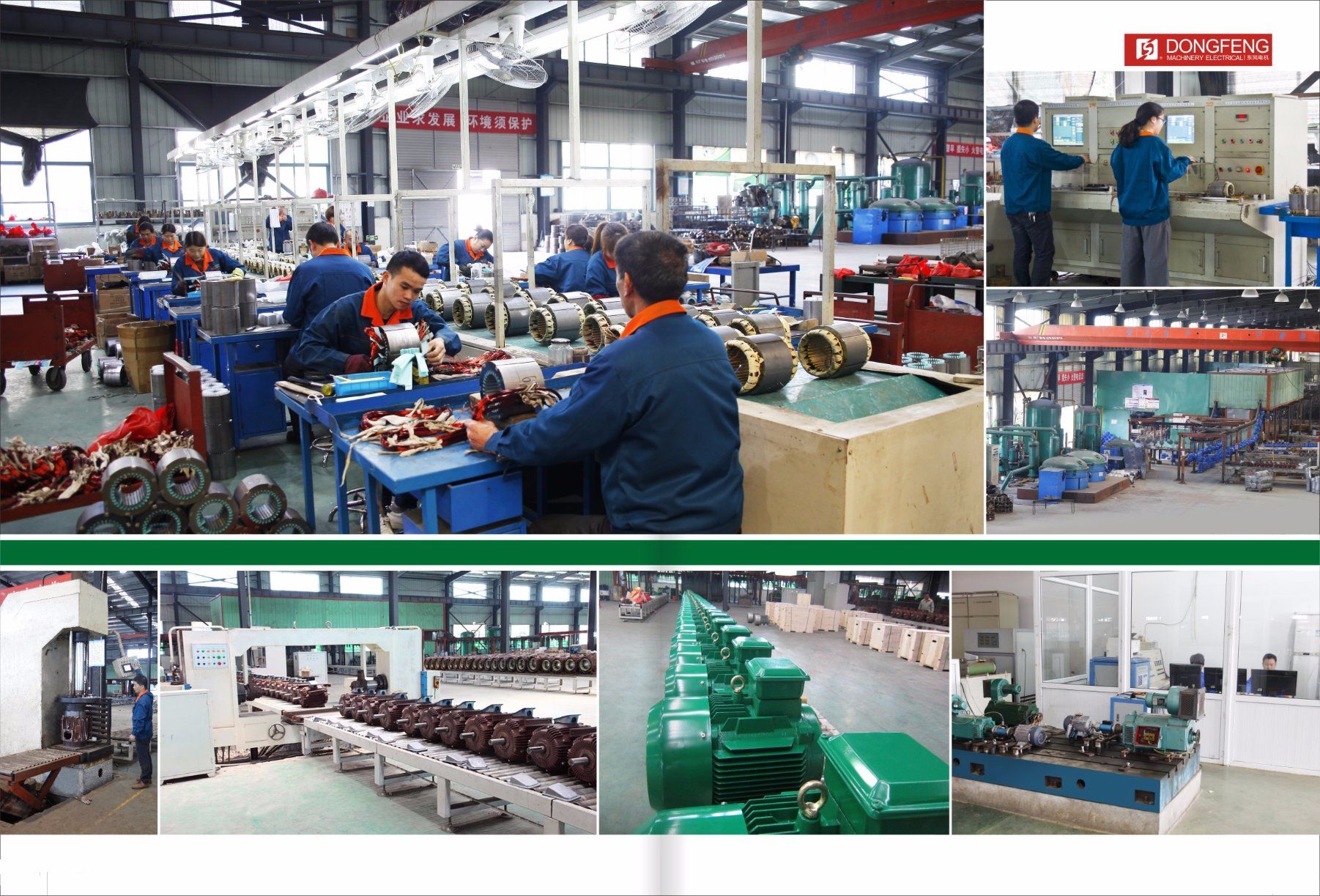

Since 1993, Fujian Dongfeng Machinery Electrical Liability Co., Ltd., as a professional electric motor manufacturer, has won a good reputation in the domestic and international market. We specialize in more than 20 series of electric motors based on the IEC standard, GOST standard and the IE1, IE2, IE3 efficiency request. By complying the strict quality control system, we have obtained the I S O 9 0 0 1 certificate, CE, CCC, RoHS certificates and etc. In order to improve the quality of our products and better control the cost in manufacturing, we produce the main spare parts of motors by ourselves, such as motor housing, lamination sheets, stator and rotor sets. And these parts are for exporting as well. Meanwhile, we have established a strong team with professional managing and marketing members, cooperating with experienced technicians to ensure the effective production and services (including OEM and ODM). With the efforts of our team, our monthly output has increase to 20, 000PCS at present. We never expect one-time business; We always look for the stable and long-term partnerships based on the mutual trust, good understanding and the continual support in each other. For more information, welcome to contact us, we will make every effort to be your best partner!
