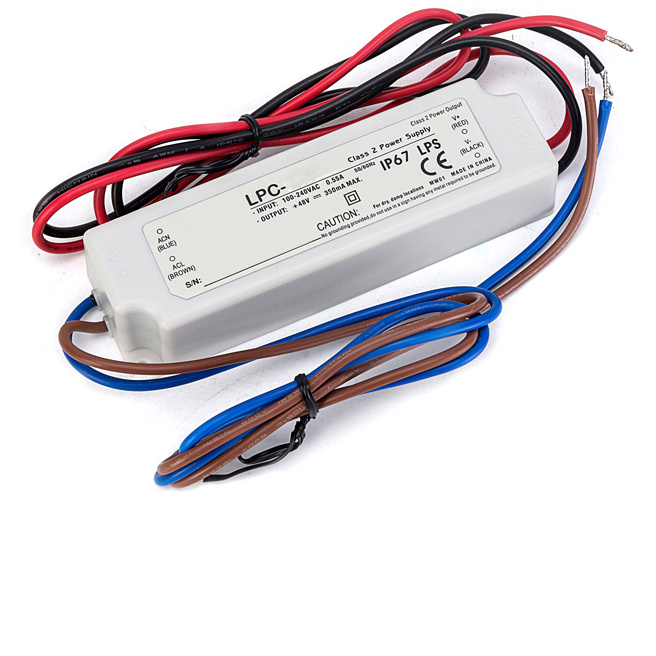

18-35W Single Output LED Switching Power Supply (LPC series)

Prod Model:	WSPLPC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof:	IP67
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	OEM

Product Description

18-35W  Single output LED switching power supply(LPC Series)
*LPLC-18: Only 90~132VAC input
*LPHC-18 :Only 180~264VAC input
*LPC-20/35/60: 90~264VAC input
*All sealing glue,internal accord with IP67 rating
*Withstand 300VAC surge input for 5seconds (only LPC-20/35)
*Class 2 isolation, no F.G
*Natural cooling
*Protection function: short circuit,over current,over voltage,over temperature(LPC-20/35 outside)
*Constant current design (constant current mode)
*Class 2 power supply, by LPS(limited power source)test
*100%full load ageing test
*Low cost,high reliability
*Applicable to the adornment of the LED as light source and building lighting, stage lighting and theatical lighting, LED electronic display screen.
*2 years warranty

Series No.

Model No.

Specification

AC input range

AC inrush Current(Max.)

Over voltage protection

Withstand Voltage

Working Temperature

EMC standards

Connector input/output

Output

Voltage tolerance

Ripple&noise

Efficiency

Size(mm)

LPLC-18 (constant current mode)

LPLC-18-350

90~132VAC

Cold start, 40A/115VAC

105%~135% Rated output voltage

I/P-O/P:3KVAC

-30ºC~+70ºC

FCC part15 classA(LPLC-18),EN55022 classA,EN61000-3-2 classA, EN61000-4-2,3,4,5,6,8,11

UL,18AGWx2C(30cm)

6~48V,350mA

±8%

300mV

82.0%

140x32x22

LPLC-18-700

6~25V, 700mA

±8%

250mV

80.0%

LPHC-18 (constant current mode)

LPHC-18-350

180~264VAC

Cold start, 50A/230VAC

105%~135% Rated output voltage

I/P-O/P:3KVAC

-30ºC~+70ºC

FCC part15 classA(LPLC-18),EN55022 classA,EN61000-3-2 classA, EN61000-4-2,3,4,5,6,8,11

UL,18AGWx2C(30cm)

6~48V,350mA

±8%

300mV

82.0%

140x32x22

LPHC-18-700

6~25V, 700mA

±8%

250mV

80.0%

LPC-20 (constant current mode)

LPC-20-350

90~264VAC

Cold start, 70A/230VAC

105%~135% Rated output voltage

I/P-O/P:3KVAC

-30ºC~+70ºC

EN55022 class B,EN61000-3-2Class C,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11

UL,18AGWx2C(60cm)

9~48V,350mA

±5%

200mV

83.0%

118x35x26

LPC-20-700

9~30V, 700mA

±5%

200mV

83.0%

LPC-35 (constant current mode)

LPC-35-700

90~264VAC

Cold start, 55A/230VAC

105%~135% Rated output voltage

I/P-O/P:3KVAC

-30ºC~+70ºC

EN55022 class B,EN61000-3-2Class C,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11

Input: UL,18AGWx2C(60cm);Output:UL,16AGWx2C(60cm)

9~48V,700mA

±5%

200mV

85.0%

148x40x30

LPC-35-1050

9~30V, 1050mA

±5%

200mV

85.0%

LPC-35-1400

9~24V,1400mA

±5%

200mV

85.0%

LPC-60 (constant current mode)

LPC-60-1050

90~264VAC

Cold start, 60A/230VAC

105%~135% Rated output voltage

I/P-O/P:3KVAC

-30ºC~+70ºC

EN55022 class B,EN61000-3-2Class C,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11

Input: UL,18AGWx2C(60cm);Output:UL,16AGWx2C(60cm)

9~48V,1050mA

±5%

200mV

87.0%

162.5x42.5x32

LPC-60-1400

9~42V, 1400mA

±5%

200mV

85.0%

LPC-60-1750

9~34V,1750mA

±5%

200mV

87.0%
