180-250VAC Rainproof 1000W 24V High Power LED Transformer

Name: 180-250VAC Rainproof 1000W 24V High Power LED Transformer
Brand: all-electronics-online.com
SKU: 728189325
Availability: InStock
Rating: 4.8 (117 reviews)

Price:	US $ 110-117/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CV-24E1K-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Voltage:	24V
Output Current:	42A
Use:	for LED Light Box,LED Strips,LED Modules...
Operating Temperature:	-25~40 Degree
IP Rating:	IP 23
Cooling:	Built-in Electric Fan
Dimensions(LWH):	428350107 mm
Weight(Kg):	7.2
Packing Information:	1 PCS/ Carton, G.W 8 Kg
Installation:	Outdoor Rainproof
Usage:	Industry
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

1000W 24V 180-250VAC Rainproof PWM Led Transformer

1.Brief Introduction
Designed for large size outdoor signage, decoration or lighting projectss
-Unique aluminum chimney heat sink, best heat dissipation performance
-Designed for direct outdoor installation, no extra external box or cover needed.
-High output power up to 800W
-Optional built in power switch, timer or power consumption meter offering convenient maintenance features.

2.Technical Specification

Model no.	CV-24E1KB
Input voltage	180-250 VAC 50/60 Hz
Max. power	1000 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	>83%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	42A Max
Withstand voltage	I/P~O/P:3kVAC, 1 minute
Operating temperature	-25~40 degree
Installation	Outdoor rainproof
IP rating	IP 23
Cooling	Built-in electric fan
Connection input/output	Input:terminal Output: terminal(six)

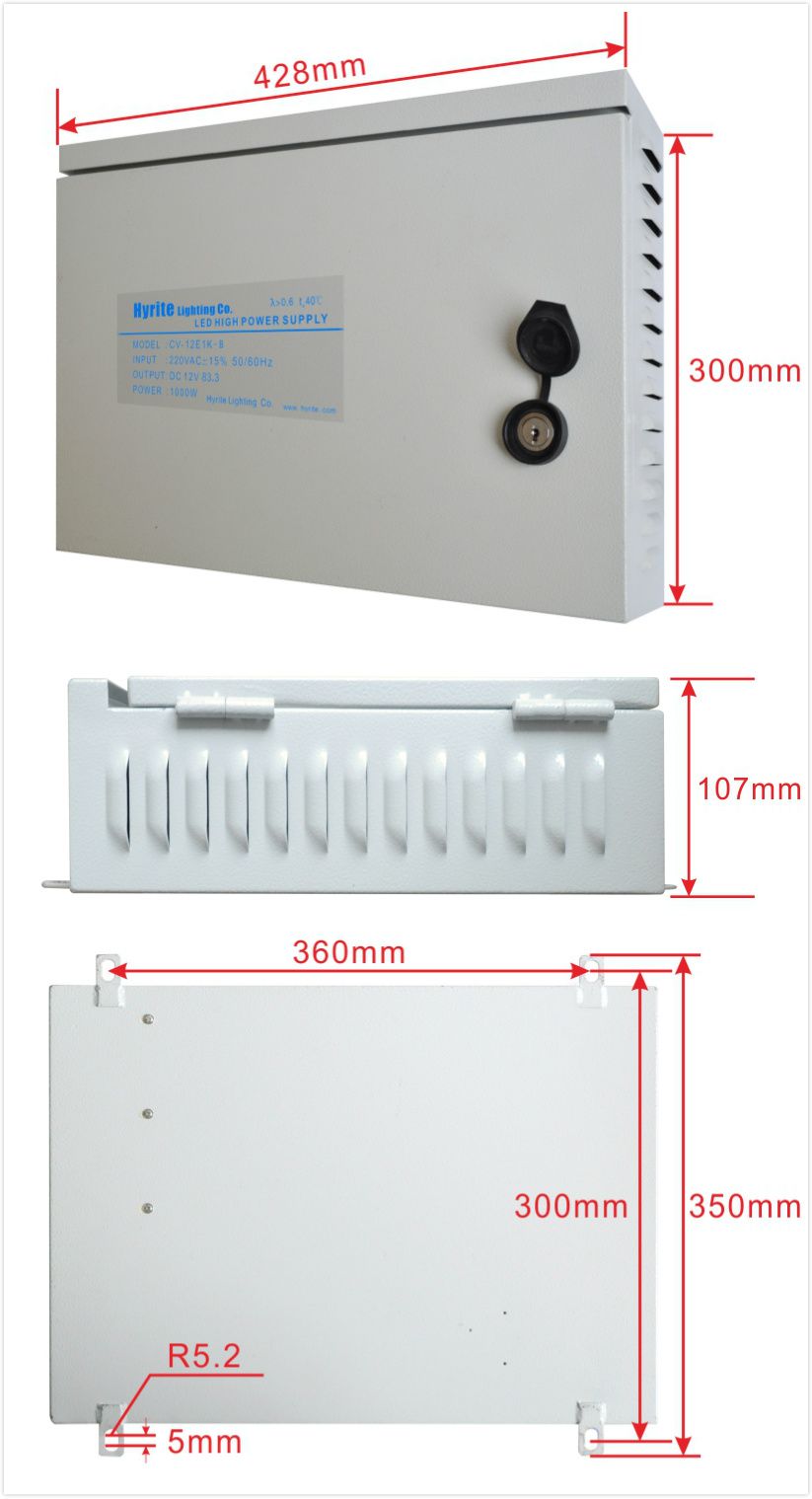

Dimensions(LWH)	428350107 mm
Weight(kg)	7.2000
Packing information	1 Pcs/ Carton, G.W 8 KG

3.Detailed Pictures

4.Production line and Application

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
