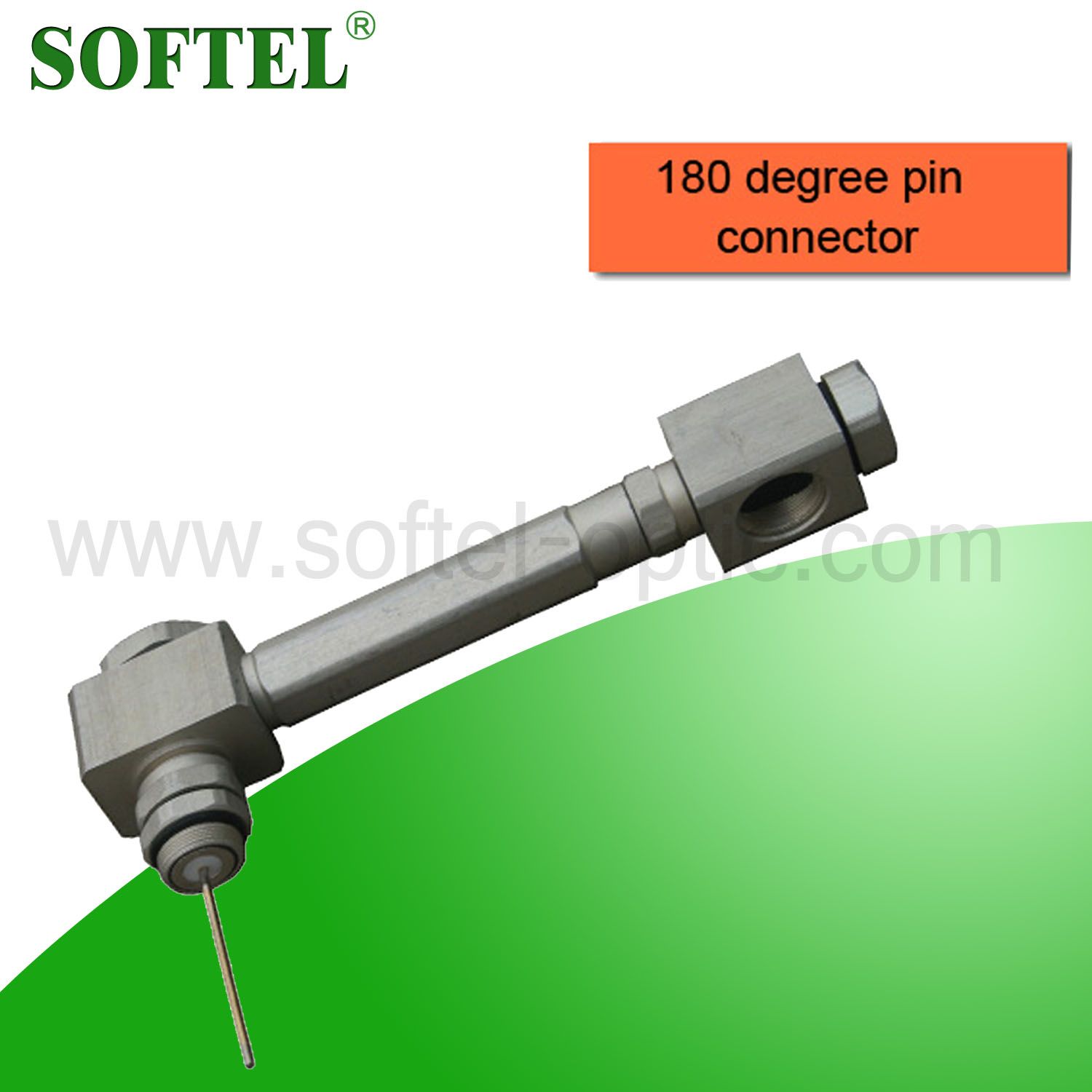

180 Degree Pin Connector for Trunk Cable

Name: 180 Degree Pin Connector for Trunk Cable
Brand: all-electronics-online.com
SKU: 685568482
Availability: InStock
Rating: 4.6 (76 reviews)

Price:	US $ 3.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SFZ211
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Impedance:	75ohm
Frequency Range:	DC~1GHz
Applicable Standard:	IEC 60169-24
Application:	Trunk Cable
Inner Conductor:	Brass, Silver Plating
Shell:	Aluminium
Temp.Range:	-25~+60°c
MOQ:	500 Pieces
Delivery:	About 7 Days
Sample:	Free
Type:	Trunk Cable Connector
Coupling Mechanism:	Trunk Cable Connector

Product Description

Aluminium Coaxial Cable P3500,QR500 Trunk Connector

Products'details:

Characteristic:

1. 180 degree adapters are the perfect accessory for use to manage splicing configurations in tight areas

2. Wide bandwidth for use in broadband systems

3. Standard pin length alcommodates all amplifer and multitap mating requirements

4. High return loss for excellent digital signal performance

5 .Solid construction and intergral sleeve provides optimum RG shielding

6 .High retention center conductor seizure mechanism

7. Superior power capability provides a minium of 20 Amps current capacity on all connectors and adapters

8. O-ring sealed ,watertight

Summary :

Adapters are essential components to configure equipment for aerial and underground applications, and are used to change the direction of the cable where space is limited or where tight bends are required. Our adapters allow room to economize the enclosures installed on municipal and customer properties. They eliminate the need for excess splicing in system rebuilds and reduce the number of cables damaged through tight bending radiuses and other installation challenges.

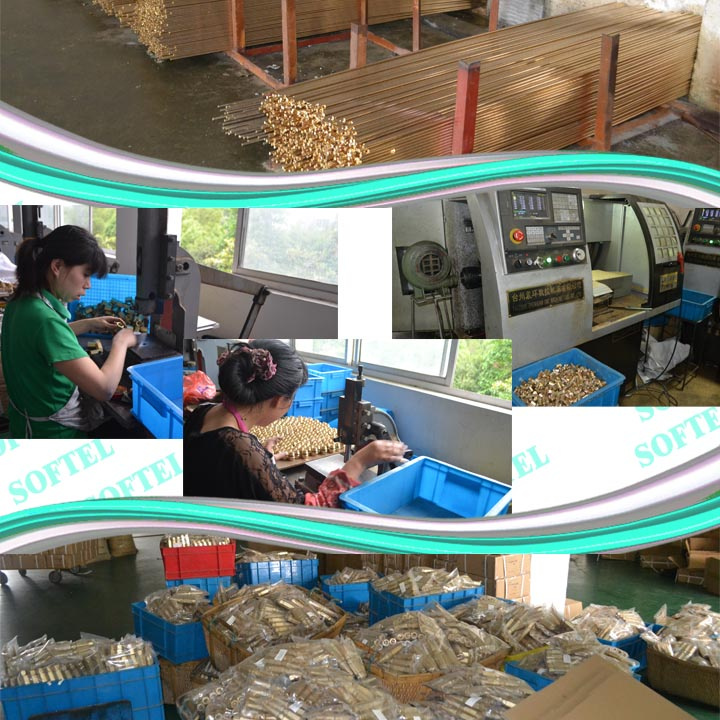

Workshop:

Our Teams:

Connector typeconnetc	180 Degree Pin Type Connector	Vibration	100m/s2 (10~500Hz)
Frequency Range	DC~1GHz	Durability(mating)	≥500(cycles)
Impedance	75Ω	Temp.range	-25~+60°C
Insertion Loss	< 0.3dB	Material	Shell : Aluminium
Power Capacity	> 20 A		Inner conductor: Brass, silver plating
Conductor resistance	Internal ≤ 10 mΩ		Inner conductor: Brass, silver plating
Conductor resistance	External ≤ 5 mΩ		Insulator: Plastic
Insulating resistance	≥ 1000 MΩ @DC500V		O Ring: Silicon Rubber
Withstanding voltage	170V max	Applicable standard	IEC 60169-24

Hangzhou Softel Optic Co., Ltd. (Brand: SOFTEL) was established in 2006, which Located in the HangZhou Hi-Tech Development Zone. Taking advantage of the modern broadcast and optic fiber communication technology, we are specializing in R&D of CATV system equipment, and leading manufacturer of HFC broadband Optic Transmission equipment with strong R&D capability in this field.

We have more than 100 staff in which 10% of senior technicians. It has more than 1, 000 square meters standards production assembling line, we have strict QC procedure, each unit of our products will go through 3 layer QC procedure, material checking before production, stability and performance testing after production, packing checking before delivery.

Currently, we supplying to numerous agents, integrated dealers and equipment producers all over the world, most of our products move to South America, Russia and north European countries.

Through keen international business competition in good faith, all of our staffs feel big accomplishment & work under heavy responsibility. In addition, we are much proud of providing our invaluable customers with our high quality, high reliability, high efficiency, competitive products.
