1800W 2 Channel Professional Power Amplifier From China (FP9000)
| Price: |
US $ 300-500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
FP9000 |
| Item: |
1800W 2 Channel Switchig DJ Amplifier From C |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Channel: |
2 |
| Rated Power: |
1800W |
| Certificate: |
ISO9001/RoHS/CCC/Ce/FCC/SGS |
| Frequency Response: |
20 Hz - 34 kHz |
| S/Nor: |
>112 Dba |
| Mpedance: |
20kΩ/10kΩ |
| Warrently: |
3 Years |
| Delivery Detail: |
Approx 3-5days After We Received The Deposit |
| Type: |
Professional Amplifier |
| Usage: |
Hi-Fi ,KTV .Stage,etc |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Element Number: |
Push-Pull Amplifier |
| Sound Channel: |
2 |
| Output Number: |
2.0 |
| Voltage: |
110V-240V |
| Conductive Mode: |
Td |
Product Description
1800W 2 Channel Professional Power Amplifier From China(FP9000)
Feature of Best quality professional power amplifier for line array speaker (FP14000):
1.The series is a new, high efficiency and high power switching power amplifier with good quality performance
2.Second-generation Class TD circuit topology, maintaining a pure analog amplifier style
3.Using third-generation voltage switching power supply, instant communication of voltage fluctuations can be maintained stable and strong power output
4.Selection of high-quality adjustable potentiometer, minimize the connection between the wire and the interface module.
5.Power tube connected directly to the heat sink to reduce the resistance of the power tube
6.Using SMD chip technology, performance and stability
The details as follow:
| ITEM | FP9000 | FP14000 | FP6000Q | FP10000Q |
| Output Power | 20-20kHz, 1W with 1 khz |
| Rated Power 8ohms Stereo | 1800WX2 | 2350WX2 | 625WX4 | 1350WX4 |
| Rated Power 4ohms Stereo | 3000WX2 | 4400WX2 | 1250WX4 | 2100WX4 |
| Bridge Power 8ohms | 6000W | 8800W | 2500WX2 | 4200WX2 |
| Bridge Power 4ohms | 9000W | 14000W | 3000WX2 | 5000WX2 |
| Frequency Response | 20 Hz - 34 kHz |
| THD 20 Hz - 20 kHz for 1 W | <0.1% |
| Signal-to-Noise Ratio | >112 dBA |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |
| Input Connectors (per channel) | 3-pin XLR, electronically balanced |
| Output Connectors (per channel) | Binding Posts 2-pole |
| Class | TD |
| TourClass Protection | ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient,
current inrush, sub/ultrasonic input |
| Operating voltage, 230 V / 115 V nominal | 130-265 V / 65-135 V |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
| Input impedance | 20 kOhm |
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB |
| Dimensions (W*H*D) | 483*88*396mm |
| Packing dimension | 560*180*500mm |
| Net weight(kg) | 12 |
| Gross weight(kg) | 15 |
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.

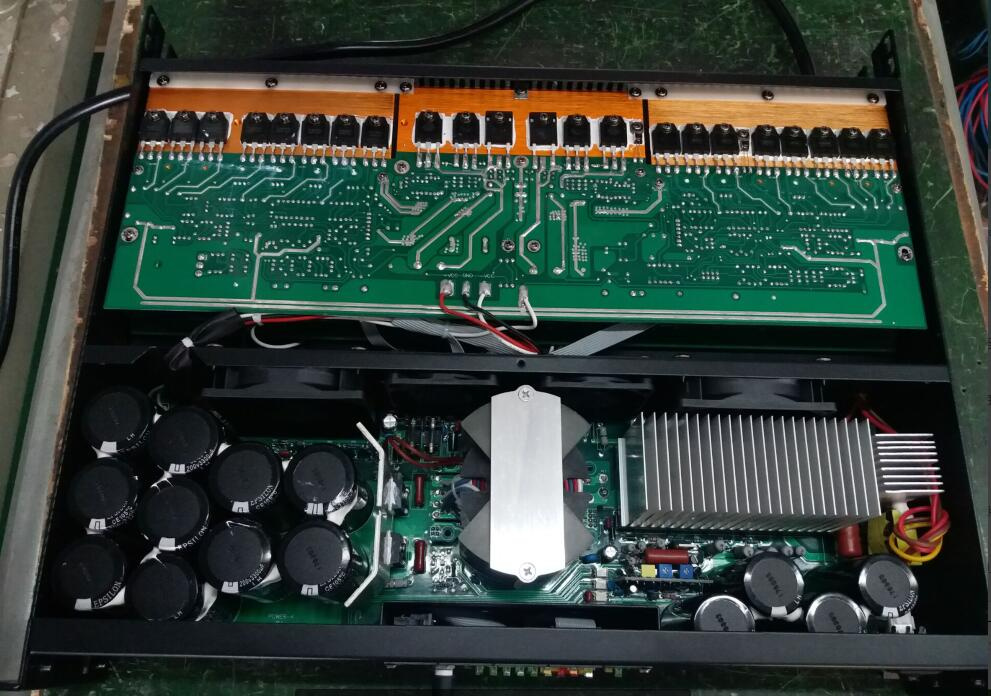

To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
2017 Prolight + Sound Guangzhou
Our booth is C22 2.1.
Address: Area A, China Import & Export Fair Complex. No. 380, Yuejiang Zhong Road, Guangzhou, China.
Time is 22th~25th February, 2017
