| Prod Model: |
CNM330 |
| Power Factor: |
1 |
| Frequency: |
50Hz/60Hz (Settable) |
| Current Crest Ratio: |
3:1 |
| Communication Ports: |
RS232,RS485,Dry Contact, Snmp Card, Epo, Generator |
| Input Voltage: |
380V/400V/415V |
| Protection Level: |
IP20 |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Consnant |
Product Description
± 240VDC Batt. Modular UPS System With Full Load PF. > 0.99 Strong Self - test
Product Information:

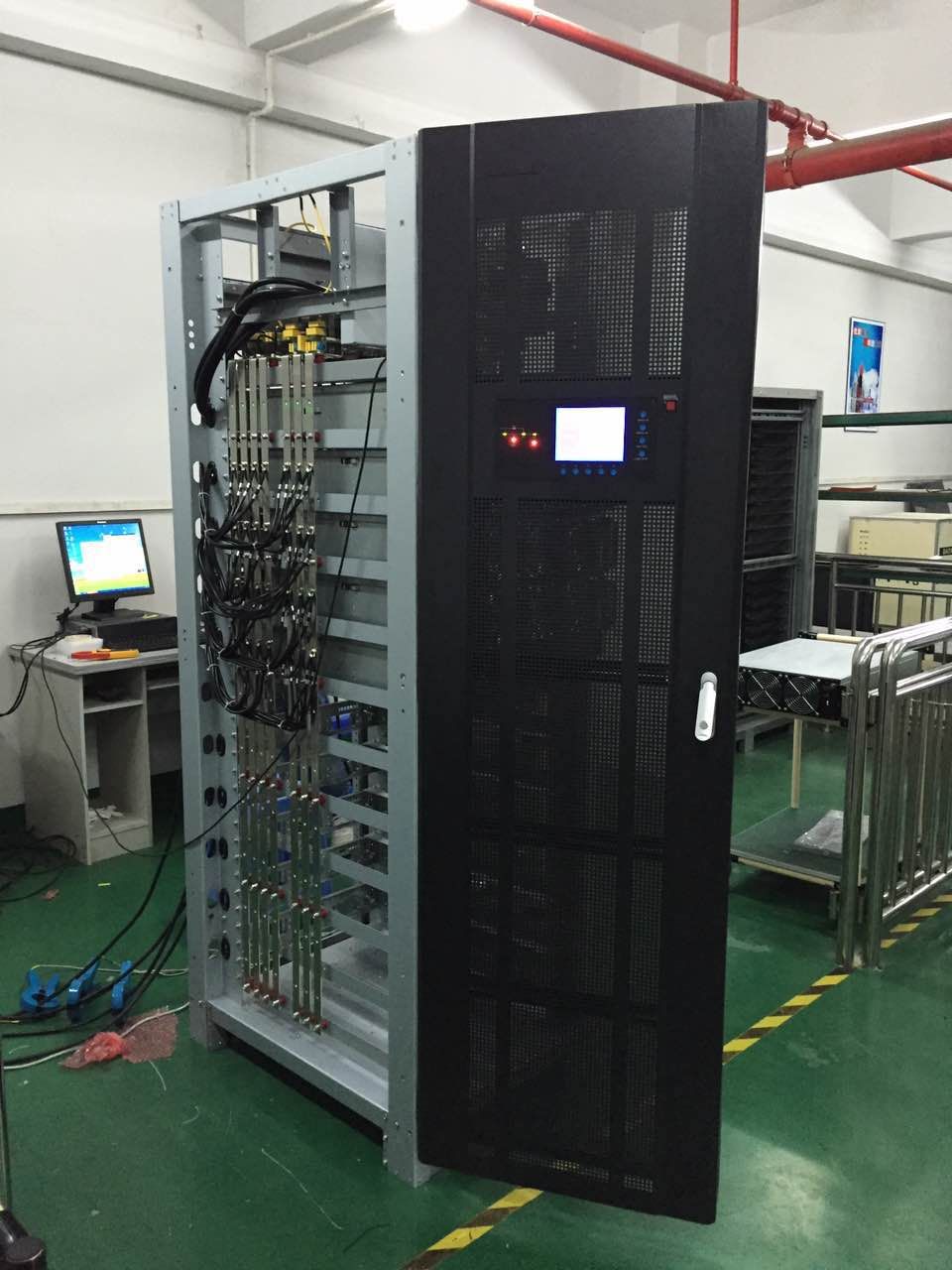

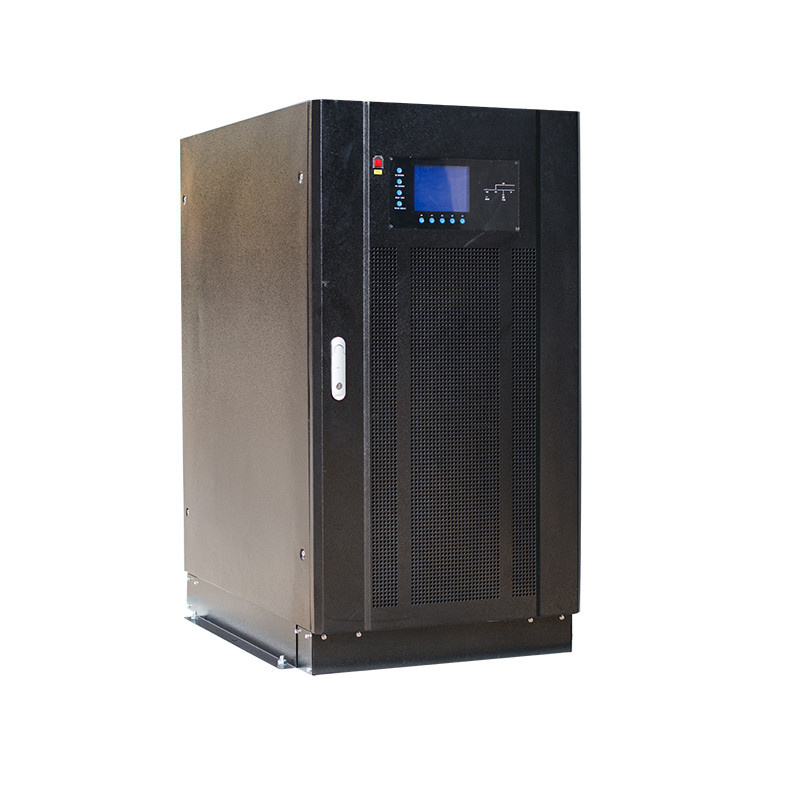

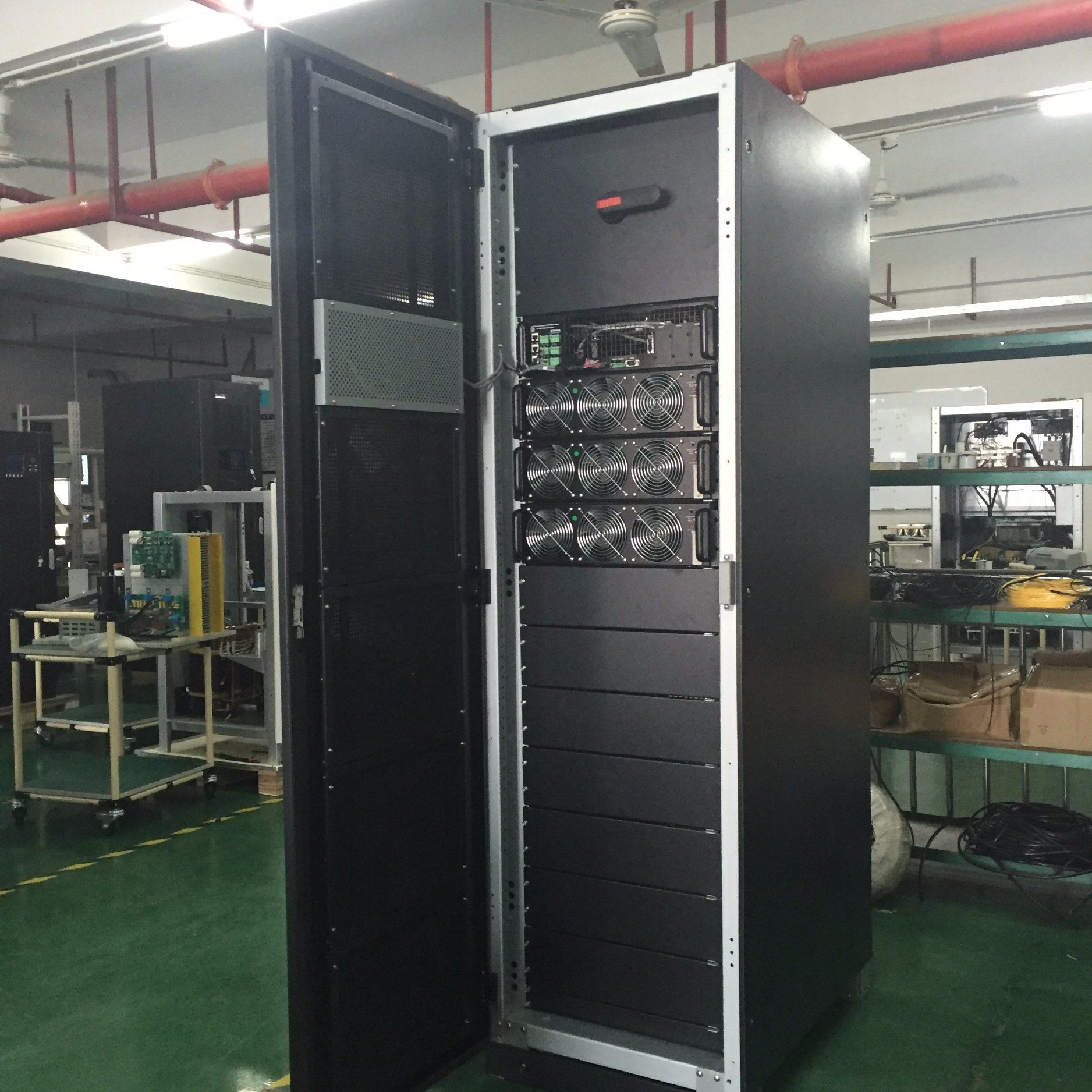

CNM330 series is modular online UPS for sensitive equipment. The single cabinet power rating covers from 10KVA to 300KVA which delivers the best of combination of reliability, hot-swappable and flexibility. With the latest IGBT three-level technology and DSP control, CNM330 achieves a high input power factor, low THDi Modular design with N+X redundancy and online hot swapping ,easy to expand the capacity Full DSP control of high stability, reliability and safety Integrated IGBT module with improved performance and reduced size
Advantages:
Superior energy saving : efficiency > 96% at 50%-75% rated load
Easy-to-install: top or bottom cabling, no need of input cabling cabinet.
Easy-to-maintain: full front access, UPS, failed part can be replaced shortly
Easy-to-modify: the number of battery cells can be configured flexibly, so the original batteries can be used when modifying the legacy system; moreover, the battery cell can be replaced in time when it fails without interrupting the normal operation of UPS. Power module supports hot swappable,
Extra large LCD that can display 12 language (Chinese ,English ,Russian, French ,Spanish and so on).
Provide large LCD touch screen (optional)
Each UPS modules provide 4.5KW charge capacity. equivalent to 10 to 12A
Advanced DSP full digital control technologies
Advanced distributed active parallel technology
Adaptive to severe power grid environment due to extra wide input voltage and frequency ranges
Intelligent battery management maintains battery automatically to prolong the battery life
The machine system for modular structure, consists of 1 to 10 module's biggest single module to 30kw
UPS capacity upgrade extremely simple.
Super ability for overload and short circuit, ensure the system stability and safety under the limit state of system
RS232,RS485,dry contact, SNMP card, EPO, generator port
System efficiency >96% at load above 50%, >95% at load above 25%
Our Service:
1. 2% spares together with shipment for urgent issue.
2. All of the necessary documents such as drawing, manual etc.
3. We will provide the online service by mail
4. Online guide will be provided all the time. We can despatch engineer to assist you solve the problem if necessary (But you are requested to pay for the cost of ticket, hotel etc. ). you can despatch engineer(s) to our company to get training.
5. One year warranty
Technical Specifications:
| Model | CNM330 20-300KVA |
| Capacity | 20-300KVA |
| Main Input | |
| Input Voltage | 380V/400V/415V |
| Input Frequency Range | 50/60Hz |
| Power Factor | Full load>0.99 ,Half load >0.98 |
| THDi | THDi<3% |
| Input Power Soft-start Function | 5-30s settable |
| Input Voltage Ranges | 228V-476V;-20%~25% at Full load ; linear derating at -25% ~- 40%; can take 70% load at -40% |
| Frequency Range | 40-70HZ |
| Battery |
| Battery Voltage | ±240VDC(Default),12V Battery 30~40pcs can be choose |
| Charge Voltage Accuracy | ±1% |
| Bypass |
| Bypass Input Voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Range | Default value is -20%~+15%; -40%, -30%, -10% ~ +10%, +15% , other ranges can be set via software |
| Overload Capacity | Long term at 135% rated load ,150%load>1000% 100ms |
| Output |
| Inverter Output Voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Accuracy | ±0.5% ( balanced load ) , ±1% ( unbalanced load ) |
| THDV | THDV<1% (linear load) , THDV<3% (nonlinear load) |
| Power Factor | 0.9 |
| Three Phase Angle Accuracy | 120°± 0.5° |
| Current Crest Ratio | 3:1 |
| Overload Capacity | 110%1h,125%10mins,150%1mins,>150%200ms |
| Transfer Time | 0ms,15ms (Eco Mode)
|
| System |
| Frequency | 50Hz/60Hz (Settable) |
| Mains Synchronization Range | ±2Hz(Default value), adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz |
| Protection Level | IP20 |
| Operation Temperature | 0-40ºC |
| Storage Temperature | -25ºC~70ºC ( without battery) |
| Humidity | 0-95% (no-condensing) |
| Noise(dB) | 55-62dB,Adjusted with load |
| Weight | module:PM20 | 20KVA power module : 35KG |
| module:PM30 | 30KVA power module : 35KG |
| module:PM40 | 40KVA power module : 35KG |
| Dimension (W x D x H)mm | 3 module cabinet | 600X900X1135 |
| 5 module cabinet(5 battery cabinet option) | 600X1100X2070/ |
| 6 module cabinet | 600X900X1535 |
| 10 module cabinet | 900X900X2080 |
| power module | 440X650X132(3U)(10KVA/20KVA/30KVA) |
(Optional South America 208V must be derating use)

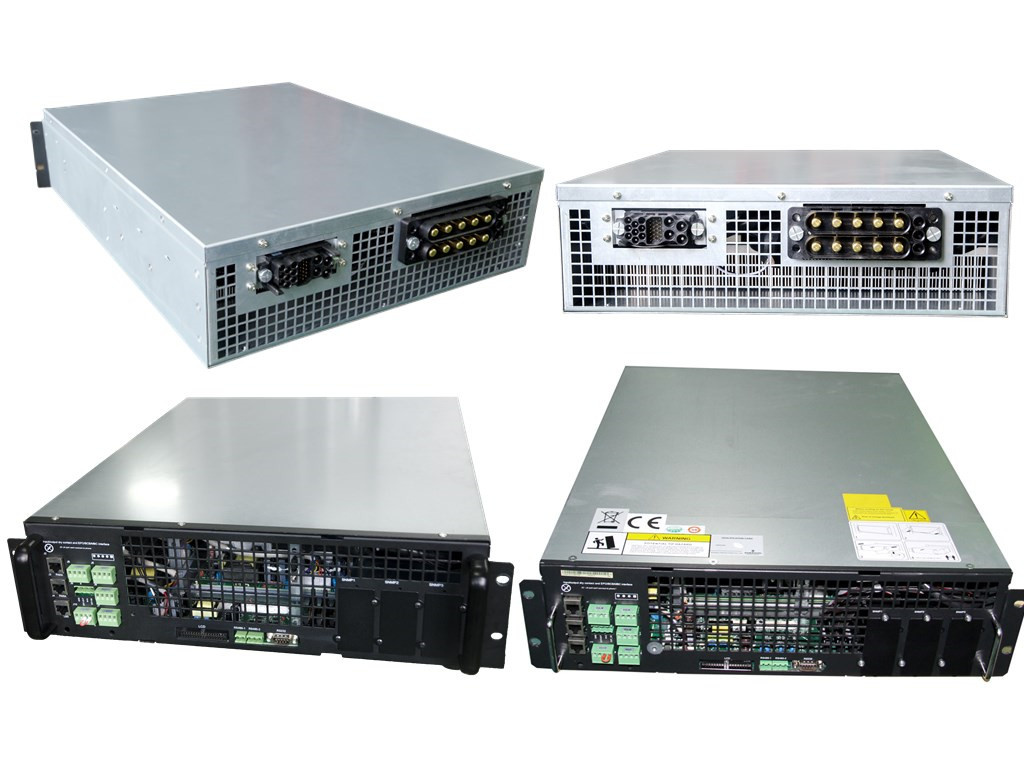

The Modules
Shenzhen CONSNANT Technology Co., Ltd. (simple name: CONSNANT) is a professional manufacturer engaged in research, development and production of UPS (Uninterruptible Power Supply) including the Modular UPS, Outdoor & Indoor UPS, Industrial special UPS, Low Frequency & High Frequency Online UPS and Solar Power System both for home appliance and telecom equipments.
Our product has obtained the CE, ISO 9001, ISO 14001 and local Chinese TLC certificates. Having reached good sales results in China, we are now expanding our sales overseas.
We are proud of the fact that most of our company's engineering staff is well-qualified and has gained experience in relevant fields more than 10 years. In order to protect your equipment from electrical supply network instability, we offer innovative solutions that obtain higher availability systems, improve efficiency and offer flexible solutions to meet specific needs and range of application. The UPS product is widely used in data and computing centers, finance institutions, banks, within industry and medical fields.
We welcome any kind of collaboration, will enjoy any opportunities of dealing with new costumers: From distributors to ultimate consumers, undertake both wholesale and retail orders, including the sale of finished goods or parts.
If you start work with us, you will not only get high-quality product at reasonable price, but also maintain the profitable conditions for further years.
We are located in the world-famous High-Tech center - Shenzhen city, China. Our factory is close to airport. If you are lucky to visit the city, you are kindly welcomed to visit our factory.
