180kw Electric Car DC Quick Charger with 6 Charging Terminal Cabinet

Name: 180kw Electric Car DC Quick Charger with 6 Charging Terminal Cabinet
Brand: all-electronics-online.com
SKU: 726785832
Availability: InStock
Rating: 4.5 (72 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPEV180-FA750-M10
Efficiency:	≥96.4%
Input Frequency:	45~65Hz
Power Factor:	>0.99
Output Voltage:	200~750VDC
Voltage Regulation:	≤±0.5%
Current Regulation:	≤±0.5%
Operating Temperature:	-40~+65ºC
Dimensions:	1050×1800×380(mm)
Weight:	168kg
Mtbf:	>400,000hours
Warranty:	2 Years
Certification:	ISO
Output Power:	180kw
Input Voltage:	260~530VAC
Brand:	Goldpower

Product Description

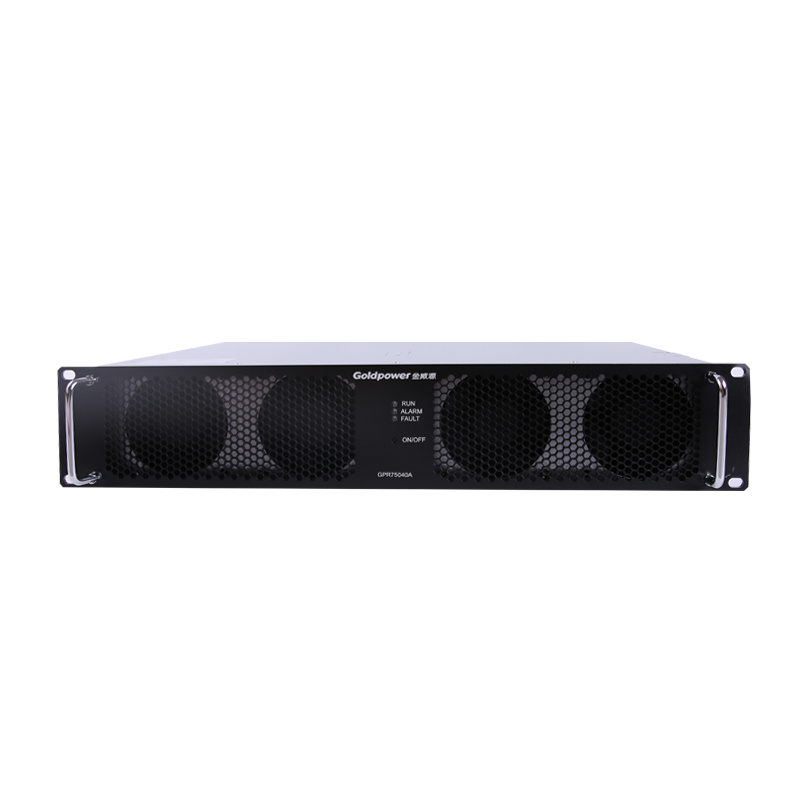

Goldpower HVDC power module technology Gateway to the leading edge of EV charging.

Features:

1. World 1st 30KW Module mounted EV Charger (Up to now)
2. Single cabinet 180KW, normal EV in 10min,(Tesla Model S fully charged in 30min)
3. Efficiency up to 96.4%, full digital DSP control, total harmonic current less than 3%.
4. Split type design, one power cabinet support 6 charger guns.
5. 33cm Ultra-thin structure design, minimal thickness 18cm, save space for installation.
6. Dynamic power distribution technology,realized the best efficiency and reduce operation costs.
7. Support two cabinet parallel operation, max to 360kW.
8. Leading APFC tech (active power factor correction), power factor > 0.995
9. Supports hot plugging without damage, a module can be replaced within 1min.

Application:
1. Electric vehicle charging equipment manufacturers, charging service providers.
2. Various types of electric buses, cars, mini electric vehicles, logistics vehicles and new energy vehicle operating companies
3. Charging station
4. Office building, shopping center, residential community, commercial property management providers, as well as Industrial Park operators.
5. Highway and social public parking lot operation manager.
6. New energy vehicles after-sales service points, spare parts suppliers.

Specifications:

Model	GPEV180-FA750-M10	GPEV90-FA750-M8
Power	180kW	90kW
Input voltage	260~530Vac	260~530Vac
Input frequency	45~65Hz	45~65Hz
Output voltage	200~750Vdc	200~750Vdc
Power factor	≥0.99	≥0.99
Voltage regulation	≤±0.5%	≤±0.5%
Current regulation	≤±0.5%	≤±0.5%
THD	≤3%	≤3%
Full load efficiency	≥96.4%	≥96.4%
Current sharing	≤±5%	≤±5%
MTBF	>400,000 hours	>400,000 hours
Ripple(peak to peak)	≤±0.5%	≤±0.5%
Start-up time	Soft-staring 8s	Soft-staring 8s
Operating temperature	-40~+65ºC	-40~+65ºC
Audible Noise	≤65dB	≤65dB
Communication port	CAN/RS485/WLAN/Bluetooth	CAN/RS485/WLAN/Bluetooth
Protection class	IP55	IP55
Lightning protection	20kA	20kA
Dimensions	1050×1800×380(mm)	1050×1800×180(mm)
Weight	168kg	95kg

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
