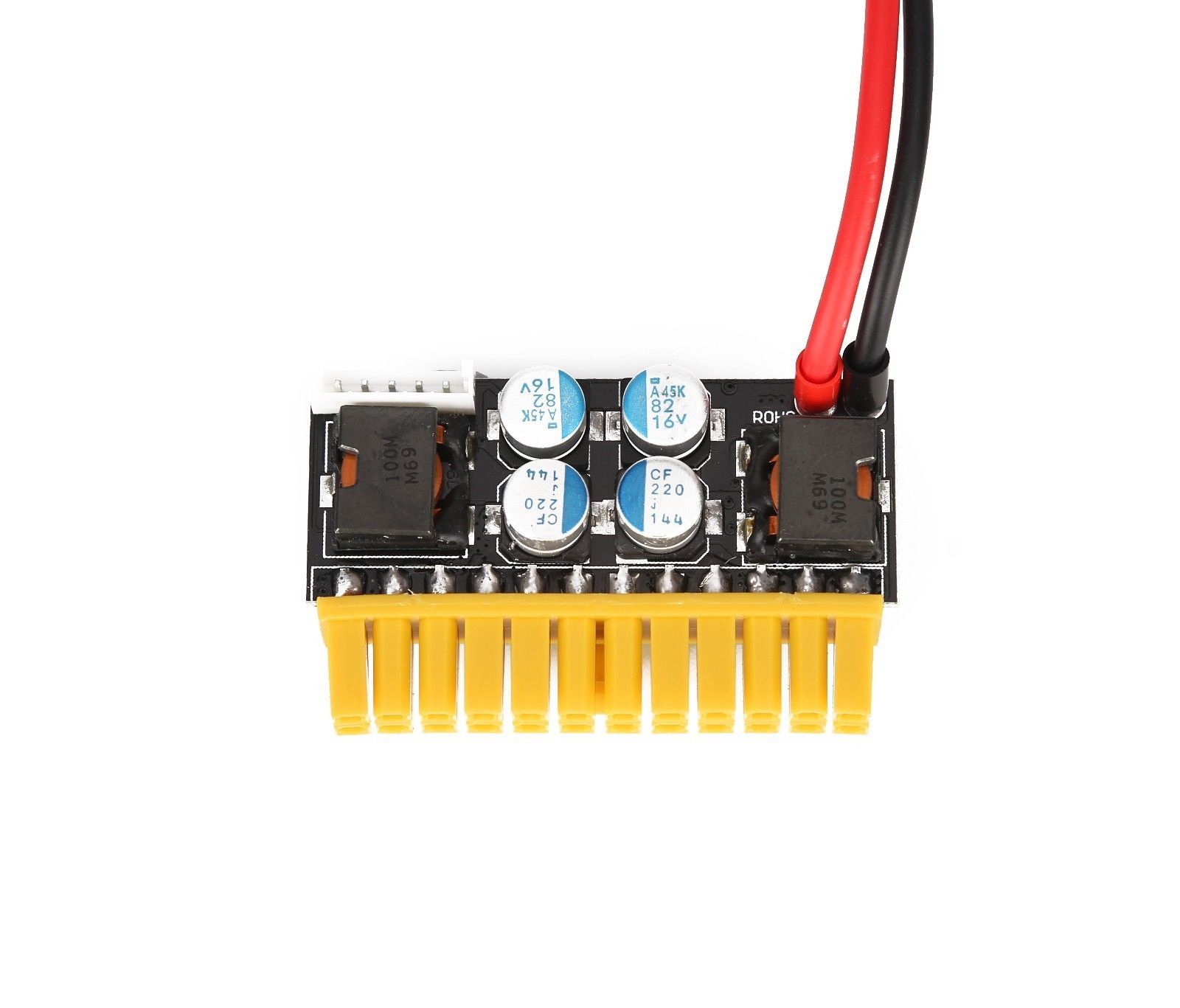

180W 12V Pico DC ATX Switch PSU Car Auto Mini Itx ATX Power Supply

Prod Model:	180W
Warranty:	1 Year
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Input Voltage:	DC 12V

Product Description

180W 12V Pico DC ATX switch PSU Car Auto MINI ITX ATX Power Supply

Production features:

1), Input: 12V(11.4~13V)
2). Input: current: MAX.16A
3).Output ATX:180W
4).Output current +12V: 8A Max Load(15A  Peak Load)
5). Output current +5V: 8A Max Load(10A  Peak Load)
6).Output current +3.3V: 8A Max Load(10A  Peak Load)
7).Output current +5VSB: 2A Max Load(3A  Peak Load)
8).Output current -12V: 0.07A Max Load(0.1A  Peak Load)
9).Efficiency: above 93-97%
10). Operating Temperature: -20degrees celsius - 85degrees celsius
11). Dimensions:
L52 X W13 X H33mm

Discriptions:

A. Adopt industrial solid capacitor, ideal for being used in harsh evironment,
B. High performance with high heat-stand feature, more realiable ,
C. Without fan for 100% mute working.
D. Compact design, special for mini-itx and 1U case.
E. Fits any motherboard equipped with a 24pin ATX connector.

Package includes:

A, DC-ATX Power supply

B, Out connect cable Kit
