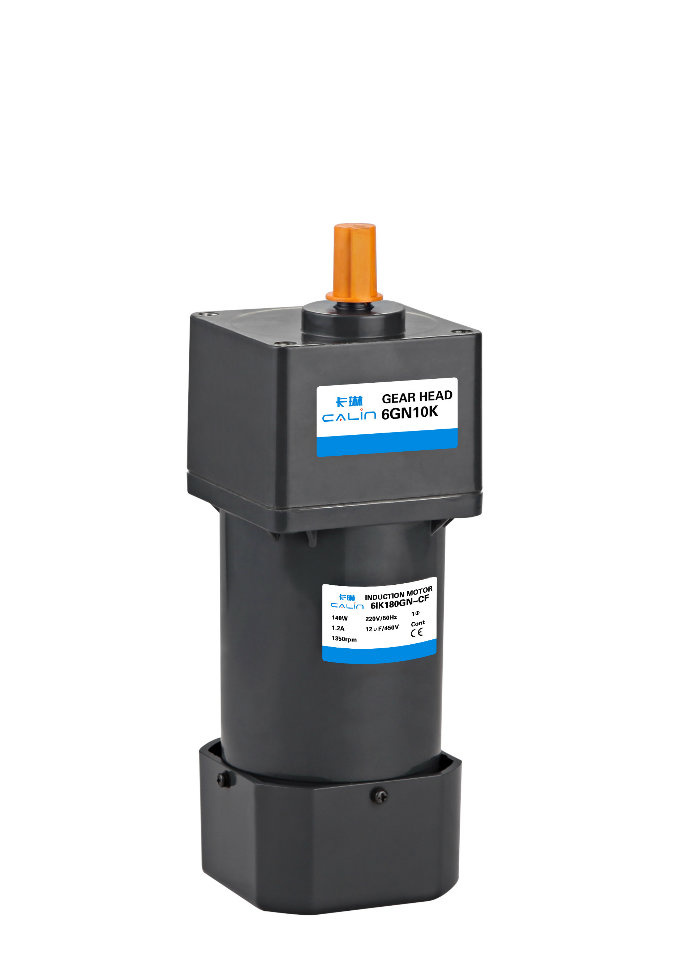

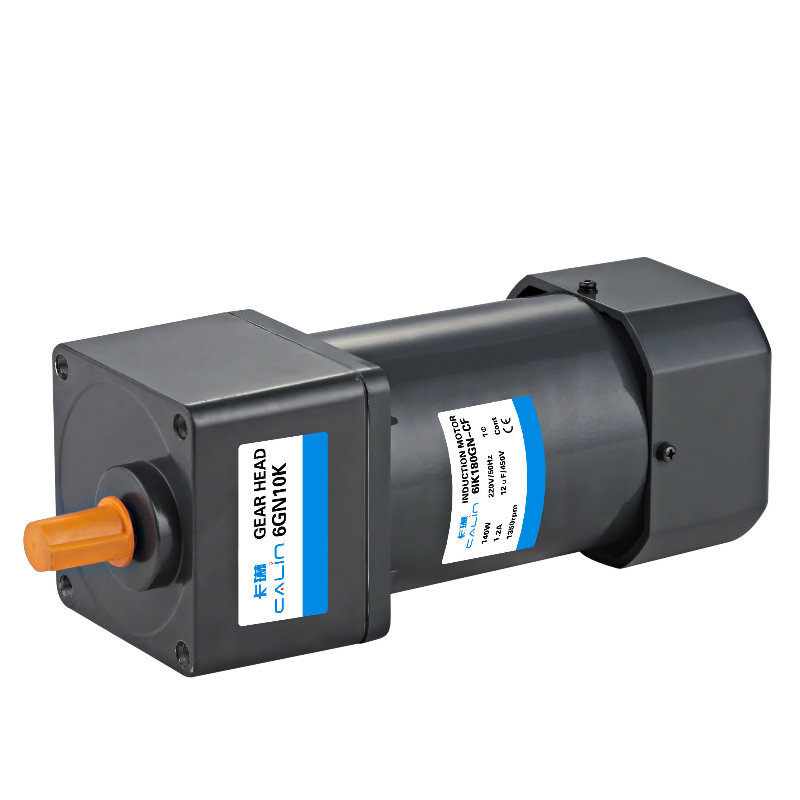

180W Single Phase AC Induction Motor Low Prices 6ik180gu-CF/6GU100K

Name: 180W Single Phase AC Induction Motor Low Prices 6ik180gu-CF/6GU100K
Brand: all-electronics-online.com
SKU: 833132155
Availability: InStock
Rating: 4.9 (103 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	6IK180GN-CF/6GN10K
Frequency:	50Hz/60Hz
Function:	Control
Number Of Stator:	Single-Phase/Three Phase
Number Of Poles:	2p/4p
Certification:	Ce, RoHS, UL
Brand:	Calin

Product Description

Motor Overall Dimension

The value in the()is the value of small gear shaft motor

List of Motor Characteristics

^{Model of Motor}		^Output	^Voltage	^Frequency	^Poles	^Duty	^Rated				^{Starting Torque}		^Capacitor/Ve
^{Model of Motor}		^Output	^Voltage	^Frequency	^Poles		^Speed	^Current	^Torque		^{Starting Torque}		^Capacitor/Ve
^Motor	^{Motor with gear shaft}	^w	^V	^Hz	^P		^r/min	^A	^N.m	^kgf.cm	^N.m	^kgf.cm	^μF/VAC
6IK180A-AF	6IK180GU-AF	180	^1PH110	⁵⁰	⁴	^CONT	¹³⁵⁰	3.2	1.08	10.08	0.99	9.55	30.0/250
6IK180A-CF	6IK180GU-CF	180	^1ph220	⁵⁰	⁴	^CONT	¹³⁵⁰	1.4	1.08	10.08	0.99	9.55	10.0/450
6IK180A-SF	6IK180GU-SF	180	3ph220	50	4	^CONT	1350	1.2	1.38	13.8	3.65	36.00	/
6IK180A-UF	6IK180GU-UF	180	3ph380	50	4	^CONT	1350	0.7	1.38	13.8	3.65	36.00	/
6IK180A-DF		180	^1ph220	50	2	^CONT	2800	1.1	0.54	5.45	0.54	5.40	10.0/450
6IK180A-TF		180	3ph220	50	2	^CONT	2800	1.45	0.54	5.45	3.40	34.0	/
6IK180A-T3F		180	3ph380	50	2	^CONT	2800	0.65	0.54	5.45	3.40	34.0	/

·The capacitor capacitance will be different under different voltage. A correct capacitor capacitance is required to match the applied voltage.
·Wrong capacitor capacitance is the cause of trouble. You must confirm a correct voltage and select a correct model when your purchase order is placed.

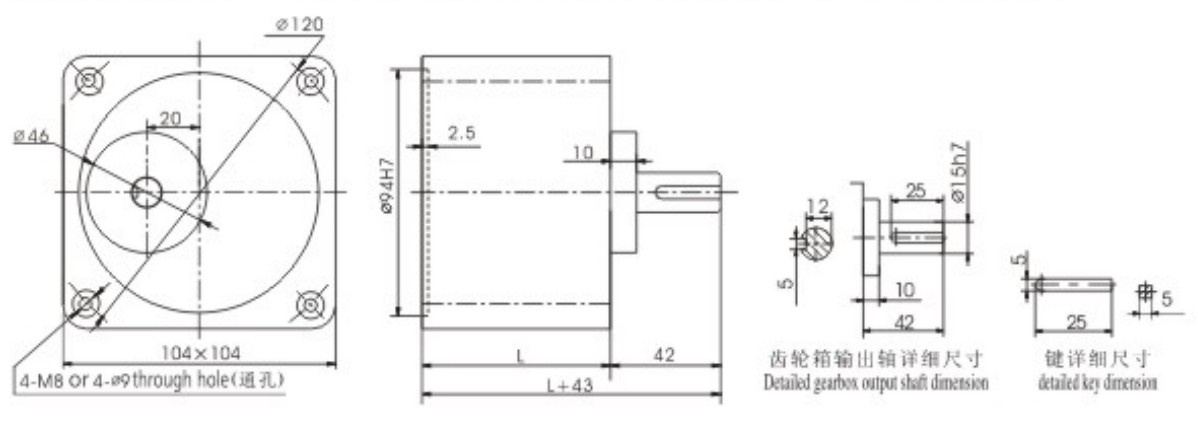

Overall Dimension of Gearbox

	^{Reduction ratio}	^L Size(mm)	^Weight(kg)
^Gearbox	6GU3K-9K	72	1.87
	6GU10K-18K		2.10
	6GU20K-200K		2.75
^Motor			5.0

Allowable Torque on Gearbox
Model of Gearbox:6GU__K

Frequency	Reduction Ratio		3	5	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
50Hz	Output Shaft Speed	r/min	500	300	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12	10	8	7.5
	Allowable Torque	N.m	2.36	3.93	5.89	7.07	7.07	8.85	10.06	12.7	12.7	16.0	19.2	23.0	25.6	32.0	38.4	39.2	39.2	39.2	39.2	39.2	39.2	39.2
	Allowable Torque	kgf.cm	24.1	40.1	60.1	72.1	72.1	90.3	108	130	163	196	235	261	327	392	400	400	400	400	400	400	400	400
60Hz	Output Shaft Speed	r/min	600	360	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
	Allowable Torque	N.m	2.03	3.39	5.08	6.09	6.09	7.60	9.15	11.0	11.0	13.8	16.6	19.9	22.1	27.6	33.1	39.2	39.2	39.2	39.2	39.2	39.2	39.2
	Allowable Torque	kgf.cm	20.7	34.6	51.8	62.1	62.1	77.6	93.4	112	112	141	169	203	226	282	338	400	400	400	400	400	400	400
