| Prod Model: |
BB-18350/1100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
18350 1100mAh Lithium Ion Battery |
| Size: |
18*350mm |
| Application: |
E-Cigarette |
| Discharge Current: |
30A |
| Type: |
Lithium-Ion Batteries |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Cylindrical Battery |
| Rechargeable: |
Chargeable |
| Usage: |
E-Cigarette |
| Nominal Voltage: |
3.7V |
| Electrolyte: |
Li-ion |
Product Description

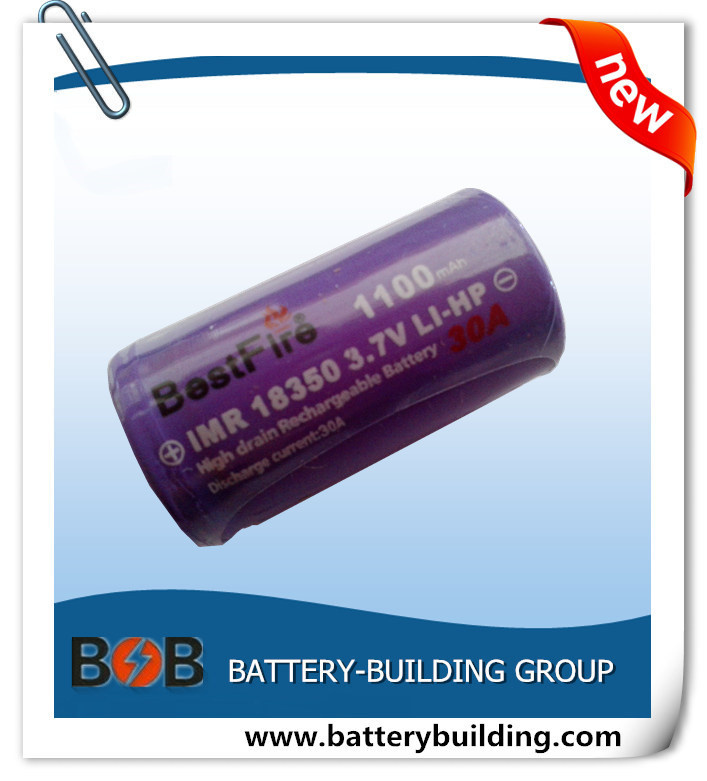

18350 1100mAh 30A rechargeable lithium battery
Features:
1. lithium ion rechargeable battery
2. high discharge current
3. Excellent performance
4. used mostly in E-cigarette
Specification
| NO. | Item | Specifications |
| 4.1 | Typical Capacity | 1120mAh @ 0.2C Discharge (0.2C) |
| Minimum capacity | 1100mAh @ 0.2C Discharge (0.2C) |
| 4.2 | Nominal voltage | 3.7V |
| 4.3 | Standard Charge | CC/CV,0.2C5A, 4.20V |
| 4.4 | Standard Discharge | CC,0.2C5A, 3.00V |
| 4.5 | End-of-charge Voltage | 4.20V±0.05V |
| 4.6 | End-of-charge Current | 0.01C5A (At CV mode) |
| 4.7 | End-of-discharge Voltage | 2.75 V |
| 4.8 | Charging Time | 8.0hours(standard charge) 8 |
| 4.9 | Quick Charge Current | 1100mA (1.0C5rate) 1C |
| 4.10 | Quick Discharge Current | 11000mA (10C5rate) 10C |
| 4.11 | Max Discharge Current | 33000mA (30C5rate) 30C |
| 4.12 | Initial Impedance | Max:36mW |
| 4.13 | Weight | Approx():20±2g |
| 4.14 | Operating temperature | Charging(): 0ºC~45ºC
Discharging():-20ºC~60ºC |
| 4.15 | Storage temperature | -5ºC~35ºC |
| 4.16 | Storage Humidity | ≤75% RH |
| 4.17 | Appearance | Without scratch, distortion, contamination and leakage (,,,) |
| 4.18 | Standard environmental condition | Temperature() : 23±5ºC
Humidity() : 45-75%RH
Atmospheric Pressure() : 86-106 KPA |
| No. | Item | Test Methods and Condition | Criteria |
| 5.1 | 0.2C Capacity
0.2C | After standard charging, rest battery for 10min, then discharging at 0.2C to voltage 3.0V, recording the discharging time.
,10,0.2C3.0V, | ≥300min |
| 5.2 | Cycle Life | Constant current 0.5C charge to 4.2V, then constant voltage charge to current declines to 0.01C, rest 10min,constant current 0.5C discharge to 2.75V,rest 10min. Repeat above steps till continuously discharging capacity Higher than 80% of the Initial Capacities of the Cells
0.5 C4.2V,4.2V≤0.01C,10,0.5C2.75V;10,,80% | ≥300 times() |
| 5.3 | Capability of keeping electricity | 20±5ºC, After standard charging, rest the battery 28days, discharging at 0.2C to voltage 2.75V, recording the discharging time.
20±5ºC,,28,0.2C3.0V,. | ≥240min |
| No. | Item | Test Methods and Condition | Criteria |
| 6.1 | Discharge at high temperature
| After standard charging, rest the cells 4h at 60±2ºC, then discharging at 1C to voltage 2.75V, recording the discharging time.
,60±2ºC4h,1C3.0V,. | ≥54min |
| 6.2 | Discharge at low temperature
| After standard charging, rest the cells for 16h at -20±2ºC, then discharging at 0.2C to voltage 2.75V, recording the discharging time.
,-20±2ºC16h,0.2C3.0V,. | ≥210min |
| 6.4 | Thermal shock
| Put the cells in the oven. The temperature of the oven is to be raised at 5±2ºC per minute to a temperature of 130±2ºC and remains 30 minutes.
, 5±2ºC/min130±2ºC,30min. | No fire, no smoke , |
Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.
Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.
Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.
SHENZHEN BATTERYBUILDING INDUSTRY Co., Limited is a profestional hi-tech industry company. We are specialized in different kinds of lithium batteries and engaged in the related products, include Lithium batteries, LiFePO4 batteries, BMS/PCM/CMB, RC/Lipo Batteries, and related battery chargers.
Various lithium battery cells models are provided, and can be customized the battery packs according to customers' Detailed requirements and applications. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in E-bikes, backup power, laptop, electrical toys, helicopter models, electrical cars, power tools and so on.
Our products are exported to all over the world, like Europe, USA, Canada etc. Our company focuses on the development of battery quality with our own research centre and technical team in battery developing, quality controlling and producing. Our aim is "to keep improving new product technology, to take Environment Protection as our responsibility; To provide customers with excellent service and technical support; To make our products much more environment-friendly and safer. "
If you hany any inquiry and question, please just contact us.
We are looking forward to establishing relationships with you in the near future.
