Shenzhen Quawin Technology Co., Ltd. >> 18650 Battery, 3s1p 11.1V 2600mAh Li-ion Battery Pack

18650 Battery, 3s1p 11.1V 2600mAh Li-ion Battery Pack

18650 Battery, 3s1p 11.1V 2600mAh Li-ion Battery Pack
Price: Negotiable/Piece
Min Order: 50/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: LP0111-2600-L
Type: Lithium-Ion Battery Pack
Connection Mode: Series and Parallel

Product Description

3S1P 18650 battery 2600mAH Li-ion Battery Pack


Product Description

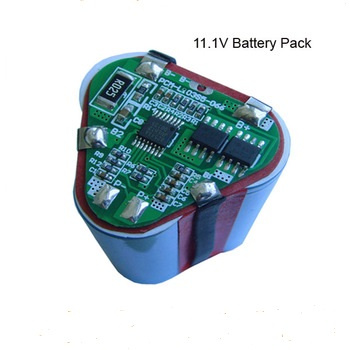

18650/3S1P Li-ion Battery Pack 11.1V/2.6AH
Model:LP0111-2600-L
ItemSpecificationRemark
Nominal capacity2600mAh0.5C discharge Cell: 18650
Nominal voltage11.1V3.7V / 1Cell
Charging voltage12.6V±0.05V4.2V / 1Cell
Charging methodCC/CV(Constant-current and -Voltage with Limited current
Standard charging time1000mA/3hour,2000mA/1.5hourBattery capacity÷charging current×1.5
charging current1300mA(0.5C)0 ~ +40°C
Maximum charging current2600mA(1C)0 ~ +40°C
Continuous discharge current2600mA(1C)-20 ~ +60°C
Discharge cutoff voltage7.2V2.4V / 1Cell
Short circuit protectionExterior short circuitAutomatic recovery
Internal resistance200mΩAC Impedance 1kHz
Cycle life≥500
Operating temperatureStandard Charge0 ~ +40°C
Standard Discharge-20 ~ +60°C
Outline dimensionL36*W36*H71mmLength x wide x height
Pre-wired Red = Positive,Black = Negative
Protection Circuit Module:PCM-Li03S5-066
Maximal continuous charging current4A
Maximal continuous Discharging current4A
Over-charge detection voltage4.35V±0.025Vsingle cell
Over-charge release voltage4.15V±0.05Vsingle cell
Over-charge detection delay time0.5S-1.5Ssingle cell
Over-discharge detection voltage2.40V±0.08Vsingle cell
Over-discharge release Voltage3.0±0.10Vsingle cell
Over-discharge detection delay time50-150mSsingle cell
Over-current detection10±2Acan adjust
Over-current delay time5-15mS



Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
