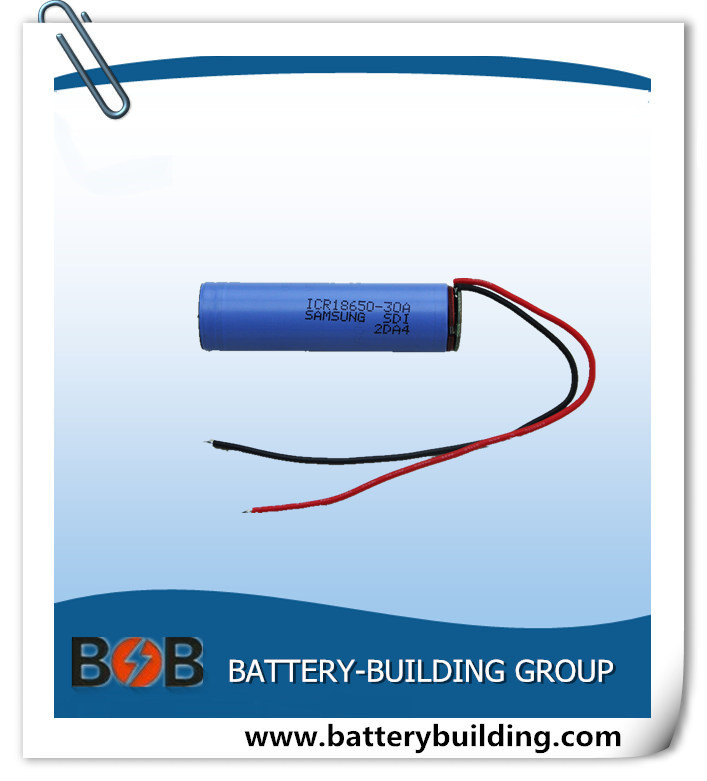

18650 Lithium Battery with PCB and Wire

Prod Model:	BB-18650/30A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	LED Light and etc.
Structure:	Samsung 3000mAh 1s1p
Dimension:	19*67mm
Certificate:	CE, RoHS
Length Of Wire:	Customized
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Standard Voltage:	3.7V
Usage:	LED Light
Electrolyte:	Li-ion

Product Description

18650 Lithium Battery with PCB and Wire

Specification
1. Model: Li-ion 18650
2. Capacity: 3000mAh
3. Voltage: 3.7V
4. Work voltage: 2.5~4.2V
5. Pack dimension: 18*65mm (single cell) with PCM, lead wire and connector
6. Impedance: 80 m Ω
7. Wire: UL3239/22# or customized
8. Wire dimension: 65+/-5mm
9. PCB, NTC: As per your Working Application request
10. Cycle Life: 80% capacity remains after 350cycle (charge at 0.5C and discharge at 0.2C)
2.Product Advantages:
1).With short-circuit production function, safe and reliable;
2).Up to 500 cycles life,low self-discharge,no memory effect;
3).Factory mastered technology and competitive price;
4).CE/ROSH/MSDS/UN38.3

Details:

NO	Item	General Parameter				Remark
1	Model	BB-18650/30A
2	Standard capacity	3000mAh
3	Rated voltage	3.7V
4	Max. charge voltage	4.2V				4.2V Single Ave. charge Voltage
5	Over charge protection	Over charge detection voltage		4.25
		Over charge release voltage		4.15
6	Max. charge current	1000mA
7	Charging time	About 1-5h
8	Discharge cut-off voltage	3.0V				3.0V Single Ave. Discharge Voltage
9	Over discharge Protection	Over discharge detection voltage			2.8V
		Over discharge release voltage			3.0V
10	Max. continuous discharge current	1C
11	Peak discharge current	2C
12	Short circuit protection	Detetion delay time				Release condition	Cut-off load
12	Battery dimension	19*67mm
13	(Approx.) Total weight(Approx.)	About 50g
14	Operation temperature	Standard	0ºC~45ºC
		Discharge	-20ºC~65ºC
		Storage	-20ºC~65ºC

Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.

Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.

Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.

Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours.
