187 Quick-Connect Terminal (thick 0.8mm) Micro Switch (MS4-16T0-B)

Name: 187 Quick-Connect Terminal (thick 0.8mm) Micro Switch (MS4-16T0-B)
Brand: all-electronics-online.com
SKU: 710609865
Availability: InStock
Rating: 5 (51 reviews)

Price:	US $ 0.375/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS4-16T0-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Micro Switch
Current:	16A/10A
Voltage:	125V/250V
Switch Cover:	Black
Operating Force:	1.5 N-3 N
Pressing Type:	Push-Button
Protection:	Dust-Proof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Form:	Single Type
Application:	Home Appliances
Brand:	Yuzhou

Product Description

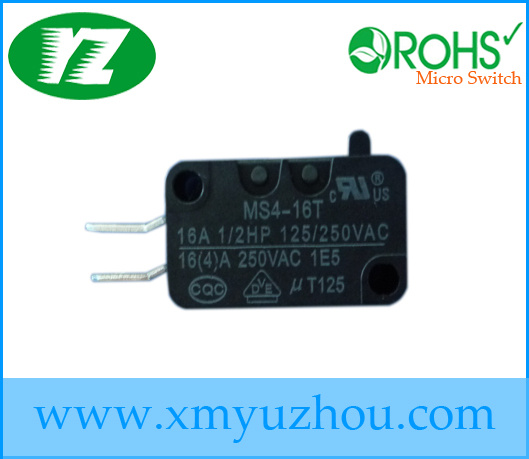

187 Quick-connect terminal (thick 0.8mm) Micro Switch
Good quality, All kinds of operating force, Several Kinds of Terminal

1. Rated current and voltage:
16(4) 250 V AC/16A 125V AC 1/2HP 125/250VAC;
10(3)A 250V AC/10A 125VAC
6(2) A250VAC/1A 125VAC
1(1)A 250VAC/1A125VAC
2. Contact Resistance: 30mΩ Max;
3. Insulation Resistance: 100MΩ (500VDC);
4. Operating Force: 1.5 N-3 N
5. Life: Mechanical ≥ 5000000 cycles; Electrical≥ 50000 cycles;
Apply to microwave oven, air conditioner, electric cooker, dishwasher, cleaner, humidifier, water heater, electric radiator, e; Ectric drill, joystick, TV game, time recorder, solder gun, mixer, food processor, juice maker, alarm, mixer, shredder machine, etc.

Item		Value
Perating Speed		0.1mm~1m/s(Related with actuator forms)
Operating Frequency		Mechanical 60 cycles/min;Electrical 30 cycles/min
Insulation Resistance		100 MΩ (500VDC)
Contact resistance		<=30mΩ(Initial value)
Test Voltage	Between terminals of the same polarirty	AC1000V,50/60Hz,1min
	Between current-carrying metal and ground(case), and between each terminal and non-carrying metal parts	AC2000V,50/60Hz,1min
Vibration resistance		10-55Hz,1.5mm Double amplitude
Shork Resistance		Destruction : OF>0.5N:1000m/s ²(approx.100G)max OF<=0.5N:500m/s ²(approx.50G)max Malfunction: OF>0.5N:300m/s ²(approx.30G)max OF<=0.5N:200m/s ²(approx.20G)max
Life Expectancy		Mechnical>=5000000 cycles Electrical>=50000 cycles
Degree of protection		IEC IP40
Degree of protection against electric shock		Class I
PTI(Tracking Resistance)		175
Ambient air temperature		125°C 60%RH below(No ice and dew)
Ambient air humidity		85% Rhbelow(about +5~+35°C)
Weight		Approx.5.95g(No lever)
