18AWG CCS 75% Braiding Triple Shield RG6 Coaxial Cable

Name: 18AWG CCS 75% Braiding Triple Shield RG6 Coaxial Cable
Brand: all-electronics-online.com
SKU: 727978735
Availability: InStock
Rating: 4.7 (56 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WM-COAX-036
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe
Brand Name:	Weimai or OEM
Coaxial Cable Brading:	96X0.12mm Al Alloy
Number Of Conductors:	1core 1.02mm 18AWG CCS
Coaxial Cable Foam:	4.75mm Foam PE
Coaxial Cable Al-Foil:	Bonded Al Foil
Coaxial Cable PVC Jacket:	Flame Retardant, UV, or UL Available
Application:	Long Distance Symmetric Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Triple Shield RG6 Coaxial Cable
Conductor Type:	CCS
Wire Core Material:	Al Alloy
Model:	Triple Shield RG6 Coaxial Cable
Brand:	Weimai

Product Description

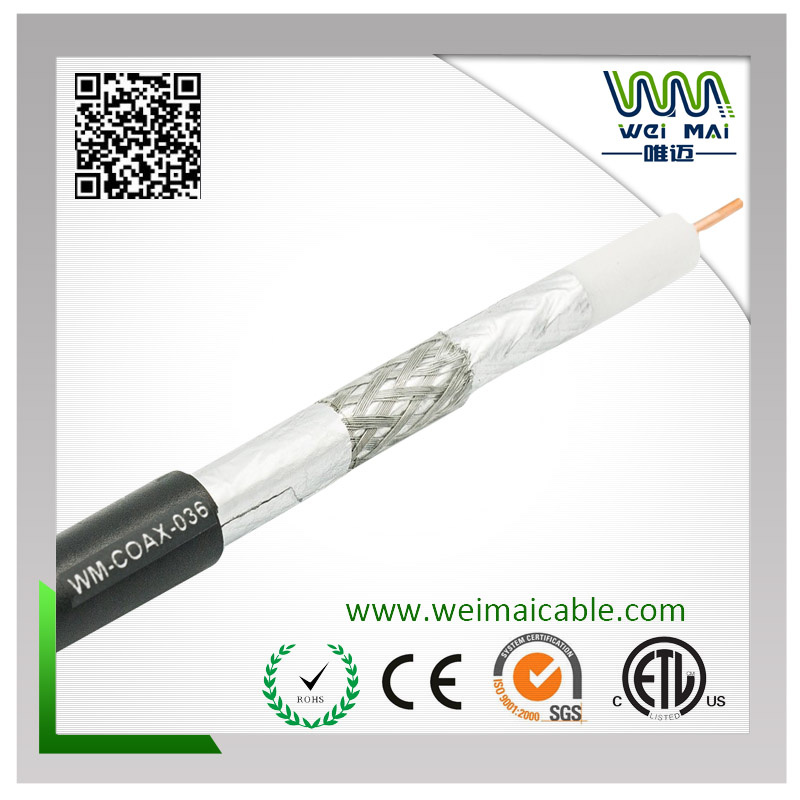

18AWG CCS 75% Braiding Triple Shield RG6 Coaxial Cable

Item: WM-COAX-036

1) Construction

Center Conductor:

1.02+0.01mm Copper Clad Steel/CCS Conductivity 18%

Dielectric:

4.75+0.05mmFoam PE

1st Shield:

Bonded Al Foil

2nd Shield Braid Coverage:

96X0.12mm Al alloy Braiding 75%Coverage

3rd Shield:

High Temperature Aluminum Foil

Jacket:

6.9+0.05mm PVC white/black 75Degree

Package:

100M/Roll 305M/Drum 1000ft/500ft/Pull Box

2) Characteristics

Sparker Test:	4000VAC
Impedance:	75+3 Ohm
Capacitance:	54+3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-2300MHz)

3) Attenuation

Attenuation	[@68o F. (20o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.81	2.65
50	1.5	4.9
100	2.0	6.5
200	2.8	9.2
400	4.1	13.6
700	5.6	18.4
900	6.2	20.3
1000	6.68	21.9
1450	8.15	26.72
1800	9.0	29.5
2250	10.56	34.62

Linan Weimai Electron Co., Ltd is a manufacturer with more than 6 years

Experience in the communications cable industry in China. With an experien-

Ced and professional team, we have exported our products to many countries

And regions all over the world, especially European countries, North Americ-

An, Asia and the Middle East. We can professionally manufacture and supply

Coaxial cables, LAN cables, alarm cables, telephone cables Speaker Cable,

Audio RCA Cable, Scart cable, Flexible RVV Cable and the cable assembly

etc, and many are approved by CE, RoHS. Current production capacity is

About 180, 000, 000 meters per year. Our factory is located in Lin an city, enjoying great convenience toShanghai and Ningbo Sea Port. We have advanced testing machines, ToTest Attenuation, Return Loss Ect. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We welcome

Customers, business associations and friends from all parts of the word to

Contact us and seek cooperation for mutual benefits
