18AWG Solid CCS 21% Conductivity Conductor Black RG6 Coaxial Cable

Name: 18AWG Solid CCS 21% Conductivity Conductor Black RG6 Coaxial Cable
Brand: all-electronics-online.com
SKU: 700235355
Availability: InStock
Rating: 5 (142 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG6 Coaxial Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	18AWG CCS
Dielectric:	4.57mm Foam PE
Outer Conductor:	Al Foil+Braiding
Braiding Coverage:	60%-90%
Jacket:	6.91mm PVC/PE/Lszh
Impedance:	75 Ohm
Velocity Of Propagation:	85%
Return Loss:	20db Min (5-2300MHz)
Capacitance:	54+3PF/M
Delivery Time:	20 Days
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	RG6 Coaxial Cable
Model:	RG6 Coaxial Cable
Brand:	Xingfa

Product Description

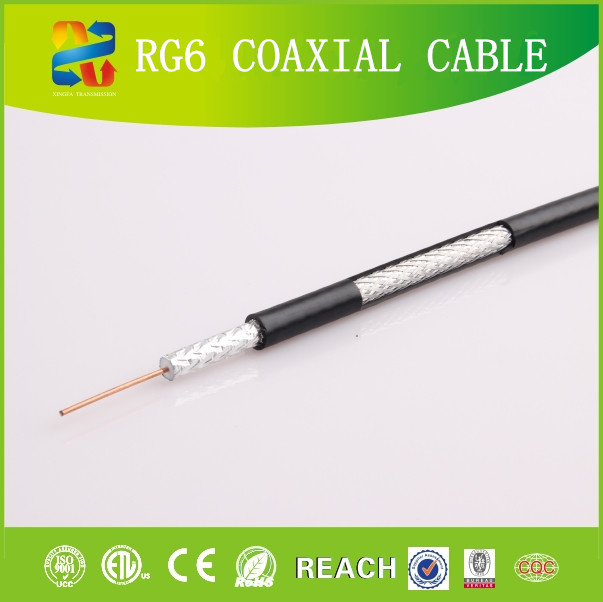

18AWG Solid CCS 21% Conductivity Conductor Black RG6 Coaxial Cable

1. Product Description
1.02mm CCS 21% +4.57mm Foam PE+Al Foil+64*0.12mm Braiding+6.91mm PVC

Remarks

1) Center conductor:BC,TC,CCA,CCS

2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double

non-bonded Al-foil are available

3) Braiding wire:Al,BC,,TC,CCA,CCS Available

4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available

5) Braiding net:32,48,64,72,80,96,120,128,144 and more available

6) Braiding coverage:Between 30-97%

7) PVC jacket of flame retardant,UL Available

2. Characteristics

Impedance(Ω)	75±3
Velocity of Propagation(%)	85
Capacitance(pF/m)	50
Structural Return Loss(≥dB)	20
Attenuation [@ 68° F. (20° C)]
Frequency(MHz)	Maximum(dB/100m)
5	1.9
55	5.25
187	9.35
300	11.64
450	14.43
600	16.73
750	18.34
865	20.01
1000	21.49

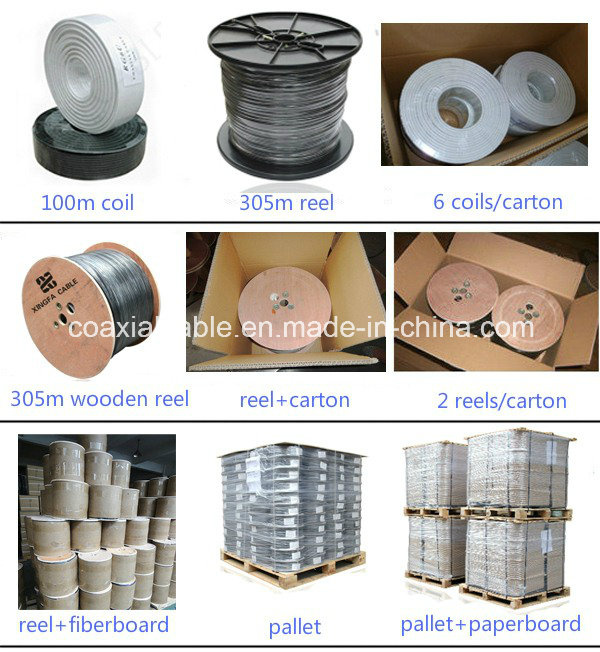

3. Packing

1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll

2) Inner Packing: Wooden reel, plastic reel, and paper reel

3) Outer Packing: Carton box, pull out box, pallet available

4) Other packing available according to clients' request

4.About US
We HANGZHOU XINGFA TRANAMISSION EQUIPMENT CO., LTD. is TOP3 cable manufacturer in Linan, Hangzhou,China. We have more than 18 years experience in the communication cable industry in China. We mainly prouduce Coaxial Cables, Lan Cables, Alarm Cables, Speaker Cables, Telephone cables and so on.

We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.

Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.

Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.

We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.

Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.

"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
