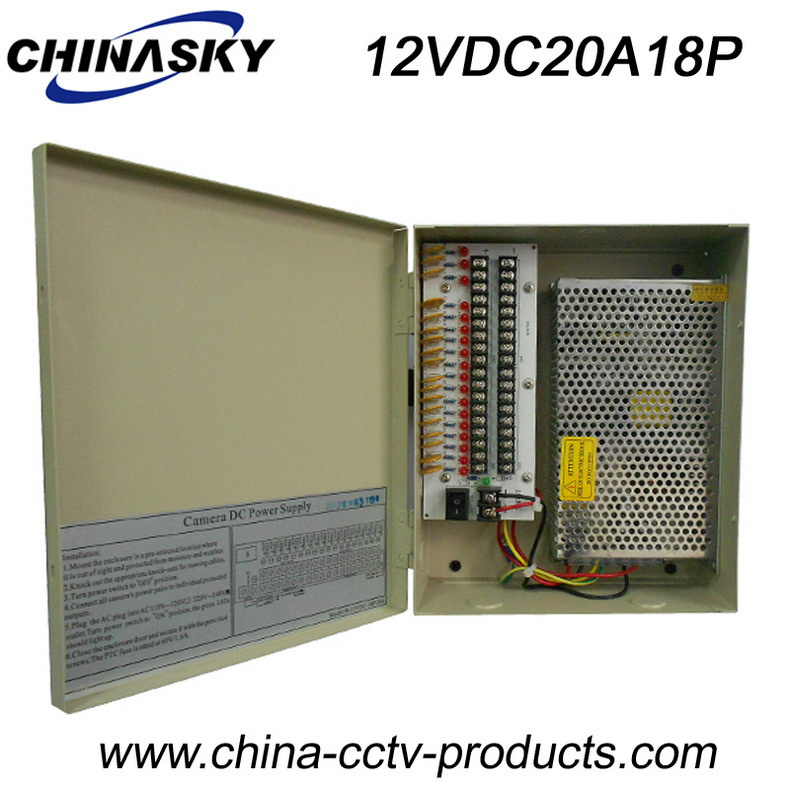

18CH-Output 20A Switching Power Supply Box for CCTV Camera (12VDC20A18P)

18CH-Output 20A Switching Power Supply Box for CCTV Camera (12VDC20A18P)
Price: US $ 30-32/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: 12VDC20A18P
Application: CCTV Cameras
Power: 240W
Size: 24.5*20.8*8.7cm
Weight: 2.42kg
Output Type: Single
Warranty: 2 Years
Output Power: 201 - 300W
Input Voltage: 110-220V
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Level 2 Power Distribution Equipment
Certification: IEC
Brand: Chinasky

Product Description

18CH-output 20A switching power supply Box for CCTV camera (12VDC20A18P)

Descrition:
12VDC20A18P: 18CH-output 20A switching power supply Box for CCTV camera
The CCTV power supply is primarily designed for WUF-GV, PTZ and camera of CCTV system. It's also used for access, building/house control, intrude alarm and other light-current. It is for desktop or wall-mounted installation.

Features:
  1. Power up to 18 CCTV CCTV surveillance cameras
  2. 12 Volts DC
  3. 20 Amp total output
  4. Max output current up to 1.6 Amp/Channel
  5. 18 individually PTC auto-reset fuses protected outputs
  6. Switch mode power supply (regulated voltage)
  7. Integral surge protection
  8. Individual LED power indication
  9. Individual PTC reset-able fuses
  10. Internal On/off safety power switch with LED indicator
  11. Beige metal housing

Technical specifications:
Model12VDC13A8PL
Power156W
Metal Case Dimension24.5×20.8×8.3cm
Net Weight2.2kgs
InputInput Voltage110/220VAC
Input Voltage Frequency50Hz-60Hz
Efficiency≥80%
Output

Output Voltage12VDC±5%
Output Current13A, 8 channels for 8 sets load
Output Ripple Noise(Vp-p)100mVp-p@25ºC/
Rated input voltage & Rated output load
Reply Time of Starting up≤3S  Input 100Vac, Rated output load
FuseType /RatingPTC  1.85A/60V
ProtectionOver Voltage ProtectionWhen over voltage occurs, it will switch to self-protection status to protect the load.
Over Current ProtectionWhen over current occurs, the corresponding channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal.
Short-circuit ProtectionWhen short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.
CircumstancesWorking Temperature0ºC-+50ºC
Storage Temperature-20ºC-+80ºC
RH20%-90%
Heat ReleaseNatural heat dissipation
ConnectionInputThree-pin socket
Output8 channels output
Dielectric StrengthInput to output1500Vac/60S  leakage current≤1.5mA
Input to FG1500Vac/60S  leakage current≤2.0mA
FG to output500Vac/60S   leakage current≤1.5mA
Insulating strengthInput to output≥20MΩ/500VDC@25ºC
Leakage Current≤0.21mA @AC110V(220V)/25ºC
RG≤0.011Ω@DC8V/25A/25ºC

Minimum Order Quantity:Negotiable
Packaging Details:Inner Paper Box Size: 25*21*9.3cm
Outer Carton Size: 52*40*23.5cm
Packing rate: 8PCS/CTN
Delivery Time:5-12 working days
Payment Terms:T/T, Western Union

Competitive Advantages:
  1. This is one of the best 12VDC CCTV power supply boxes on the market for security cameras.
  2. We replace the cheap "glass fuse" with "PTC" Reset Fuses which will Auto Reset after you fix the short. You don't have to run around town try to find the replacement fuses. All you have to do is to fix the shorts.
  3. The red light shorts indicator helps you to know which camera is not working.
  4. Dependable and long lasting
  5. Warranty: 2 years
Application:
CCTV Cameras, CCTV Accessories, cctv system, cctv Security, cctv coaxial cable installation, CCTV surveillance accessories



Chinasky Electronics Co., Ltd. is the leading manufacturer and exporter of CCTV products in China. We are specialized in developing, manufacturing and exporting CCTV power supplies, Video Baluns, BNC connectors, CCTV cables, CCTV Tools & CCTV testers and other CCTV accessories with more than 10 years' experience in the security and surveillance industry. We have established business relationships with customers all over the world with good reputation and feedback for our products and service.

The mission of Chinasky Electronics is to provide quality products and competitive prices to our customers. With a strong research and development team, well-established production capacity, and very strict quality control system, we are able to ensure your security and surveillance needs. We have an energetic, enthusiastic, professional and powerful sales team to be in charge of all exporting inquiries and orders and provide quality advice to achieve customers' OEM and ODM requirements.

In order to guarantee our products to be exported and re-sold in other countries safely, our products are in accordance with global testing standards, such as CE (EMC & LVD), IEC60950-1, UL/cUL, SAA, GS, TUV, PSE, RoHS, etc. We work with accredited third party labs (SGS, INTERTEK, ANBOTEK, CPC) to ensure all products we supply are compliant and valid for import into the target markets. We have made a lot of certificates and test reports for our exported products from accredited third party labs.

We aim to create long-term, win-win partnerships with our customers. We are aware that trust and communication are essential for long-term partnerships. We value our customers' success as well as ours.

If you are interested in any of our products and services, please don't hesitate to contact us. We are ready to reply you within 24 hours after receipt of your request.
