EZCON Telecom Technology(Changzhou)Co., Ltd. >> 18GHz Test Cable

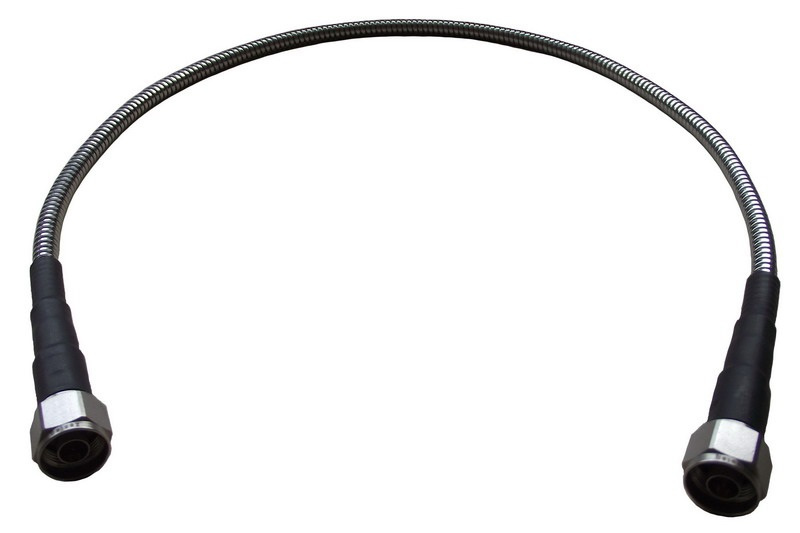

18GHz Test Cable

18GHz Test Cable
Price: US $ 49.8/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: L/C,T/T
Prod Model: Test Cable
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Coaxial Cable
Conductor Material: Copper
Cover Material: PVC
Certification: RoHS
Type: Test Cable
Model: N
Brand: Ezcon

Product Description


PIM Test Cable
Product data






Part NumberDescriptionInsertion loss  (dB) 25ºC
ConnectorsCable Lengthup to 2GHz2 to 3GHz3 to 6GHz6 to 10GHz10to 18GHz

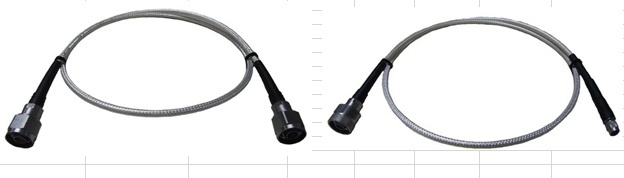

N, Male, Straight / N, Male, Straight1000mm< 0.68< 0.87< 1.24< 1.67< 2.36

N, Male, Straight / SMA, Male, Straight1000mm< 0.68< 0.87< 1.24< 1.67< 2.36
















Electrical Data






Impedance50Ω


Operating frequency18GHz


Insulation resistance≥5000


Dielectric withstand voltage AC r.m.s≤1500V


Capacitance96.4pF/m


Velocity of propagation70%



Shielding effectiveness>-90dB


Return loss≤-30dB(upto3GHz) ≤-27dB(3to6GHz)                      ≤-21dB(6to12GHz) ≤-19dB(12to18GHz)

up to 1GHz1 to 2GHz2 to 3GHz3 to 5GHz5 to 6GHz
Insertion loss vs.shaking (dB)< 0.03< 0.03< 0.03< 0.03< 0.03
Insertion loss vs.bending (dB)< 0.03< 0.03< 0.03< 0.05< 0.05
Phase stability vs. bending (degree) +/-2.0 +/-3.0 +/-4.0 +/-6.0 +/-6.0








Mechanical Data






Min. bending radius dynamic

50
mm

Recommended mating torque

0.7~1.1
Nm









Environmental Data






Operating termperature

-55ºC to +85ºC



2002/95/EC (ROHS)

compliant











Material Data






Piece Parts
Material

Surface Plating
center contact

Beryllium copper

Au
body

Stainless steel

Passivated
coupling nut

Stainless steel

Passivated
insulator

TPX RT18

-
ALL THE PRICES ARE BASED ON THE LENGTH OF 1 METER
EZCON Telecom Technology (Changzhou) Co., Ltd. Was formally founded on January 19, 2013, in Changzhou City, Jiangsu Province, Peoples Republic of China. EZCON is a product and solution provider, the company provide high quality, high performance and low cost cable assembly/connector products. EZCON engages in R&D, for telecom and electronics products with focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors and high end test/calibration products. The company has the capacity of product design, engineering service, low cost production/sourcing, assembly, and testing. EZCON combines the advantages of low cost production in China with a high level of engineering expertise, service, and quality. EZCON Telecom Technology Co. Is a US-China joint venture. EZCON CEO, Dr. Zemin Liu is a recognized RF connector industry expert. Dr. Liu developed and designed the industry's most advanced EZCON series connector. He has over 20 years work experience working in the United States, Sweden, and China for world-renowned companies (Commscope, Tyco, Atlas Copco, Amphenol etc). The company management team consists of top technical experts and business development professionals in the telecom industries. EZCON Telecom Technology Co. LTDA.

Leading supplier for high quality test products (frequency range DC-100 GHz) and RF cable assemblies including test cables, adaptors, and calibration kits etc for R&D and production test applications as well as RF connectors and cable assemblies for wireless base stations. Our customers includes world-class telecom equipment suppliers as well as operators such as Commscope, Amphenol, AT&T, Huawei, Synergy Telecom (India) etc.
