18V Brushless Motor for Impact Driver

Name: 18V Brushless Motor for Impact Driver
Brand: all-electronics-online.com
SKU: 621056914
Availability: InStock
Rating: 4.8 (104 reviews)

Price:	US $ 7.6-15.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	E48-C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	12V ~ 48V DC
Power:	500W_900W
No Load Speed:	20000 Rpm_30000 Rpm
Efficiency:	> 80%
Application:	Power Tools
Operating Speed:	High Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Type:	E48-C
Brand:	Rongde

Product Description

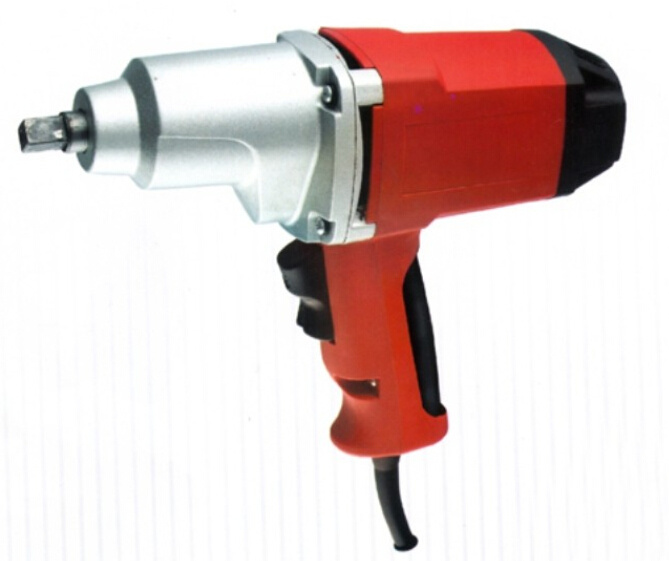

E48-C Applied to Impact Driver
Rated Voltage:12V ~ 48V DC
Power:500W-900W
No load speed:20000 rpm-30000 rpm
Efficiency> 80%
Position Control Mode:With a HALL
Output shaft Diameter:5mm (customization)

motor characteristics Motor no-load test run 3 minutes
NO.	Items	Parameter	Notes
2.1	No-load current	<5A
2.2	No-load speed	23500Rpm ±10%
2.3	Rated current	16A
2.4	Rated speed	18000 RPM±10%
2.5	Rated torque	/
2.6	Maximum torque	/
2.7	Insulation resistance	>50MΩDC 500V )
2.8	Withstand voltage	750V 5mA 1S No the phenomenon of puncture	Between the winding and iron core.
2.9	Noise	< 98dB	Motor test distance of 0.3M at the maximum sound pressure.
2.10	Life	> 3000H	Test conditions to ensure that the motor can´t continuous work long hours under overload conditions.

E48-C
Widely used in Dc cordless power tool and gardening tool Industry due to high efficiency and powerful dynamical system.
Such as:Impact Driver
With long life ,can according to different planting lotus meet the working life of the 500 - 50,000 hours.

Chuzhou Rongde Electronic Science and Technology Co., Ltd was established in March, 2010. It covers land area of 7, 000 sqm and potentially holds 150 employees to work, which is one of the largest Peer enterprises in Chuzhou.

Rongde has extensive experience in manufacturing industry, and in order to meet the high demands of our customers, Rongde focus on the development and production of professional power tools series motor, brushless motor and micro wind turbines.

During the past five years, Rongde has been appraised successively as the provincial high-tech enterprises and the excellent private enterprise.

Rongde has professional R&D team and production team, which concentrate on Small &Special Electrical Machines and lay a strong foundation for product upgrading.
