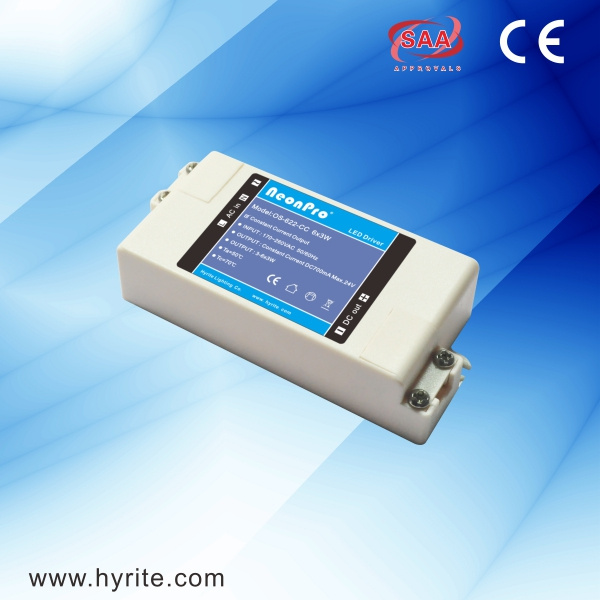

18W 700mA Constant Current LED Driver for LED Lighting

Name: 18W 700mA Constant Current LED Driver for LED Lighting
Brand: all-electronics-online.com
SKU: 772684005
Availability: InStock
Rating: 4.7 (74 reviews)

Price:	US $ 3.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OS-622-CC-700
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Constant Current LED Driver
Output:	18W
Input Voltage:	100-260V
Output Current:	700mA
Output Voltage:	4~12V
Efficiency:	80 %
IP Rating:	IP20
Size:	874320mm
Material:	Plastic Case
Operating Temperature:	-25~50 Oc
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	Neonpro
Power Supply Voltage:	AC100-260

Product Description

18W 700mA Constant Current LED Driver for LED Lighting

Feature of 18W 700mA Constant Current LED Driver for LED Lighting:
1. Output: Constant current.
2. Slim body, easy for installation.
3. Guarantee: 2 years.

Application of 18W 700mA Constant Current LED Driver for LED Lighting:
Used for LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc…

Specification of 18W 700mA Constant Current LED Driver for LED Lighting:

Model no.	OS-622-CC-700
Model series	OS
Input voltage	100-260 VAC/170-260 VAC 50/60 Hz
Power	18W
Output type	Constant current
Power factor	Low
Output voltage	10-24 V max
Output current	700mA
Typical LED loading	3~6*3 W max
Operating temperature	-25~50ºC
Installation	Indoor
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	874320 mm
Weight(kg)	0.1000

FAQ of Constant Current LED Driver for LED Lighting:

1. Shipment: Ocean or air transportation, international express

2. Normal lead time: any time for in stock goods and 7-10 days for out of stock products

3. Price term: FOB, C&F, EXW; 30% before production, 70% before shipment.

4. Supply ability: 50000 units/month

5. MOQ: 1 carton (samples are available)

6. Discounts: We offer discount for big quantity

7. OEM and ODM service.

Contact Way:
Sales Department: Wing Xu
Hyrite Lighting Co. (NeonPro) Since 1993

Tel: +86(757)88382138 (Ext.333); Fax: +86(757)81200369

Website: http://www.hyrite.com/,
http://hyrite-leddriver.en.made-in-china.com/

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
