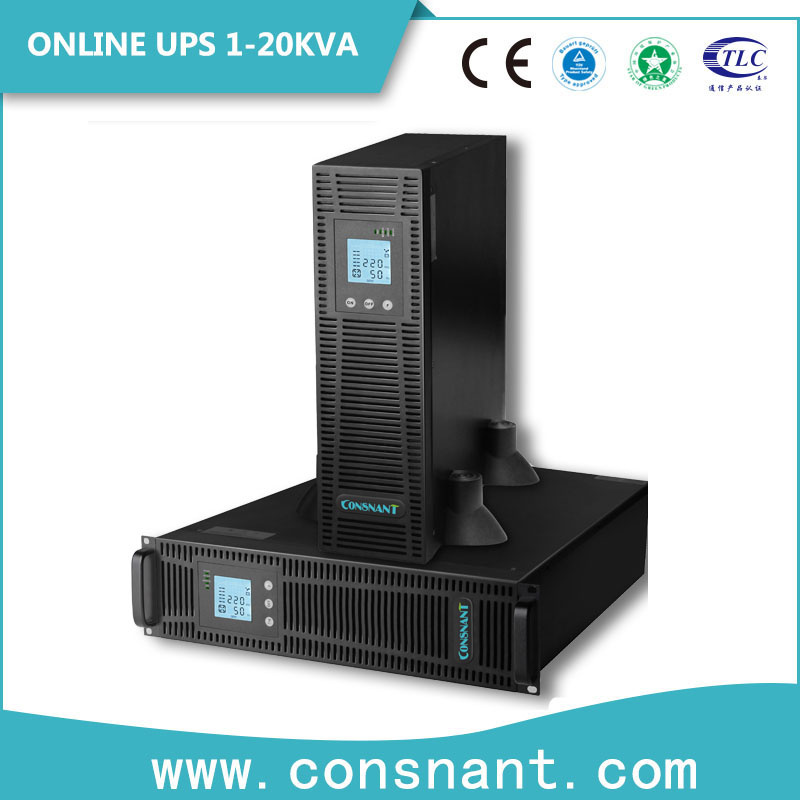

19' Rack Mount Online UPS for Telecom 1-10kVA
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
CNH110RT |
| Phase: |
Single Phase |
| Type: |
On-line |
| Application: |
Office |
Product Description
Model: CNH110RT 1-10KVA
Nominal voltage: 208/220/230/240VAC
Nominal frequency: 50/60Hz
Output Power factor: 0.8
Key Features:
1) Large blue LCD display interface in English, user-friendly
2) Rack-Tower convertible
3) With ECO (economic operation mode) can be highly efficient energy-saving, reduce user costs
4) Double-conversion online design, so that the output of the frequency UPS tracking, lock-in voltage regulator,
filter noise low distortion, without interfering with the pure sine wave power supply fluctuations.
5) Advanced Digital Signal Processing (DSP) microprocessor technology to ensure the consistency and reliability
of UPS.
6) With battery hot-swape function
Stable and Reliable,Comprehensive Protection :
The CNH110RT series online intelligent UPS, adopts DSP all-digital control technology, with more excellent output index and multiterm innovation design, able to provide full protection for high-performance server, internet equipment, telecommunication system, industry process and other key equipments. Tower and Rack Mount convertible function design, greatly improve the UPS adaptability to the installation modes.
Tailored for Grid Environment:
1) Output power factor up to 0.8 applicable to the tendency of future load evolution, and deliver higher payload capacity.
2) Active power factor correction (PFC) technology allows the input power factor approaching to 1, dramatically reducing the immunity on utility grid.
3) Wider range of input voltage tailored for grid can be suitable to all severe environments.
4) Excellent input frequency range makes UPS suitable to different power supply devices, i.e. generator set.

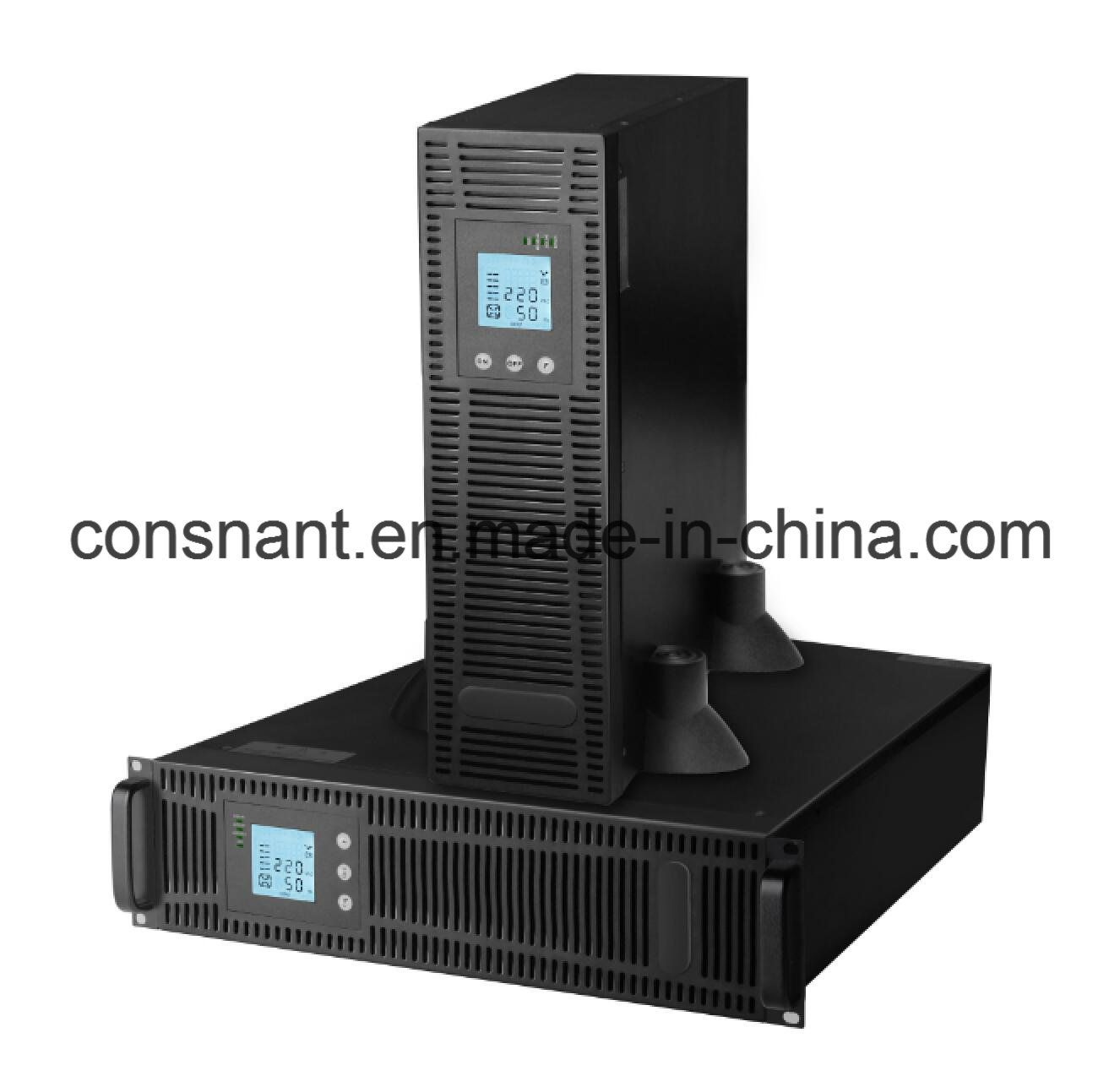

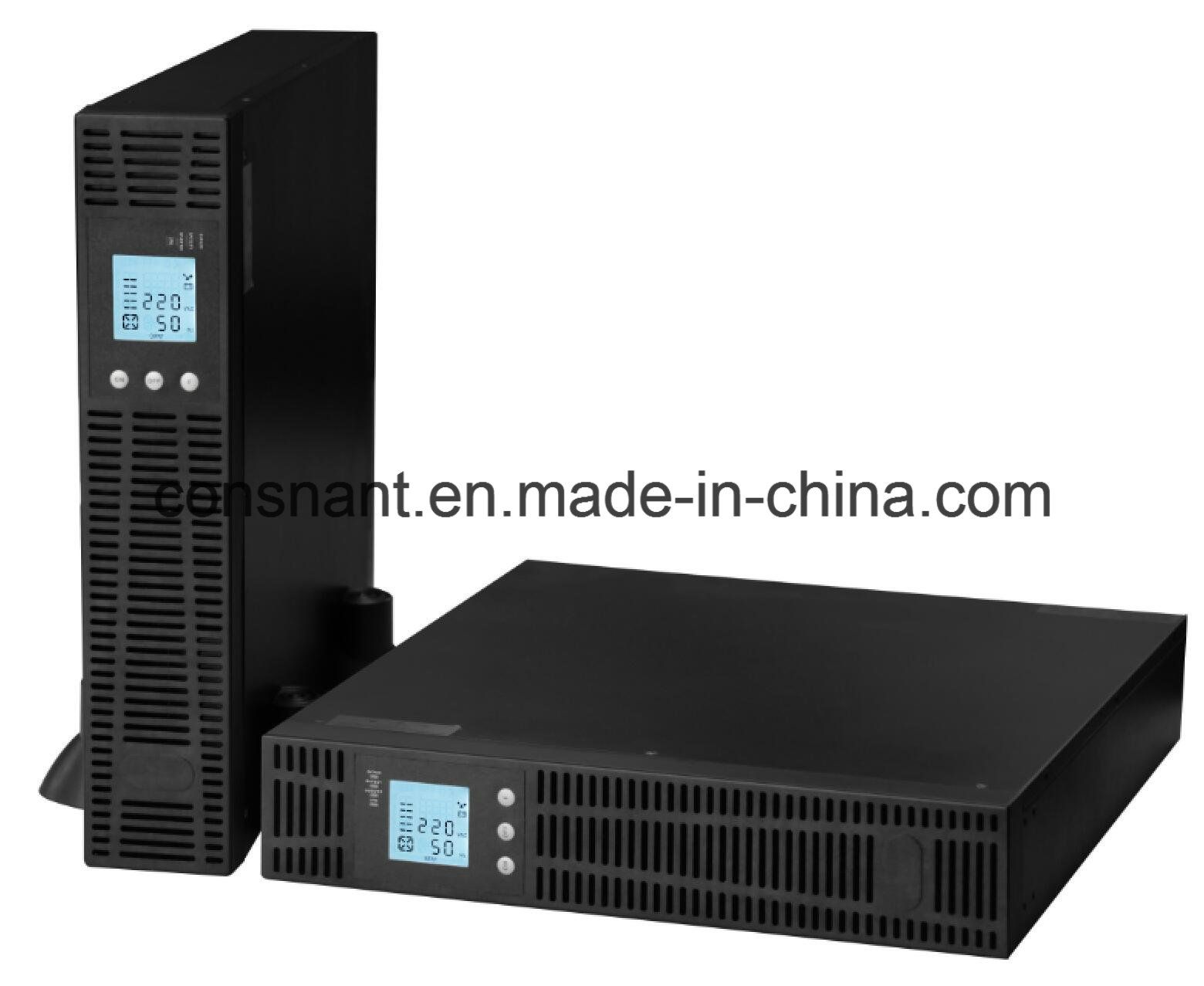

Rack-Tower convertible:
1) Rack-Tower convertible, the lug required for rack installation and the stent required for tower installation were random standard configuration.
installation and the stent required for tower installation
were random standard configuration
2) Unique optional angle LCD screen patented design,the perfect match tower / rack conversion installation mode. Through the function buttons on the panel, user can easily select the direction of the tower installation mode or rack mounted model is in consistent with the LCD screen text display, and do not need to turn the LCD screen, which can be easily view the LCD display data contents from normal human standing perspective.
ECO (Economic Operation Mode) Function:
The power to the load is supplied from the mains input when the mains input within a fixed range, and the inverter is idle until the mains input fails. With ECO (economic operation mode) can be highly efficient energy-saving, reduce user costs.
User-friendly interface:
LCD display accurate UPS working environment and working status to the user, through the LCD display panel can set output voltage and frequency, at the same time can set ECO mode, convenient for user to operate the UPS.
Various Choice and Intelligent Management:
1) Large LCD display, show loading power ,batteries capacity, input and
output factor and error code, and easy for user to operate and
maintain.
2) RS232 local monitor. The RS232 is standard with UPS provide free monitoring software.
3) USB port is optional. Trough the USB cable can be connect with computer, and use the bundled monitoring software can be easy realizing the local monitoring
4) USB communication port card is optional. For the CNH110RT series UPS, in addition to the fixed USB interface, you can also choose Goldfinger snap-gauge structure port interface. user can invest by stages, purchase when you have demand.
5) SNMP card is optional. SNMP can connect UPS with Etherne for remote monitor.
DSP Full-digital Control:
Adopt digital control, each performance index excellent, to avoid
the analog device failure risk, and increase the control system
stability.
Flexible Settings and Change due to the Demand:
1) Extensive expansion capabilities, comprehensively meet customer's requirements
2) Online maintenance function, can be safety to maintain while continuously provide the power to the loads
Intelligent Power monitoring and Management Software WinPower 2003 :
1) Support Microsoft Windows95/Me/NT/2000/XP/Unux operating system. Suit for TCP/IP local area network;
2) Support timing boot up / shut off UPS function;
3) Support timing UPS self-test function;
4) Support graphically displayed UPS status function in real time;
5) Support multi-language and English platform;
Technical Specifications:| Model | CNH110RT 1-10KVA |
| 1KVA | 1KVA-S | 2KVA | 2KVA-S | 3KVA | 3KVA-S | 6KVA | 10KVA |
Capacity
| 1KVA/800W | 2KVA/1600W | 3KVA/2400W | 6KVA/4800W | 10KVA/8KW |
| Nominal Voltage | 220/230/240VAC Single phase 2 wire+G
|
| Nominal Frequency | 50/60HZ
|
| Input | |
| Voltage Range | 115~300VAC
| 120~275VAC
|
| Frequency Range | 50HZ: (46~54HZ); 60HZ:(56HZ~64HZ)
|
| Power Factor | > 0.98
| 0.99 |
Output
| |
Voltage Precision
| 220/230/240X(1±2%)VAC
|
Frequency Precision
| 50/60Hz±0.05Hz
|
| Power Factor | 0.8
| 0.8/0.9(Optional)
|
Harmonic Distortion
| Linear load<3% Non-linear<6%
|
Overload Capacity
| load > 110% for 47s;
l o ad > 150% for 25s;
load > 200% for 300ms;
| 105% < load ≤125% for 60s;
125% < load ≤150% for 30s;
load >150% for 0.5s. |
| Current Crest Ratio | 3:1 |
| Transfer time | 0 ms(AC mode↔DC mode);(AC mode↔Bypass<4ms) |
| Battery | |
| DC Voltage | 36VDC | 72VDC | 96VDC | 192VDC or240VDC |
| Recharge Time | 5 hours to 90%(it means standard model which battery inside UPS) |
| Charging Current | 1A | 4A/8A | 1A | 4A/8A | 1A | 4A/8A | 4A |
| Panel Display | |
LCD
Communication | UPS status, input/output voltage and frequency, battery voltage, capacity, load temperature, history records, adjust voltage, ECO mode |
| Communication port | RS232, SNMP Card(Optional),USB port(Optional) |
| Working Environment | |
Temperature
| 0ºC~40ºC |
| Relative Humidity | 0~95%(Non-condensing)
|
| Storage Temperature | -25ºC~55ºC
|
Elevation
| 1500m |
| Noise Level | <45dB | <50dB | <50dB |
CNH110RT Series Technical Specifications| CNH110RT 1-10KVA |
CNH110RT (standard model)
| | Capacity
| Dimension ( Wx D x H ) mm | N.W(kgs)
| G.W(kgs)
|
| 1KRT | 1KVA/800W | 482*450*88(2U) | 16.5 | 18.5 |
| 2KRT | 2KVA/1600W | 482*450*176(4U) | 22 | 24 |
| 3KRT | 3KVA/2400W | 482*450*176(4U) | 26 | 28 |
| 6KRT | 6KVA/4800W | 482*680*132.5(3U) | 18 | 20 |
| 10KRT | 10KVA/8KW | 482*680*132.5(3U) | 22 | 25 |
CNH110RT standard model
without battery) | 2KRT | 2KVA/1600W | 482*450*88(2U) | 10.5 | 13.5 |
| 3KRT | 3KVA/2400W | 482*450*88(2U) | 11.5 | 14.5 |
CNH110RT (long back up
time model)
| 1KRT | 1KVA/800W | 482*450*88(2U) | 9 | 11.5 |
| 2KRT | 2KVA/1600W | 482*450*88(2U) | 11.5 | 14.5 |
| 3KRT | 3KVA/2400W | 482*450*88(2U) | 12.5 | 15.5 |
| 6KRT | 6KVA/4800W | 482*680*132.5(3U) | 20.5 | 23.5 |
| 10KRT | 10KVA/8KW | 482*680*132.5(3U) | 24 | 27 |
