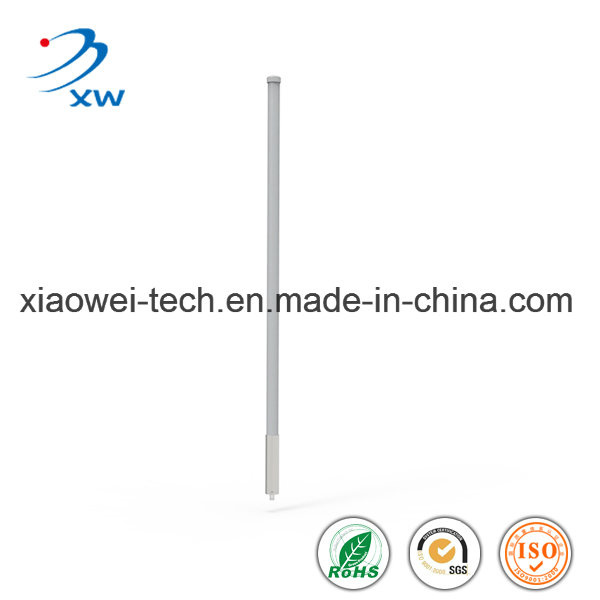

1920-2170MHz 11dBi Wall Mounting Base Station Antenna

Prod Model:	1920-2170MHz
Color:	White
Gain:	11dBi
Polarization:	Vertical
Radome Material:	ABS
Usage:	Base Station
Material:	Cu
Directionality:	Directional Antenna
VSWR:	1.5~2
Operating Wavelength:	Customization

Product Description


                             1920-2170MHz 11dBi  Wall Mounting Base Station Antenna

Company profile

Shang hai Xiaowei Equipment Co., LTD (Xiaowei) was established in 2011, Shanghai, which is a company  covering cable and accessories manufacturing, real estate, engineering  service and investment &trading.
     As a National wide wire &cable supplier Xiaowei continually provide different quality products in the telecom communication fields, the main product is 7/8 feeder cable, 1/2 feeder cable, feeder claim, feeder tools, all kind of the male, female, DIN, connector feeder connector, feeder grouding kit, grounding bar, low loss 7/8 jumper cable and 1/2 jumper cable, indoor optic jumper cable  and outdoor fiber cable, splitter and coupler, Dual and trible band antanna, GPS antenna and GPS cable all the accessories in the telecom field.  Xiaowei also supply VHF vabor phone, WLAN system.
      Xiaowei have advance manufacturing product line, stanard factory, we have long co-operation with the Chinese main telecom operators such as China Mobile, China Unicom, China Telecom. And the electric power operator such as National Electric network company, Southern Electric power company. Xiaowei provides total solution for telecommunication, power grid, railway, engineering, green energy, automobile industries, etc.
         Xiaowei particularly focused on the QoS and creating value for its clients and stakeholders, continuously invest in R&D, marketing & service networks, meeting and exceeding the precise needs of our customers national wide.  With the develop of the business, Xiaowei extend  the service to the international trading.
Specification

Frequency Range	1920-2170MHz
VSWR	<1.5
Input Impedance	50Ω
Gain	11±0.5dBi
Polarization	VERTIAL
Horizontal Beamwidth(3dB)	360°
Vertical Beamwidth (3dB)	9°±1.5°
Electrical Downtilt	0°
Max, power	150W
Connector Type	7/16DIN FEMALE
Intermediation IM3	≤-107dBm
Height	≤1.3m
Weight	1.1kg
Rated Wind Velocity	210km/h
Diameter	φ43mm
Diameter of installation pole	φ30-φ50 mm
Working Temperature	-40ºC~+60ºC

In accordance with the installation sketch, drill a hole of Φ35mm in the ceiling.
Screw the fixing nut to fasten the antenna on the ceiling.  The ceiling's thickness is at most 20mm.

2. Storage and transportation:
A. The antenna must be stored in room temperature and dry environment;B,Handle the antenna with care

3. Attention: The antenna mustn't be near to fire.






For more information, please feel free to contact us!!
