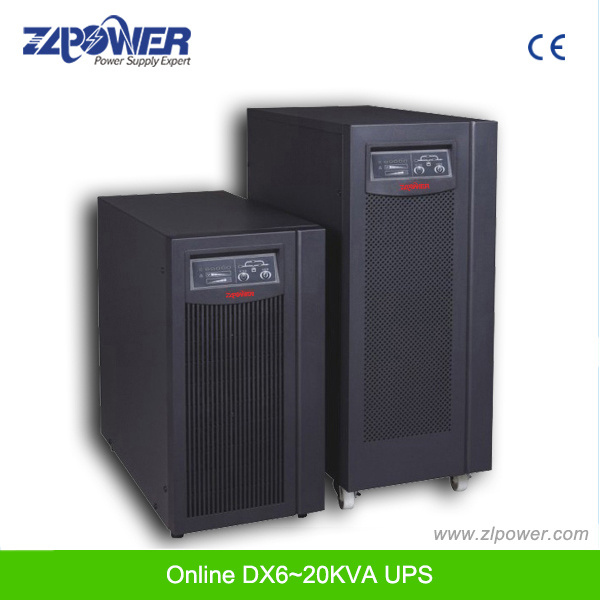

Shenzhen ZLPOWER Electronics Co., Ltd. >> 192VDC 6kVA 10kVA 15kVA 20kVA UPS, No Breaks UPS Usv/Uninterruptible Power System (DX/EX6K~DX/EX3120KL)

192VDC 6kVA 10kVA 15kVA 20kVA UPS, No Breaks UPS Usv/Uninterruptible Power System (DX/EX6K~DX/EX3120KL)

192VDC 6kVA 10kVA 15kVA 20kVA UPS, No Breaks UPS Usv/Uninterruptible Power System (DX/EX6K~DX/EX3120KL)
Price: Negotiable/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union,Money Gram
Prod Model: DX/EX6K~DX/EX3120KL
Markets: North America,South America,Eastern Europe,Africa,Oceania,Mid East,Western Europe
Output Voltage: 220/230/240VAC
Wave: Pure Sine Wave
Display: LED Indicators/LCD Digital Display
Technology: Double Conversion True Online UPS
Telecommunication Port: RS232, USB, Snmp
DC Input Voltage: 192VDC
Type: On-line
Phase: 6kVA-10kVA for 1 Phase /10kVA-20kVA For3 Phase
Protection: Over Load, Over Temperature, Over Charging

Product Description

192VDC 6kVA 10kVA 15kVA 20kVA UPS, No Breaks UPS SAI USV/Uninterruptible Power System

Uninterrupted power system, SAI, No Breaks, USV

UPS power supply 400VA-200kVA
11years UPS experience
CE ISO SGS
No breaks, SAI, USV, Uninterruptible power source
Including High frequency online UPS 1phase in/ 1 phase out
High/low frequency online UPS 3phase in/ 1phase out
High/low frequency online UPS 3phase in/3phase out

We are a leading manufacturer and exporter focus on UPS (uninterruptible power supply) and Inverter, Solar products:
1. High frequency online UPS&Rack mount UPS 1kVA-80kVA
2. Low frequency online UPS three phase upto 400kVA
3. Line interactive UPS & Offline UPS for desktop computer
4. Powerstar LW DC-AC inverter charger pure sine wave 1kw-6kw
5. Solar charge controller 12V/24V 40A, 60A
6. Solar battery/ UPS battery/GEL battery
7. Battery Cabinet & UPS SNMP card, AS400 card

APPLICATION:
Computer, Home, Office, Servers, Data-Center, Critical network devices, Sensitive
Electronic equipment, Telecom...

KEY FEATURES:
True on-line double conversion technology with advanced microprocessor control
Wide input voltage range
Zero transfer time
Protection against all type of power problems
Self test while start of the UPS
Site wiring fault warning
On-battery power-on function
Smart RS232 communication interface
Intelligent slot available
Sealed lead-acid, maintenance free battery.
UPS ModelDX/EX6KDX/EX6KLDX/EX10KDX/EX0KLDX/EX3110KLDX/EX3115KLDX/EX3120KL
UPS Capacity6KVA/4800W10KVA/8000W15KVA/12000W20KVA/16000W
InputNominal Voltage220V380V
VoltageRange176~276VAC304~478VAC
Frequency46~54Hz/56~64Hz
OutputVoltage220/230/240(1±1%)VAC
Frequency50/60Hz(adjustable)
50Hz AC Mode--Follow AC Mode( AC Range 46~54Hz)
 Battery Mode--50Hz(1±0.2%)
 60Hz AC Mode--Follow AC Mode( AC Range56~64Hz)
 Battery Mode--60Hz(1±0.2%)
Current Crest Ratio3 to 1
Output Wave FormSine Wave
Back-up TimeFull Load≥7′Depends on the capacity of the external batteries bank≥5′Depends on the capacity of the external batteries bank
Half Load≥20′≥13′
BatteryNominal Voltage192VDC
Transfer Time0ms
Overload Capacity105%~130% 10min, over 150%1min
CommunicationRS-232+Intelligent Slot
Operating EnvironmentTemperature0c~40c
Humidity15%~90%
Dimensions(W×D×H)mm260×570×717
Net Weight(Kg)90359338395555
About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
