19inch Rack Mount UPS 1kVA/2kVA/3kVA/6kVA/10kVA

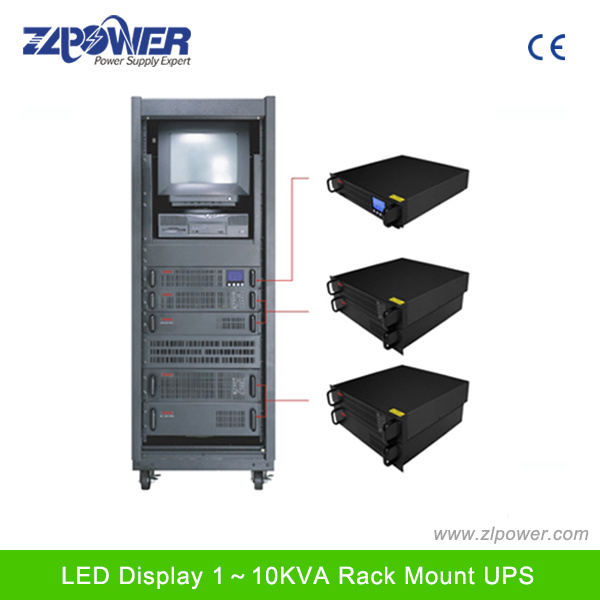

Name: 19inch Rack Mount UPS 1kVA/2kVA/3kVA/6kVA/10kVA
Brand: all-electronics-online.com
SKU: 690123745
Availability: InStock
Rating: 4.9 (98 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RM1K--RM10KL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Phase:	Single Phase With Ground
Nominal Voltage:	110-120vac or 220-240vac
Frequency:	46-54Hz
Waveform:	Pure Sine Wave
Phase:	Single Phase
Type:	On-line
Protection:	Overvoltage

Product Description

19inch rack mount UPS 1kVA/2kVA/3kVA/6kVA/10kVA

Rack UPS Advantages:
(1): UPS with Rack Mount design
(2): 19-Inch, 2U/3U Height Rack UPS
(3): Built-in UPS SNMP Card Slot
(4): Online, Pure Sine Wave UPS Model

Rack UPS Key Features:
1: UPS with Microprocessor control guarantees high reliability
2: Rack Mount Design
3: Comprehensive self-protection design
4: Audible alarm mute
5: Cold start function
6: Auto self-testing system while turning on UPS
7: Wide input voltage range
8: Tower and rack mount available
9" 19-inch rack mount available, with 2 U height for Rack UPS 1-3kVA, 3U for Rack UPS 6kVA -10kVA

10: With Sealed lead acid, maintenace free UPS batteries pack
11: Built-in UPS SNMP Card Slot
12: With LCD/LED Display for UPS
13: Excellent quality same as Santak, APC and Eaton UPS
14: Can set nominal voltage, nominal frequency, and bypass voltage range via UPS LCD panel key-press
15: Protection: Overload, Short Circuit, Overcurrent, Unbalanced Loads, Overvolta. Can solve power problems, such as: Power failure, power sags, high voltage spikes, switching transients, power surges, noise, frequency

CE certificate
Delivery time: 10-15days

Rack Mount UPS Model

T1KR

T1KRL

T2KR

T2KRL

T3KR

T3KRL

T6KRL

Capacity

1000VA/700W

2000VA/1400W

3000VA/2100W

6KVA/4200W

Input

Voltage

(115~300)VAC

(176~276)VAC

Frequency

46~54Hz/56~64Hz

Output

Voltage

220/230/240(1± 1%)VAC

Frequency

50/60Hz(Adjustable)
50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz), Battery Mode: 50Hz (1± 0.2%)
60Hz AC Mode: Follow AC Mode (AC Range 56~64Hz), Battery Mode: 60Hz (1± 0.2%)

Output Wave Form

Sine Wave

Back-up Time (Minute)

Full Load

≥ 5

Depends on the capacity of the external batteries bank

≥ 9

Depends on the capacity of the external batteries bank

≥ 5

Depends on the capacity of the external batteries bank

Half Load

≥ 14

≥ 21

≥ 15

Battery Nominal Voltage

36VDC

96VDC

240VDC

Transfer Time

0ms

Overload Capacity

110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms

105%~130% 10min, over 150%1min

Communications

RS-232+Intelligent Slot

Operating Environment

Temperature

0~40Degree

Humidity

15%~90%

Dimensions(W*D*H)mm

482.6*450*88

482.6*600*130

Net Weight(Kg)

10.5

11.5

12.5

19.5
