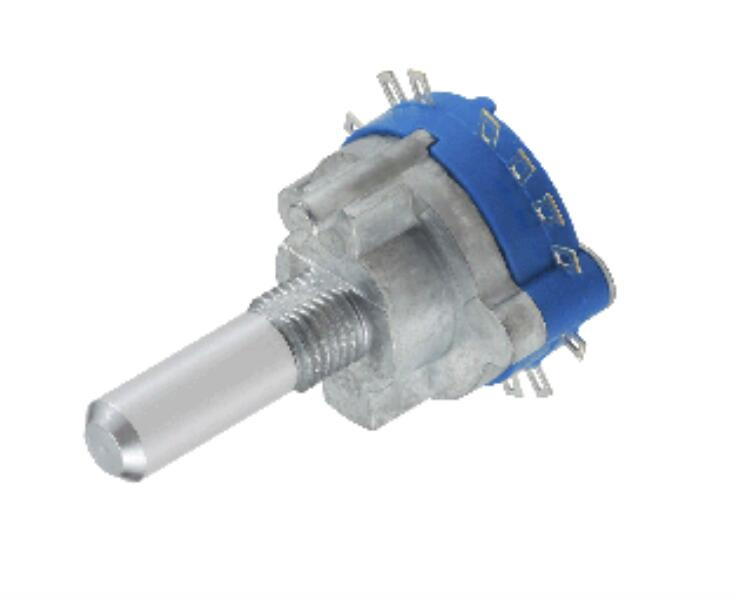

19mm 4 Pole 3position Rotary Switch
| Price: |
US $ 1.3-3/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
SR19 |
| Rotary Number: |
Single Button |
| Usage: |
Digital Products |
| Standard: |
Standard |
| Structure: |
Self-Reset |
| Operation: |
Open Type |
| Certification: |
RoHS |
| Condition: |
New |
Product Description
Product introduction
| Poles | 2,3,4 |
| Positions | 3-6,2-4,2-3 |
| Changeover angle | 30±3° |
| Changeover timing | Non shorting |
| Rotational torque | 700±150gf·cm |
| Actuator configuration | 18-tooth serration |
| Actuator length | L: 15mm |
| Operating temperature range | -30ºC to +65ºC |
| Rating (max.)/(min.) (Resistive load) | 0.15A 12V DC/50µA 3V DC |
| Electrical performance | Contact resistance (Initial performance/After lifetime) | 50mΩ max./100mΩ max. |
| Insulation resistance | 100MΩ min. 500V DC |
| Voltage proof | 500V AC for 1 minute |
| Mechanical performance | Terminal strength | 5N for 1 minute |
| Actuator strength | Rotational direction | 1N·m |
| Push direction | 100N |
| Wobble of actuator (load at the tip of shaft: 5N) | Measuring position from mounting surface | 10mm |
| Shaft wobble (max. value) | 0.17mm max. |
| Applicable mounting dimension | 15mm |
| Durability | Operating life without load | 10,000 cycles 70mΩ max. |
| Operating life with load (at max. rated load) | 10,000 cycles 100mΩ max. |
| Environmental performance | Cold | -40±2ºC for 96h |
| Dry heat | 85±2ºC for 96h |
| Damp heat | 40±2ºC, 90 to 95%RH for 96h |
Soldering Conditions
| Reference for Dip Soldering |
| Dip soldering | Soldering temperature | 260±5ºC | | Duration of immersion | 10±1s |
|
| | Reference for Hand Soldering |
| Soldering temperature | 350±10ºC | | Soldering time | 3+1/0s |
|
|
|
Packaging & Shipping
1) Packaging
Carton Size: 47*34*37cm, 200pcs/polybag , 1600pcs/carton , Net Weight: 20KG
2) Shipping
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms
T/T, L/C, PayPal; 30% deposits; 70% balance before delivery
