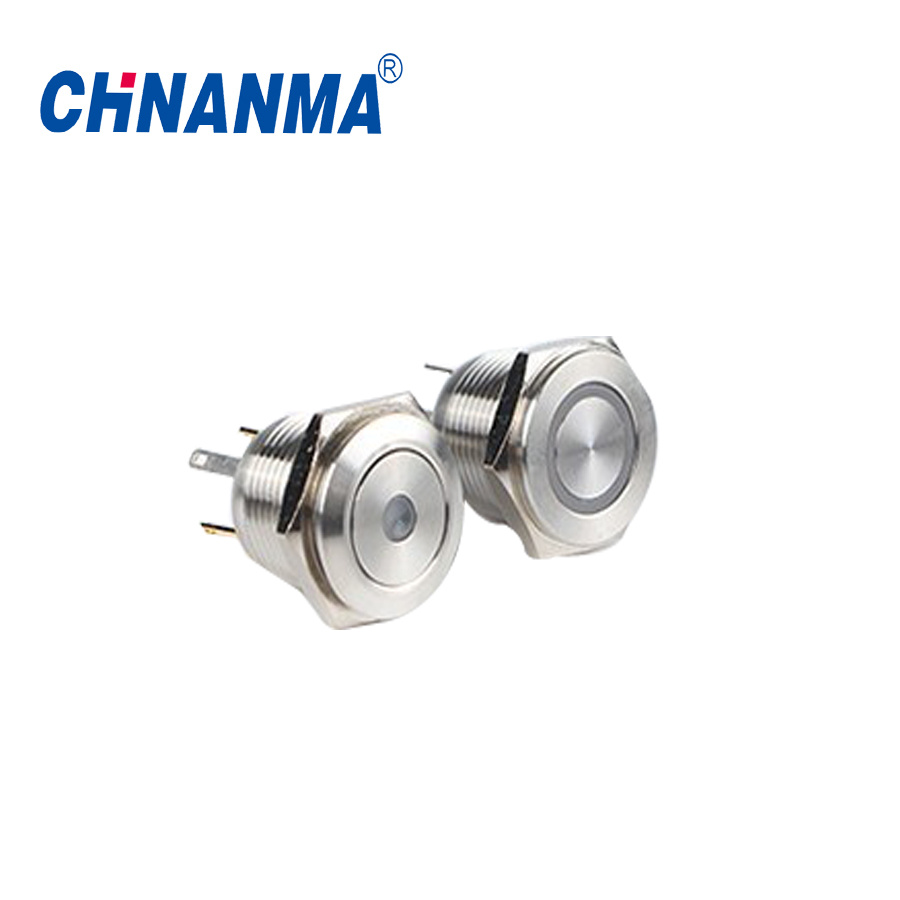

19mm Car Push Button Switch, Vandal Proof Doorbell Buttons, New Model Switches

Name: 19mm Car Push Button Switch, Vandal Proof Doorbell Buttons, New Model Switches
Brand: all-electronics-online.com
SKU: 728674522
Availability: InStock
Rating: 4.6 (44 reviews)

Price:	US $ 1.88-1.99/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	A19-B-10
Type:	Normal Open
Usage:	Check Button
Kind:	Double-pole on-off Switch
Brand:	Chnanma

Product Description

Size: Ø 19mm
Switch Rating: 5A/250VDC
Front shape: Flat Head
Contact configuration: 1NO1NC
Operation type: Momentary / Latching
Ring illuminated
LED color: Red (other options: Blue, Green, Yellow, Orange, white)
LED voltage: 12V (other options: 6V, 24V, 110V, 220V)
Crust material: Stainless steel (S) Aluminium Alloy Black anodized(A) Nickel plated brass (N)
Grades: IP65 and IK09
Approval:CE,CCC,RoHS Compliant

Switch Operation

Rated Insulation Voltage Ui			250V
Thermal Current lth			5A
Rated voltage			12V	24V	110V	220V
Rated Operation Curremt	AC 50/60Hz	Resistive load			5A	3A
	AC 50/60Hz	Inductive load			3A	2A
	DC	Resistive load	5A	5A	1A	0.5A
	DC	Inductive load	2A	2A	0.2A	0.1A
Contact material			Silver Alloy

Lamp ratings

Lamp type	LED Lamp(AC/DC)
Rated voltage	AC/DC6V,AC/DC12V,AC/DC24V,AC/DC36V,AC/DC110V,AC/DC220V
Rated Current	About 15mA
LED color	Red,Green,Yellow,Orange,Blue,White
Life	About 40,000 hours
Dropping Way	Inner resistance(except for some products)
Lamp	Using AC/DC LED lamp,the terminal is have no difference of anode and cathode
Circuit	Using inner resistance,do not need connect outer resistance

Note:DC LED and other voltage can be made to order.
