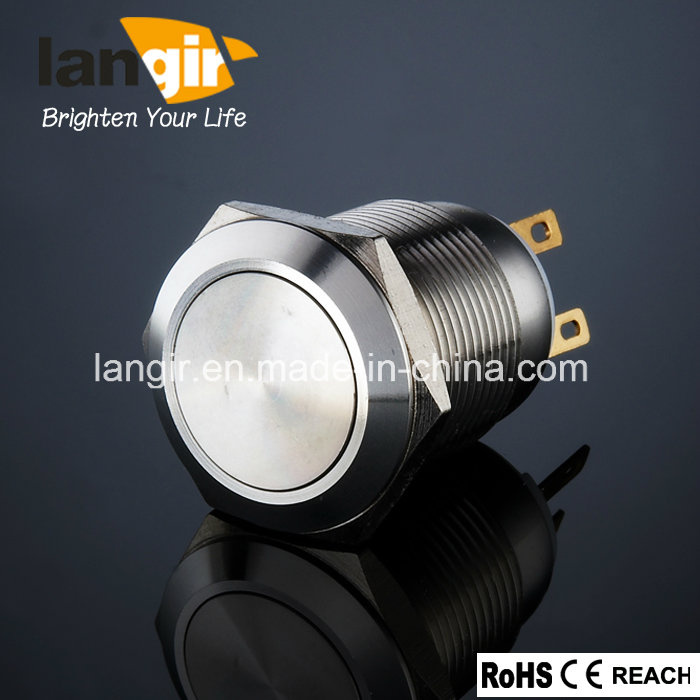

19mm Illuminated Push Button Switches Made of Stainless Steel

Name: 19mm Illuminated Push Button Switches Made of Stainless Steel
Brand: all-electronics-online.com
SKU: 743941725
Availability: InStock
Rating: 4.3 (138 reviews)

Price:	US $ 3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	40/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	L19F-M1-S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Stainelss Steel
Function:	Momentary
Contact:	1no1nc
IP Grade:	IP65
Head:	Flat Actuator
Type:	Normal Open
Usage:	Reset Button
Kind:	1no1nc
Brand:	Langir

Product Description

- Anti-Vandal IK09 / Sealed IP65
- Normal Open / Normal Closed
- Domed / Flat / High Flat
- Stainless Steel
- 1, 000, 000 Cycles Momentary

- Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position.
- Latching: Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again

Model	L19F	L19-F/R	L19-F/D
Front Shape	Flat Round	Flat Round	Flat Round
Terminal Type	Screw Pin (2.8x0.5mm)
Max. Switch Rating	5A/250V AC
Contact Resistance	≤50mΩ
Insulation Resistance	≥1000mΩ
Dielectric Strength	2000VAC
Operation Temp.	-20°c ~ +55°c
Mechanical Life	1, 000, 000cycles
Electrical Life	50, 000cycles
Contact Material	Silver Alloy
Torque	5~14Nm
Operation Pressure	3~8N
IP Degree	IP65 / IK10
Material
Button	Stainless Steel / * Anodized Aluminum
Body
Base	PA
LED Spec .
Type	Ring Illuminated(LED)	Dot Illuminated(LED)	--
Rated Voltage	6V/12V/24V/36V/110V/230V		--
Color	R, G, Y, O, B, W		--
Life	Approx, 40, 000hours		--
RoHS,REACH Available

Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
