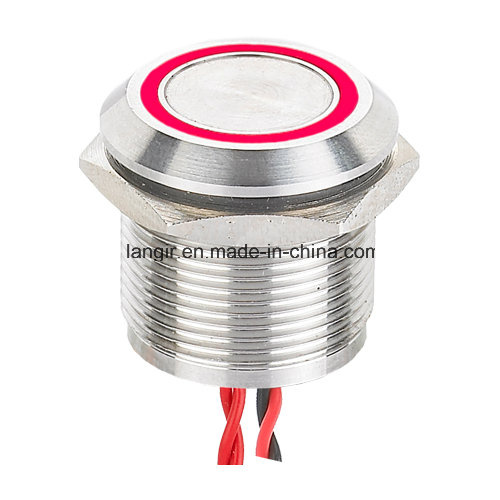

19mm Piezo Electric Switch for Electromagnetic Starter with Ce, RoHS

19mm Piezo Electric Switch for Electromagnetic Starter with Ce, RoHS
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: PZ19
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Aluminium 6061 T651/ Stainless Steel 316L
Functions: Momentary / Latching
Connection: Wires, Pins, Cables
Usage: Start Button

Product Description



Specification


Sizes... 12mm, 16mm, 19mm, 22mm, 25mm
Material... Stainless Steel, Aluminum

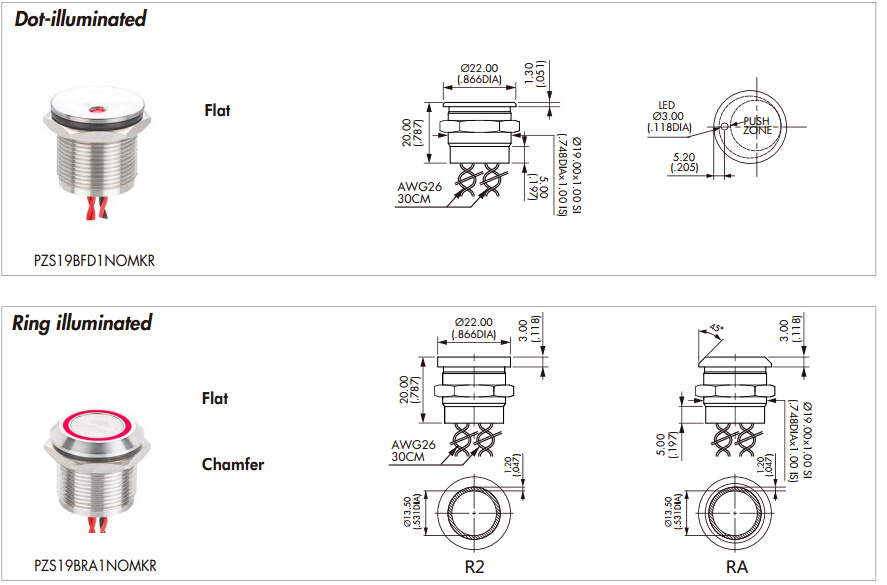

Non Illuminated or Illuminated
Led Colors... Red, Green, Blue, White, Orange, Yellow
Function... Momentary, Prolonged, Pulse
Rated Voltage... 0-24VAC/DC, Switch Current 1A
Waterproof protection IP68
Switching pulse time up to 300ms
Standard 20cm cable
Flat Head Type, Reccess


Electrical Data
FunctionsMomentary / Latching
Contact ArrangementSPST N.O. / N.C.
Pulse Duration125 - 300mS Momentary only
Prolongedup to 6 sec
Voltage1 - 24V AC/DC
Switching Current0.2A /1A
Rated Breaking Capacity1W
Operating Cycles>50,000,000
Switch Resistance OFF> 5 MΩ
Switch Resistance ON< 20 Ω
Capacity30pF
Contact ConfigurationFree polarity
Mechanical Data
MaterialAluminium 6061 T651/ Stainless Steel 316L
Actuating Force3 - 5N
ConnectionWires, Pins, Cables
Actuating Travel0.002mm
Shock ProtectionIK 06
Fastening Torque2.5Nm
Anodize ColorsGold / Red / Blue / Black / Green / Natural
Environmental Data
Operating Temperature-40°C to 75°C std.
IP ProtectionIP69K (front and back)
