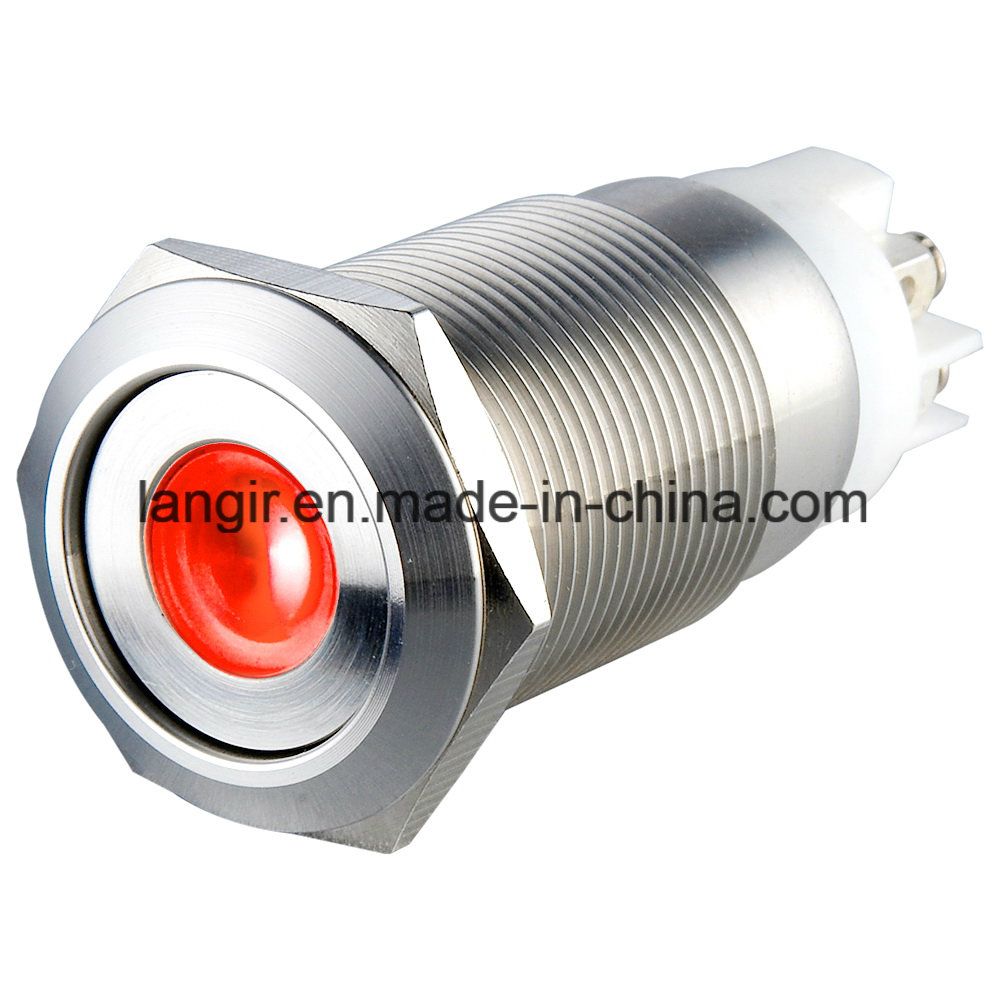

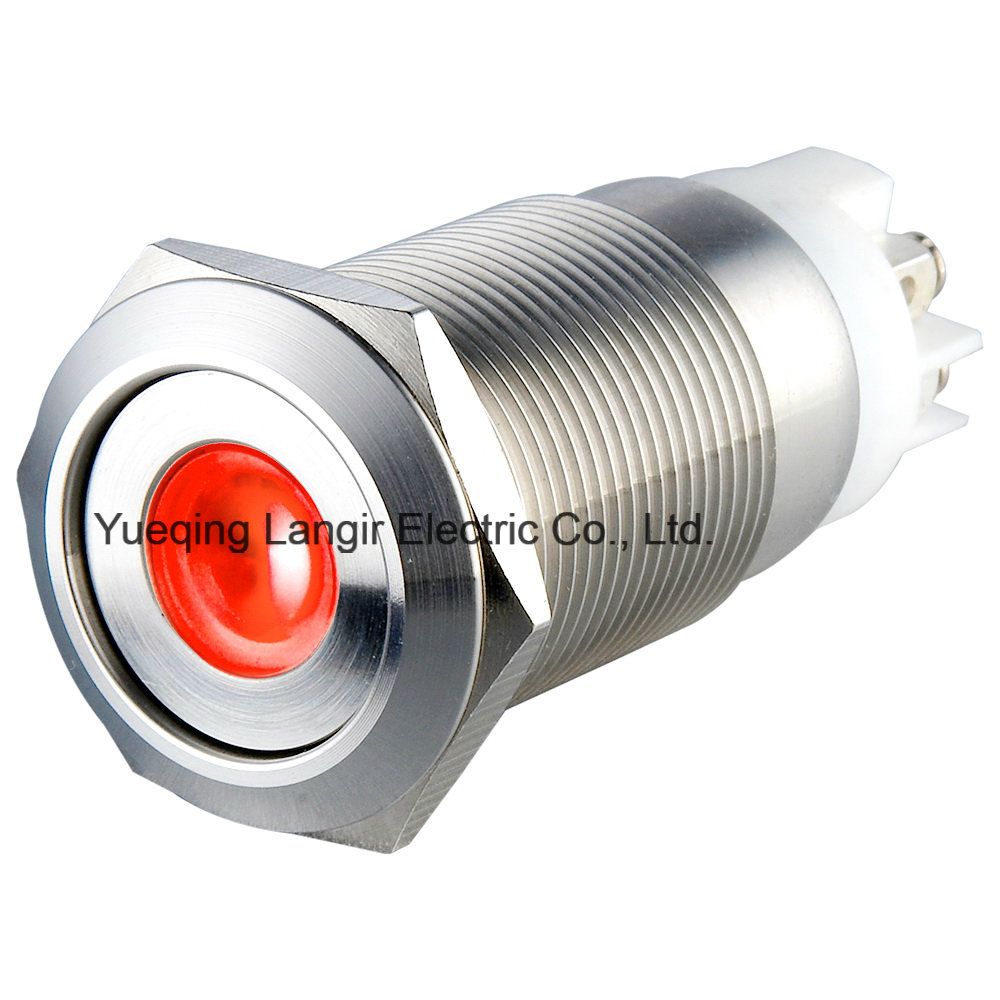

19mm Red DOT LED Latching Push Button Metal Car Switch

Name: 19mm Red DOT LED Latching Push Button Metal Car Switch
Brand: all-electronics-online.com
SKU: 798989905
Availability: InStock
Rating: 4.4 (134 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	L19M-F-N-Z1-S-D-R
Is Customized:	Yes
Material:	Stainless Steel
Function:	Momentary and Latching 1no1nc
LED Shape:	DOT and Ring Illumination
LED Color:	Red, Green, Blue, Yellow, Orange, White
LED Voltage:	6V/ 12V/ 24V/ 36V/ 110V/ 230V
Usage:	Reset Button
Certification:	RoHS

Product Description

Dot Illuminated Anti vandal pushbutton Switch L19 (19mm) made of Stainless steel
is_customized Yes
Material Stainless steel
Function Momentary/Latching 1NO1NC
LED shape Dot/Ring illumination
Waterproof Anti-Vandal IK09/ Sealed IP65
Momentary: Means that when you push Switch and then move your finger, the actuator will back to the original position;
Latching: Means that when you push Switch once it will change state and stay in this pushed-down position and will not come back
to oniginal position unless you push it again.

Type	L19-F	L19-F/R	L19-F/D
Illuminated Options	Non-Illrminated	Ring	Dot
Terminal	Screw Pin (2.8X0.5)
Max. Switch Rating	Ith: 5A Ui: 250VAC
Contact Resistance	≤50m
Insulation Resistance	≥1000m
Dielectric Strengh	2000VAC
Operation Temp	-20ºC ~+55ºC
Mechanical Life	1,000,000 Cycles
Electrical Life	50,000 Cycles
Contact Material	Silver Alloy
Torque	5~14Nm
Operation Pressure	approx. 5N
Protection	IP65 or IP67/ IK09
Material
Actuator	Stainless steel/ Anodized aluminum
Body	Stainless steel/ Anodized aluminum
Base	PBT
Voltage	6V/ 12V/ 24V/ 36V/ 110V/ 230V
Color	Red, Green, Blue, Yellow, Orange, White

Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
