19V 3.42A 65W AC/DC Adapter Charger Power for Asus R33030 N17908 V85 5.5*2.5mm

Name: 19V 3.42A 65W AC/DC Adapter Charger Power for Asus R33030 N17908 V85 5.5*2.5mm
Brand: all-electronics-online.com
SKU: 787861985
Availability: InStock
Rating: 4.4 (77 reviews)

Price:	US $ 4.44/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YASH307
Nominal Input Voltage:	AC 100V~240V
Output Voltage:	19V
Output Current:	3.42A
Output Power:	65W
DC Connector Size:	5.5*2.5mm
Line Regulation:	2%
Load Regulation:	5%
Certificates:	Ce, RoHS, Reach, FCC, ERP, CB, GS, TUV, UL, cUL, C
Over Load Protection:	Short Circuit Protection
High-Pot Test:	3kv
Usage:	Laptop
Output Type:	DC
Connection:	Desktop
Certification:	Ce FCC
Internal Structure:	PCB
Brand:	Yds

Product Description

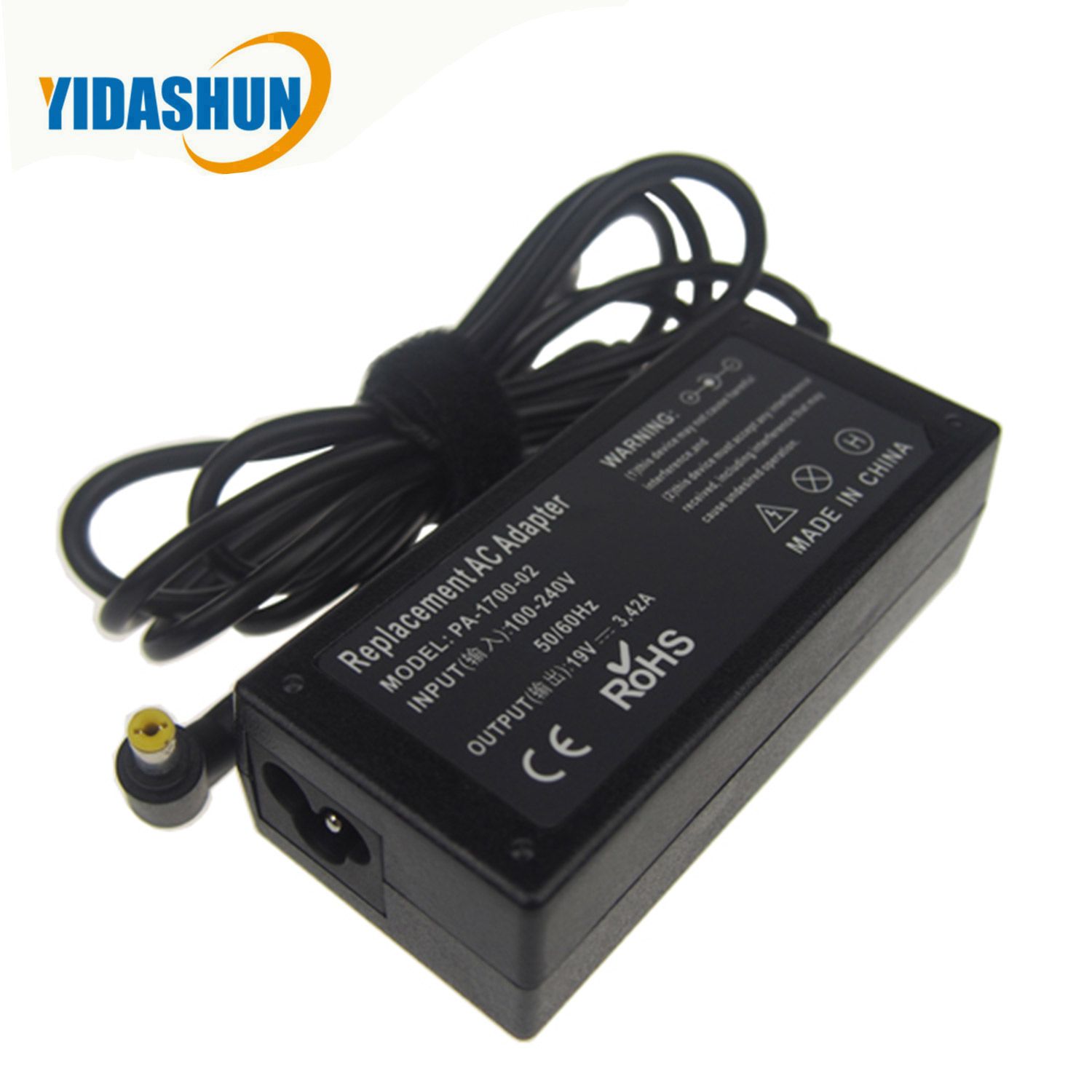

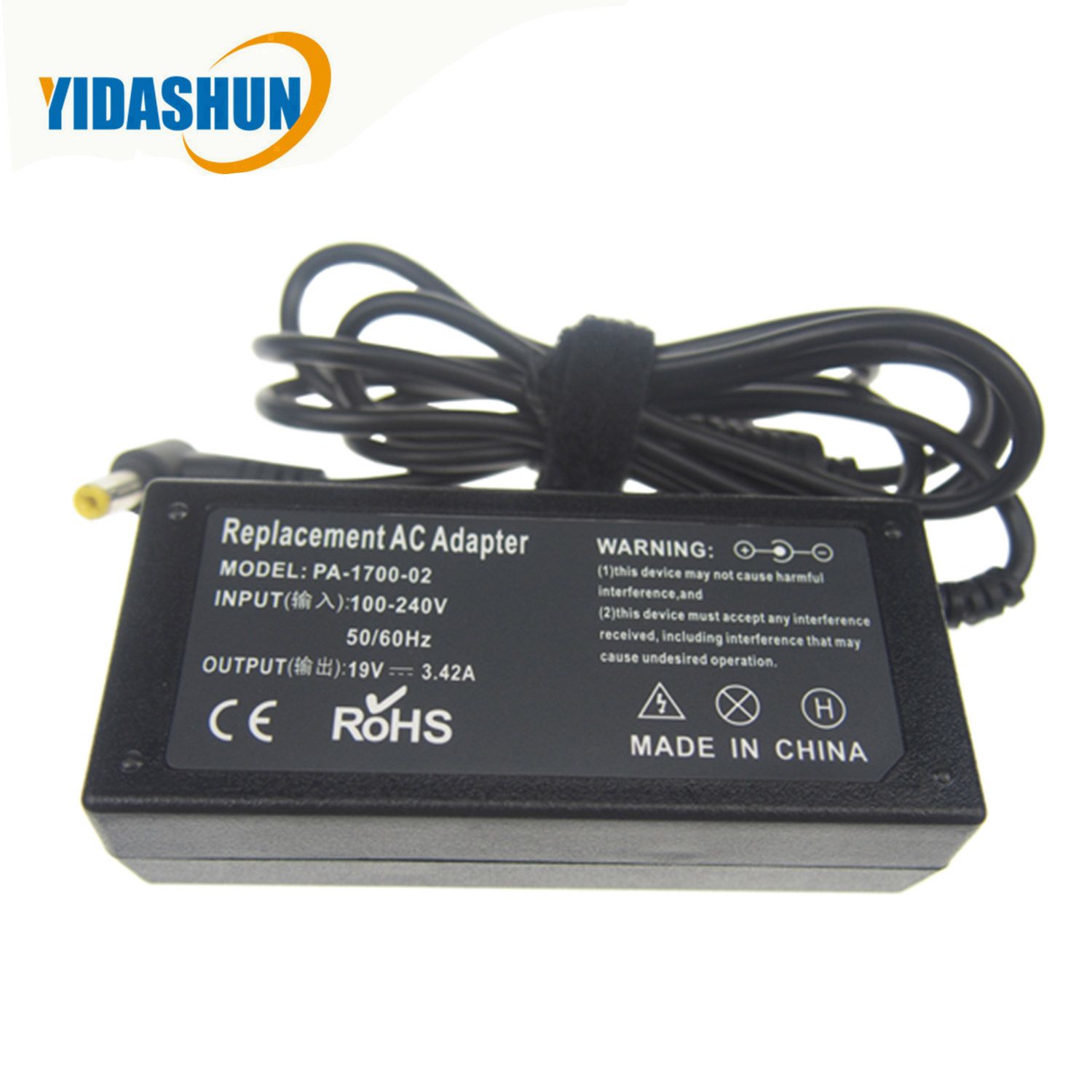

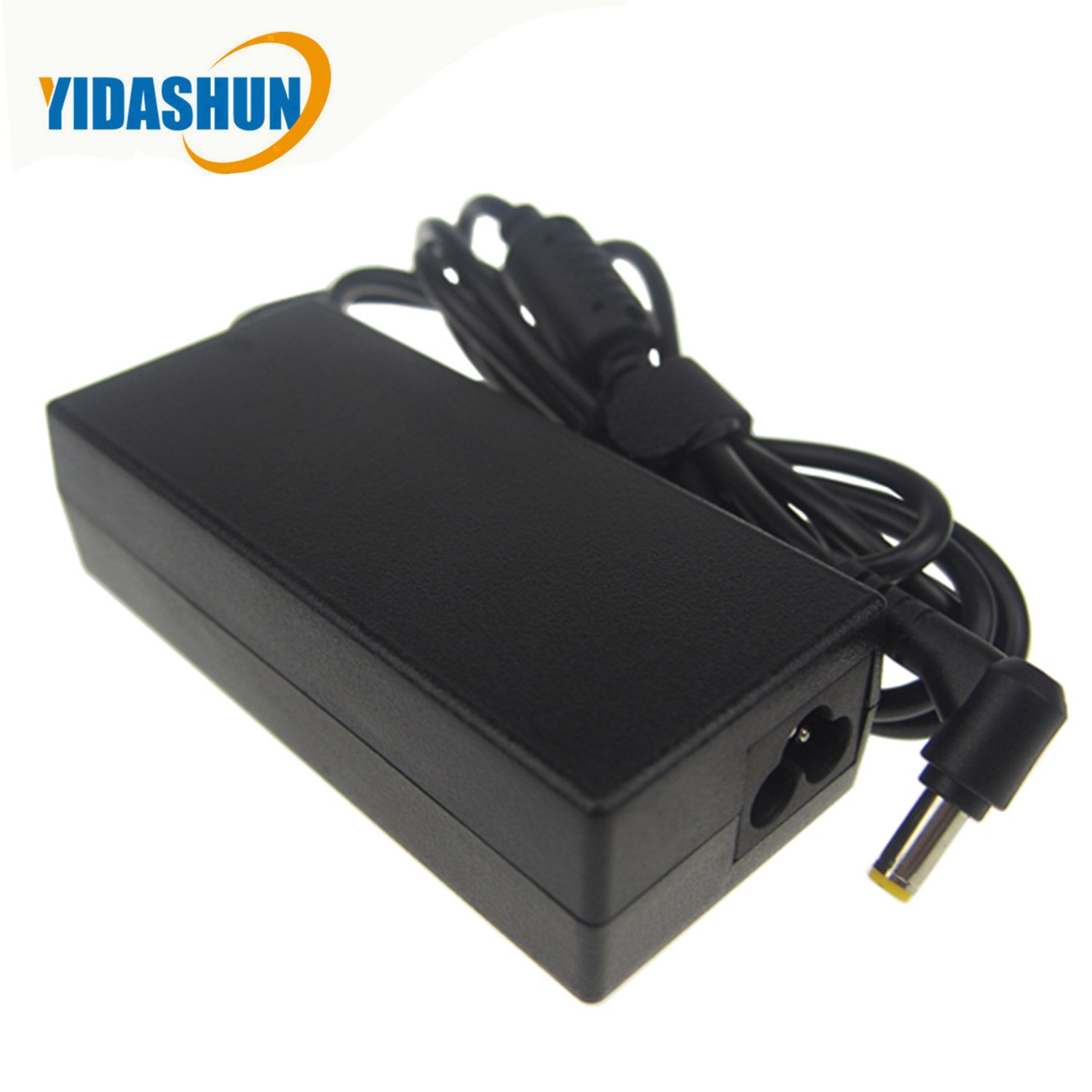

19V 3.42A 65W AC/DC Adapter charger power For ASUS R33030 N17908 V85 5.5*2.5MM

Feature

1.Brand new components
2. Housing is made by special fireproofing ABS+ PC plastic
3.Sufficient output power
4.Small output voltage ripple
5.High accuracy of output voltage
6.Smart device surge protection ,OVP ,OCP ,SCP
7.Strong built for heavy duty and long usage performance
8.Triple tests before packing ensure the reliable quality
9.More than 10 years experienced factory
10.100% full load burning test
11.Quality: High Efficiency. High Reliability. Low Ripple & Noise
12.Condition: 100% Brand New (2 Years Warranty)
13.Pass CE ,FCC ,ROHS, ERP Certificates.ISO9001:2000 International Quality Management Systems. Reliable quality, Defect rate can be controlled within 0.3%.
14.Production ability : More than 300,000 pcs batteries one month

Specification

Specifications
Model No.	YASH307
AC Input
Nominal Input Voltage	AC 100V~240V
Input Voltage Range	AC 95V~265V
Input Frequency	50/60Hz
DC Output
Output Voltage	19V
Output Current	3.42A
Output Power	65W
DC Connector Size	5.5*2.5 mm
Line Regulation	2%
Load Regulation	5%
Ripple Noise	180 Mvp-p
Efficiency	>85%
Output Cable Standard	0.5mm2 Pure Copper
Output Cable Length	1.5m normally or customized requirement
Environment
Operating Temperature	0°C ~40°C
Operating Humidity	5%~95%RH
Storage Temperature	-20°C ~85°C
Storage Humidity	5%~95%RH
Protection
Over Load Protection	Short Circuit Protection
Over Current Protection	Over Temperature Protection
Certificates
CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE
Dimensions
Adapter Size	12.54.83.0CM
Adapter Weight	254G
Inner Box Size	19134.7CM
Inner Box Weight	40G
PCS/CTN	50PCS
Outer Carton Size	48.53240CM
Outer Carton Weight	860G
GW/CTN	15560G
Package
Inner Box	Normally neutral brown box or customized requirement
Outer Carton	Normally neutral standard carton or customized requirement
Warranty
Guarantee	30 days
Warranty	2 years
Terms and Conditions
MOQ	100PCS for mixed order
Payment Terms	T/T, L/C, PayPal, western union
Delivery Time	3-5 days
Manufacturing Process
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping
Test Procedures
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

Why Buy 19V 3.42A 65W AC/DC Adapter charger power For ASUS R33030 N17908 V85 5.5*2.5MM here?

We are dedicated to offer you the highest quality products with reasonable prices. All of our products are directly produced from our own facotry of 10 years expierence. there are 300 workers and 10 automatic production lines in our factory. we have passed strict quality assurance procedures to achieve international standards . In addition, because of our sophisticated and vertically integrated supply chain system and streamlined order fulfillment system, we are able to offer high quality products with amazing low price and excellent customer service.

we do 100% 4 hours burn-in test for each adapter before package.

We can offer short lead time for you, we have large quantity PCB in stock for normal items and have stock for hot sale finished goods.
Package include:
1 x 19V 3.42A 65W AC/DC Adapter charger power For ASUS R33030 N17908 V85 5.5*2.5MM
1 x Wire Cord to Wall Outlet
NOTE:There are EU,UK,AU,US Power Cords in our factory.we will send it to you according to the outlet standard of your country.

Warranty:
30 Days Money Back Promised
60 Days Free Exchange With Paid Return Label
360 Days Anytime Worry-Free Warranty!
Bid With Confidence!!! Nobody Beats Our Customer Services!!!

Compatible with:

Compatible Part Number:
90-N6APW2000, 90-N6APW2004, SADP-65KB B, PA-1650-66
Compatible With Model:
Asus VivoBook S400CA-UH51T
Asus VivoBook S400CA-RH51T
Asus VivoBook S400CA-DB51T
Asus VivoBook S400CA-DH51T
Asus VivoBook S400CA-RSI5T18
Asus VivoBook S400CA-BSI3T12
Asus VivoBook S400CA-BSI5T14
Asus VivoBook S400CA-SI30305S
Asus VivoBook S400CA-LS31T
Asus VivoBook S400CA-RH51T-CB
Asus VivoBook S400CA-DH31T-CA
Asus VivoBook S400CA-DS51T-CA
Asus VivoBook S400CA-DB71T-CA
Asus VivoBook S400CA-CA021H
Asus VivoBook S400CA-CA002H
Asus VivoBook S400CA-CA003H
Asus VivoBook S400CA-CA004H
Asus VivoBook S400CA-CA006H
Asus VivoBook S400CA-CA008H
Asus VivoBook S400CA-CA010H
Asus VivoBook S400CA-CA022H
Asus VivoBook S400CA-CA038H
Asus VivoBook S400CA-CA039H
Asus VivoBook S400CA-CA040H
Asus VivoBook S400CA-CA041H
Asus VivoBook S400CA-CA071H
Asus VivoBook S400CA-CA086H
Asus VivoBook S400CA-CA089H
Asus VivoBook S400CA-CA093H
Asus VivoBook S400CA-CA120H
Asus VivoBook S400CA- CA135H
Asus VivoBook S400CA- CA148H

Asus A2 Series: A2000L, A2L
Asus A3 Series: A3000, A3000A, A3000Ac, A3000E, A3000H, A3000L, A3000N, A3A, A3Ac, A3E, A3FC, A3H, A3L, A3N, A3VC, A3VP
Asus A5 Series: A5E, A5EB, A5EC
Asus A6 Series: A6000, A6000N, A6000Ne, A6000Rp, A6000U, A6000Vc, A6F, A6JC, A6JM, A6KT, A6M, A6N, A6Ne, A6Rp, A6T, A6TC, A6U, A6Vc
Asus A8 Series: A8E, A8F, A8FM, A8H, A8He, A8Jr, A8M
Asus A9 Series: A9Rp
Asus B5 Series: B50A
Asus F2 Series: F2F, F2JE,
Asus F3 Series: F3F, F3H, F3Jm, F3Jv
Asus F5 Series: F5M, F5N, F5R, F5RL
Asus F6 Series: F6E
Asus F9 Series: F9E, F9F, F9J
Asus L2 Series: L2000E, L2E
Asus L3 Series: L3000C, L3000S, L3400, L3400C, L3800, L34, L34C, L3C, L3S
Asus L4 Series: L4000E, L4000R, L4500, L4500R, L4E, L4R
Asus M2 Series: M2000, M2000A, M2000E, M2000N, M2000Ne, M2A, M2C, M2E, M2N, M2Ne
Asus M24 Series: M24, M2400, M2400A, M2400E, M2400N, M2400NE, M24A, M24E, M24N
Asus M3 Series: M3, M3000, M3000N, M3NP, M3000NP, M3N
Asus M52 Series: M52A, M52Ae, M5200A, M5200Ae
Asus M6 Series: M6000, M6000BN, M6000BNe, M6000N, M6000Ne, M6000r, M6A, M6BN, M6BNe, M6N, M6Ne, M6R, M6V
Asus N1 Series: N10E, N10J, N10Jc
Asus R1 Series: R1E, R1F
Asus S1 Series: S1000N, S1300N, S1N, S13N
Asus S6 Series: S6F, S6Fm
Asus S9 Series: S96F, S96Fm VBI
Asus P Series: P50IJ, P50IJ-X1, P50IJ-X2
Asus U Series:
U1E, U1F, U2E, U50G, U5A, U50A, U5F, U50F, U6E, U8A, U80A, U81A, U8V, U80V, UL20, UL20A, UL20A-A1, UL30V, UL30Vt, UL30VT-A1, UL50, UL50A, UL50Ag, UL50Ag-A2, UL50Ag-A3B, UL50, UL50V, UL50Vt, UL50Vt-A1, UL50Vt,-X1, UL50, UL50Vs, UL50Vs-A1B, UL80, UK80V, UL80Vt, UL80Vt-A1, UL80A, UL80Ag, UL80Ag-A1, UL80Ag-A2B, UX50v
Asus V6 Series: V6, V6000, V6000J, V6000V, V6000Va, V6J, V6V, V6Va
Asus V68 Series: V68, V68V, V6800, V6800V
Asus W1 Series: W1, W1000, W1000N, W1Ga, W1Gc, W1N, W1Na
Asus W3 Series: W3A, W3N, W3Z, W3V
Asus W5 Series: W5000, W5000A, W5000Ae, W5000AF, W5000F, W5000Fe, W5000Fm, W5A, W5Ae, W5F, W5Fe, W5Fm
Asus W6 Series: W6A, W6F, W6FP
