1A Glass Passivated Bridge Rectifiers dB101 (S) -dB107 (S)

Name: 1A Glass Passivated Bridge Rectifiers dB101 (S) -dB107 (S)
Brand: all-electronics-online.com
SKU: 730726362
Availability: InStock
Rating: 4.9 (30 reviews)

Price:	US $ 0.001-0.035/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Db101 (S) -Db107 (S)
Manufacturing Technology:	Analog IC
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	DBS
Model:	dB101s dB104s dB107s
Brand:	Zg Brand

Product Description

Specifications

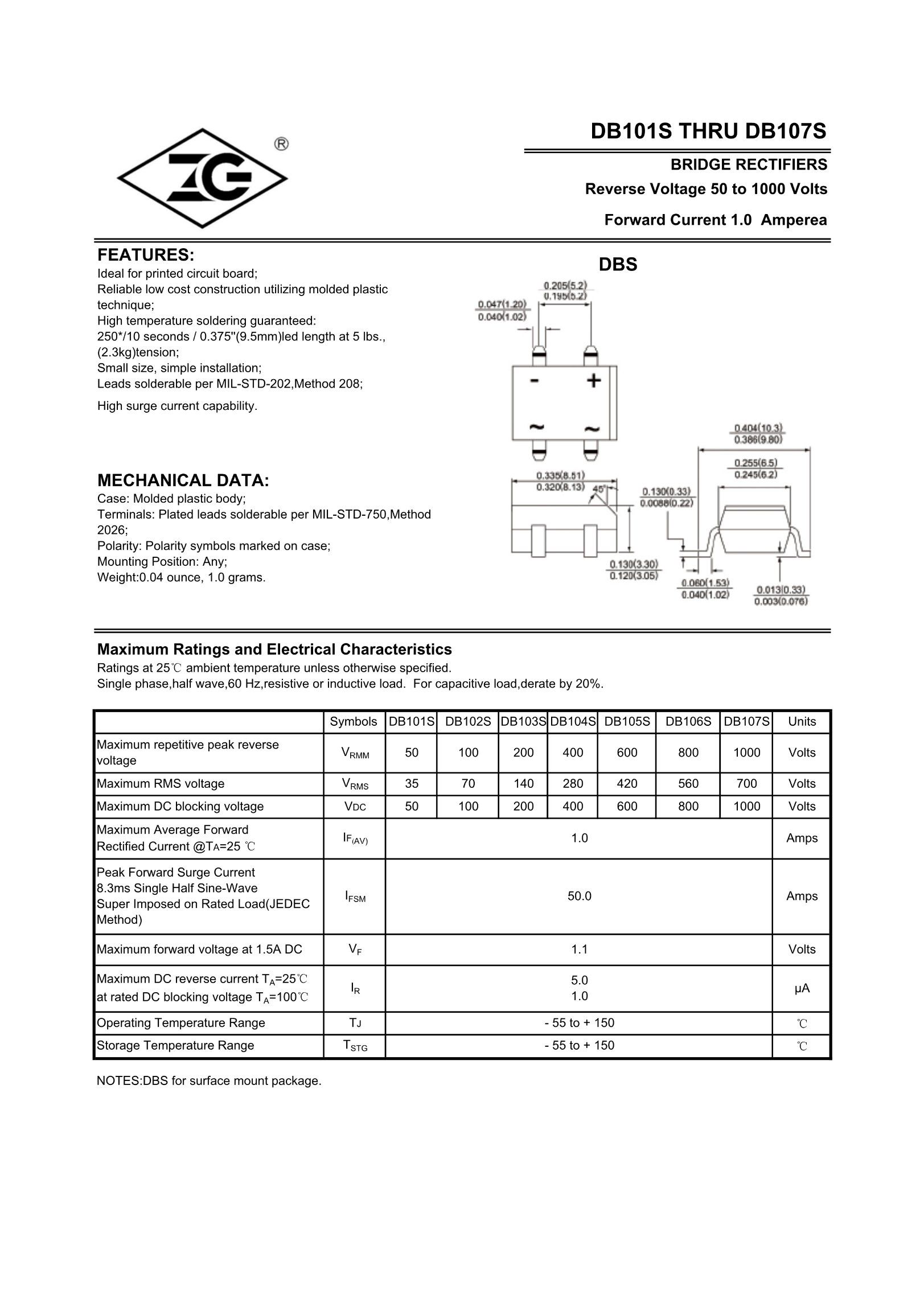

1A Glass Passivated Bridge Rectifiers DB101(S)-DB107(S)

Features:
1)We are professional diode manufacturer
2)High Quality,Competitive Price
3)Flexible business mode

Product Discription: 1A Glass Passivated Bridge Rectifiers DB101(S)-DB107(S)

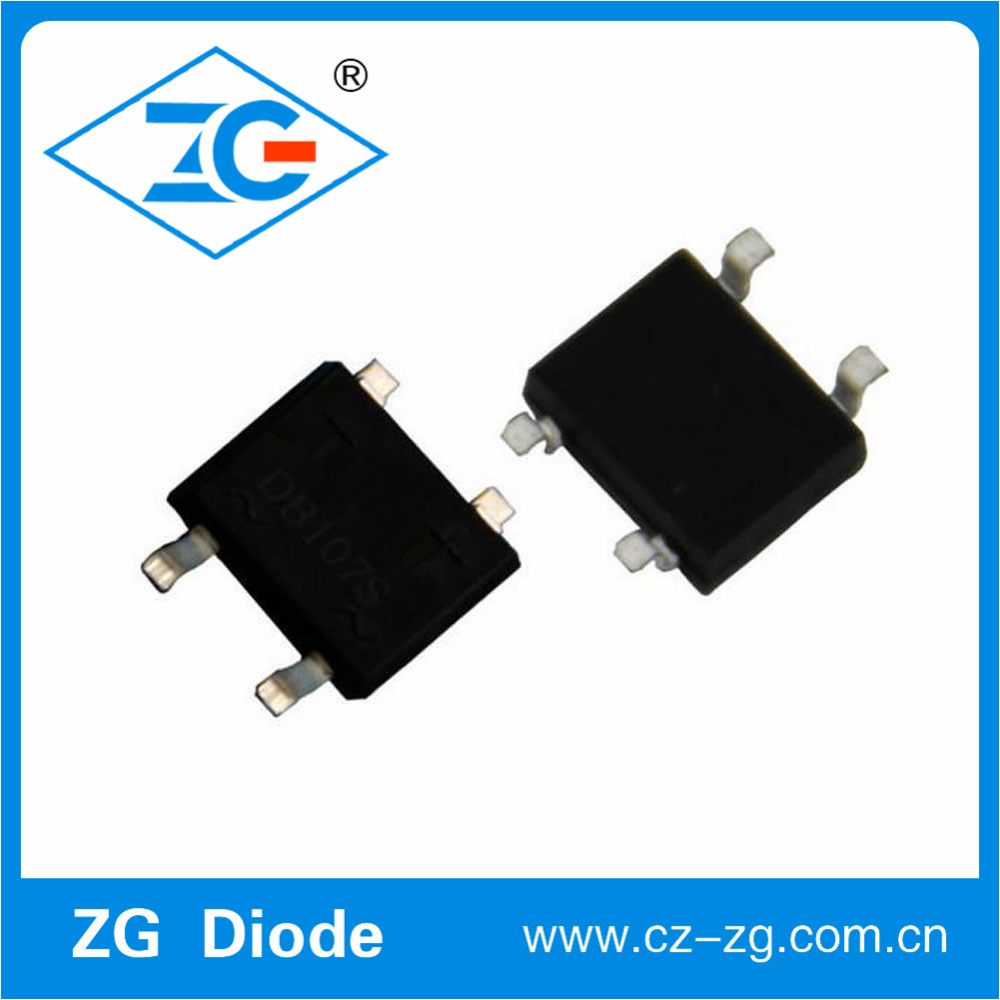

Product Name:1A Glass Passivated Bridge Rectifiers
Part Number: DB101S DB102S DB103S DB104S DB105S DB106S DB107s D101 DB102 DB103 DB104 DB105 DB106 DB107
1)I(AV):1.0A
2) VRRM (V): 50V-1000V
3)IFSM (A):50A
4) VF (V):1.1V
5)IR (μA)TA=25oC:10μA
6) Case Style:DB/DBS

Rectifier Diode:DB101S DB102S DB103S DB104S DB105S DB106S DB107s D101 DB102 DB103 DB104 DB105 DB106 DB107

Features:

Glass passivated junction
Ideal for printed circuit board
Reliable low cost construction utilizing molded
plastic technique
High temperature soldering guaranteed:
260 oC / 10 seconds / 0.375" ( 9.5mm )
lead length at 5 lbs., ( 2.3 kg ) tension
Small size, simple installation
Pure tin plated, Lead free. Leads solderable
per MIL-STD-202, Method 208
High surge current capability

More technical features kindly contact us

Established in 2000, Changzhou Zhongguang Electronic Co., Ltd(ZG), which locates in Changzhou city, Jiangsu province, a place concentrated with China's most vigorous manufacturers, our company has a wide variety of products with complete specifications, including diodes, bridge rectifiers and automotive rectifier diodes, transient voltage suppressors(TVS), general rectifier(STD), fast recovery diode(FR), high efficiency rectifiers(HER/UF), super fast recovery diodes(SF) and schottky diodes(SKY). The main package includes A-405, DO-41, DO-15, R-1, R-6, DO-201AD. TO-220AB. TO-220AC, SMA, SMB, SMC, MBS, MBM, DBS, dB, WOB, RS-2, GBJ2, KBPC1, KBP, KBL, GBJ4, KBU, GBJ6, GBU, KBPC6, KBPC8 etc.

And the company untroduced a full set of advanced equipment and scientific management system from abroad. The quality of our products enjoys a good reputation in domestic and foreign markets. The company could supply competitive price and fast delivery and good quality with prompet service.

Our products are widely used in the fields like home appliances, LED, energy saving lamp, smart electric meters, security and protection, extinguishing and protection and automotive electronics etc.

We also work with DHL, FedEx, TNT and etc. For large quantity, it's up to you to choose the freight for warder and if you need, we could assist you.
