1core/2cores Gjyxcv FTTH Outdoor Optical Fiber Cable

Name: 1core/2cores Gjyxcv FTTH Outdoor Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 727091452
Availability: InStock
Rating: 4.3 (149 reviews)

Price:	Negotiable/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJYXCV
Application:	High-Speed Railway
Type:	Single-mode Fiber
Connection Structure:	SC-SC
Certification:	Tlc
Brand:	Dumei

Product Description

1core/2cores Gjyxcv FTTH Outdoor Optical Fiber Cable

Cable Type:GJYXCV
optical fiber
Strength Member
Metal Supporting wire
Flame retardant sheath(PVC/LSZH)

Description
The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

Application:
End-customer network access(FTTH)
Suitable for Aerial and buildings laying method
Operating Temperature:-40ºC-+60ºC

Cable Characteristic:
Optical fiber: 1-2cores
Small diameter,light weight,high tensile strength.metal strength member
Groove design in appearance, easy to strip and splice,simplified installation and maintenance.
Excellent flexible structure and bending-resistant performance.
Flame retardant sheath(PVC/LSZH)

Product perameter

Model Number	GJYXCV,GJYXFCV
Type	Optical fiber
Number of Conductors	1--2
Certification	TLC, ISO
OEM	Welcome to OEM for FTTH Outdoor Cable
Item	FTTH Outdoor Cable
Jacket Material	PVC
Laying method	FTTH/FTTX/FTTA
Standards	YD/T 1258.2-2003,ICEA-596,GR-409,IEC794,OFNR & OFNP
Application	Outdoor wiring, building introduction
Operating Temperature	-40 to 60 degree

Technical parameters:

Items		unit	Details
Fiber counts		--	1-2
Optical fiber	Type	--	G.657a
Two parallel Steel wire strength member		--	FRP
PVC sheath		--	YES
Tension (Long/Short Term)		N	300/600
Crush (Long/Short Term)		N/100mm	1000/2200
Min. Bending radius		Dynamic	30times cable diameter
Min. Bending radius		Static	15times cable diameter
Temperature range		Operation	-40°C to 60°C
Application			Outdoor

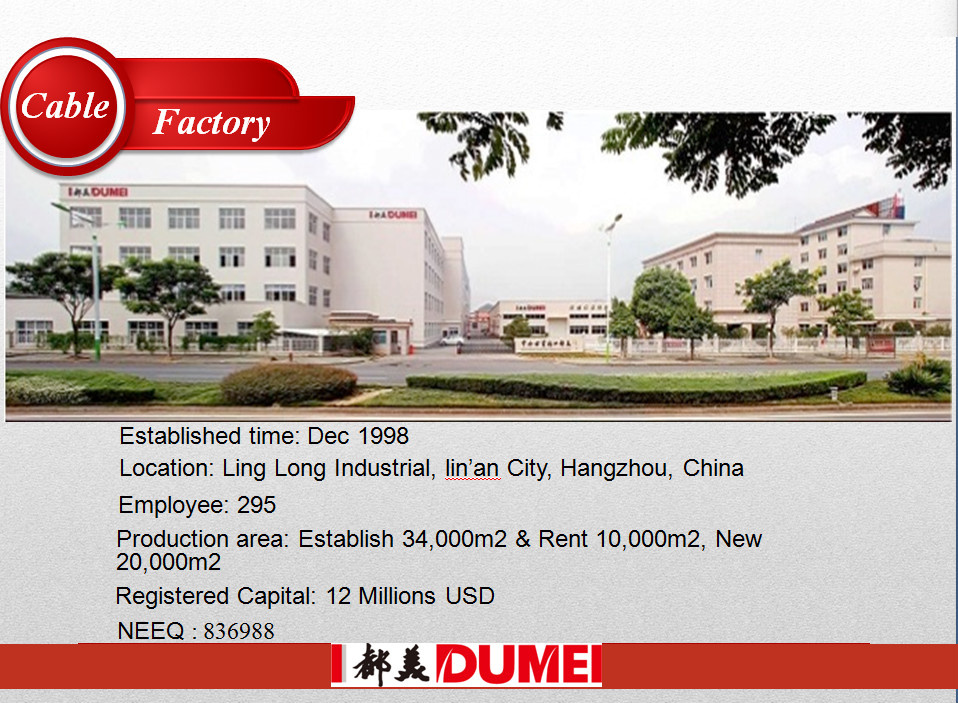

1, Cable Factory

2, Advanced Measurement Equipments

3, Certifications

4, Contacts

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect o UR service, we provide the products with good quality at the reasonable price.
