| Fiber Connector: |
LC/Upc |
| Connector Gender: |
Fixed Male to Female |
| Transfer Mode: |
Sm |
| Operating Wavelength(Nm): |
1260~1620(Sm) |
| Attenuation Accuracy: |
±0.5dB |
| Return Loss: |
≥55dB |
| Polarization Dependent Loss: |
≤0.2dB |
| Max Optical Input Power: |
200MW |
| Humidity: |
95%Rh |
| Operating Temp Range: |
-40~80°c |
| Transmission Medium: |
Single-Mode |
| Structure: |
LC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Brand: |
Takfly |
| Connector Type: |
LC-Upc |
Product Description

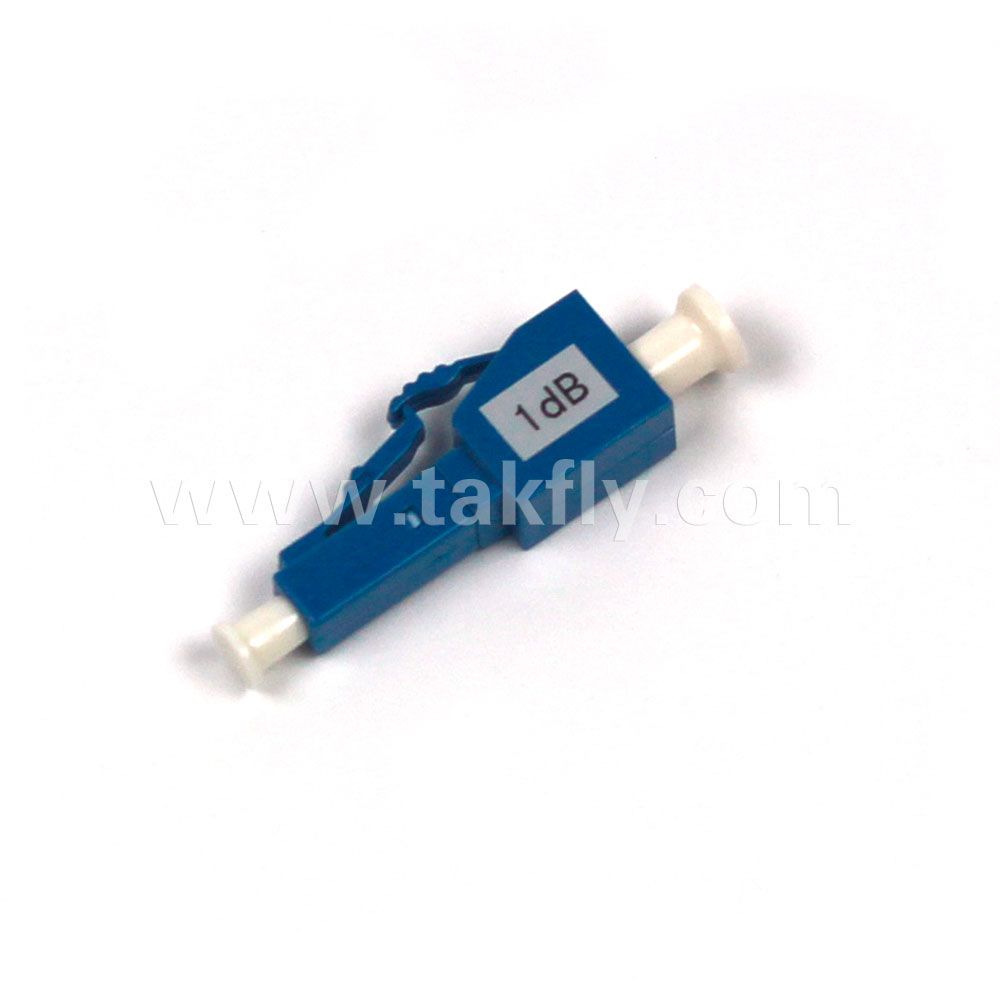

LC/UPC Singlemode Fixed Fiber Optic Attenuator, Male-Female, 1dB
Our single-mode fixed fiber optic attenuators offer low reflection, high mode stability and a variety of attenuation values.
As a optical passive devis, our attenuators mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired leve in the link without any changes on its original transmission wave.| Fiber Connector | LC/UPC | Connector Gender | Fixed Male to Female |
| Transfer Mode | Singlemode | Attenuation | 3dB |
| Operating Wavelength(nm) | 1260~1620(SM) | Attenuation Accuracy | ±0.5dB |
| Return Loss | ≥55dB | Polarization Dependent Loss | ≤0.2dB |
| Max Optical Input Power | 200mW | Humidity | 95%RH |
| Operating Temp Range | -40~80°C | Storage Temp Range | -40~85°C |
Highlights
- Precise attenuation values
- Low PDL & indertion loss
- Precisiona reflection polishing
Attenuator ApplicationGenerally, multimode systems do not need attenuators as multimode sources rarely have enough power output to saturate receivers. While Singlemode systems, especially short links, often have too much power and need attenuators. Ordinarily collocated with SM transceivers and cables to better stabilize link and realize steady & efficient transmission system.
