| Prod Model: |
ST Fiber Optic Adaptor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Business Type: |
Manufacturer |
| Products Name: |
Fiber Optic Adapter |
| Cores: |
Hybird Simplex, Duplex, Quad |
| Colour: |
Various |
| Insertion Loss: |
≤ 0.3dB |
| Exchangeability: |
<0.2dB |
| Operating Temperature: |
-40c ~ +85c |
| Material Shape: |
Square, Round |
| Allowed Tensile Strength: |
<100n |
| Core: |
Simplex, Duplex, Quard |
| Transmission Medium: |
Single-Mode |
| Structure: |
ST |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Light Source TYPE: |
Fiber Optic |
Product Description

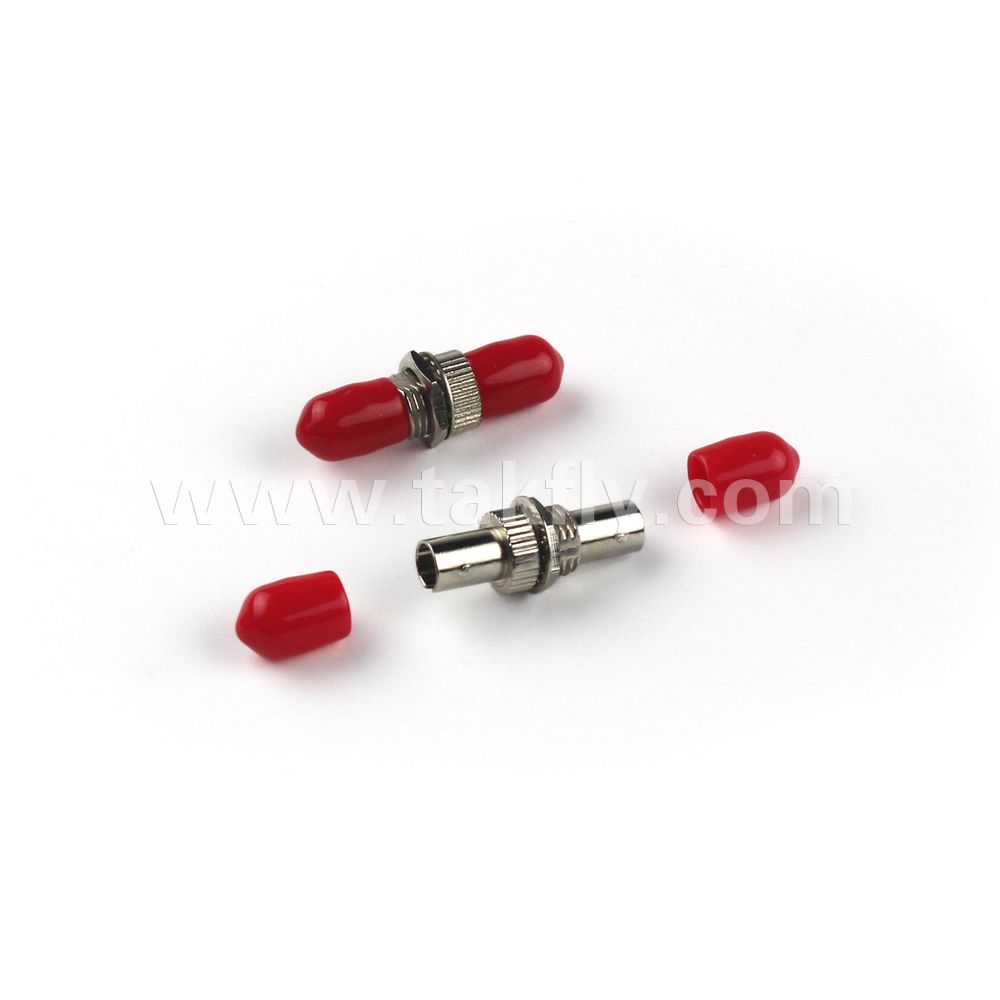

0.1dB Single Mode Simplex ST Fiber Optic Adapter
Fiber optic adapters is also called mating sleeves, which are used to connect optical connectors of same type, such as FC, SC and ST. Optical adapters are widely uses in light distribution frame(ODF), the optical fiber communications equipment, the measuring appliance and so on.
The optical adapter connects fiber transmission by its placket tube. We offer various shapes of high-performance adapters to ensure maximum connectivity between the fiber jumper. In order to fix a varity of board level, our company designed various sophisticated fixed flange.
Features
1. Single mode and Multimode
2. Zirconia sleeves or Phosphor bronze sleeves
3. NTT standard compatible
4. Available without flanges or with flange for duplex, saving panel spaceSC2 8Port high density for patch panel mount applications
5. Meet JIS5974 and bellcore GR-326 standard
6.Compliant with IEC874-14 & IEC874-19
7. All parts compliant with ROHS
Application
1. Telecommunication
2. CATV
3. LAN & WAN
4. Network
5. Broadband
6. FTTH
Order Information
1. Type: SC, LC, ST, FC, MU, E2000, Hybrid
2. Endface type: PC UPC APC.
3. Singlemode or Multimode.
4. Simplex, Dumplex or Quad.
Specifications
| Product | | ST Adapter |
| Mode | S.M(Zroz) | M.M(P.B) |
| Insertion Loss | ≤0.2dB | ≤0.3dB |
| Return Loss | ≥45dB | -- |
| Mating Durability(500 timer) | Additional Loss≤0.1dB,Return Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Return Loss Variability<5dB |
| Operating Temperature | -40ºC~+85ºC |
| Storage Temperature | -40ºC~+85ºC |
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Shipping
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
Contact
Mob:+86-13502850422
Have a nice shipping time!
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
