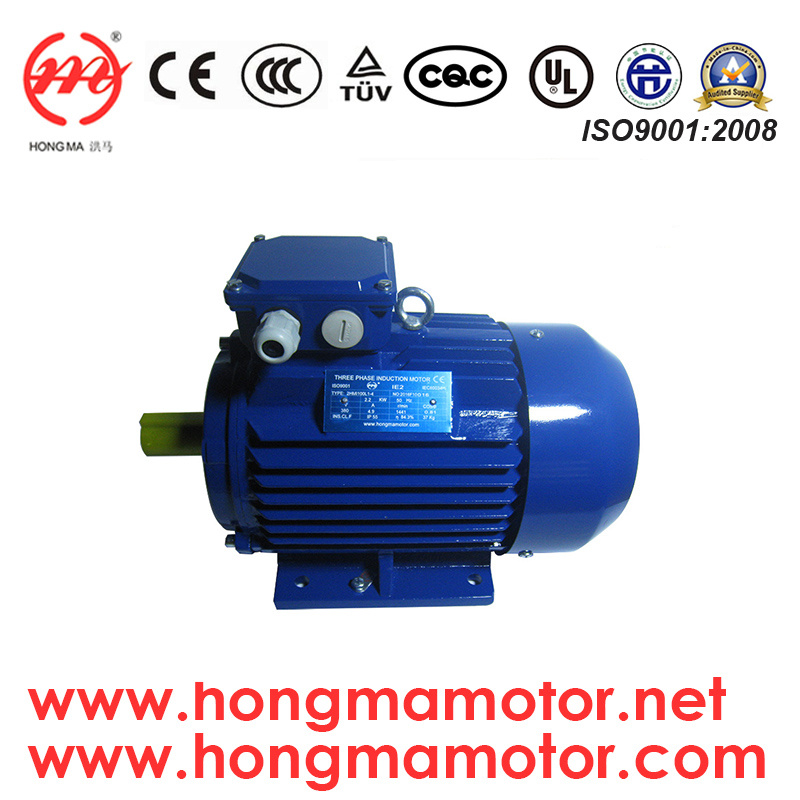

1HMI-Ie1 (EFF2) Series Cast Iron Housing Three Phase Electric Motor

Name: 1HMI-Ie1 (EFF2) Series Cast Iron Housing Three Phase Electric Motor
Brand: all-electronics-online.com
SKU: 779432205
Availability: InStock
Rating: 4.8 (87 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	1HMI H80-355
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Efficiency Class:	Ie1
Frame Size:	H80-355
Poles:	2,4,6,8 Poles
Rated Power:	0.09-315kw
Rated Voltage:	220/380V, 380/660V, 230/4
Frequency:	50Hz, 60Hz
Protection Class:	IP44, IP54, IP55, IP5
Insulation Class:	B, F, H
Mounting Type:	B3, B5, B35 Mult
Ambient Temperature:	-20~+40 °c
Application:	Power Tools
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	y-δ Starting
Species:	1hma-Ie1 Motor
Brand:	2,4,6,8

Product Description

1HMI-IE1 (EFF2) Series Cast Iron Housing Three Phase Asynchronous Motor

1HMI-IE1 (EFF2) Series Three Phase Asynchronous Motor is the basic series of general-purpose motor with low voltage upgraded of Y series motor. HMI-IE1 (EFF2) Series Motors with beautiful appearance and reliable operation meet to the needs of general-purpose at domestic and overseas within the range of frame size 71 to 355.
HMI-IE1(EFF2) Series Motors are designed of high efficiency, energy saving, high quality performance, small vibration, low noise, long life, high reliability, easy maintenance and large start torque, etc. The mounting dimension and power totally conform to IEC standard.

1HMI-IE1 (EFF2) Series Cast Iron Housing Motor Characteristics and advantages:
Efficiency Class:IE1
Frame Size: H71-355
Poles: 2, 4, 6, 8, 10poles
Rated Power: 0.09-315KW
Rated Voltage: 220/380V, 380/660V, 230/400V, 400V/690V
Frequency: 50HZ, 60HZ
Protection Class: IP44, IP54, IP55, IP56
Insulation Class: B, F, H
Mounting Type:B3, B5, B35multi and pad mounting
Ambient Temperature: -20~+40 °C
Altitude: ≤1000M

Model	TYPE	Output_kW	η(%)	Cosφ	r/min	Current_380V	Current_400V	Current_415V	Ts/Tn	Tax/Tn	Is/In
1HMI	71M1-2	0.37	70	0.81	2756	1.0	0.9	0.9	2.2	2.2	6.1
1HMI	71M2-2	0.55	72	0.82	2792	1.4	1.3	1.3	2.2	2.2	6.1
1HMI	80M1-2	0.75	72.1	0.83	2830	1.9	1.8	1.7	2.2	2.3	6.1
1HMI	80M2-2	1.1	75	0.84	2830	2.7	2.5	2.4	2.2	2.3	7
1HMI	90S-2	1.5	77.2	0.84	2840	3.5	3.3	3.2	2.2	2.3	7
1HMI	90L-2	2.2	79.7	0.85	2840	4.9	4.7	4.5	2.2	2.3	7
1HMI	100L-2	3	81.5	0.87	2860	6.4	6.1	5.9	2.2	2.3	7.5
1HMI	112M-2	4	83.1	0.88	2880	8.3	7.9	7.6	2.2	2.3	7.5
1HMI	132S1-2	5.5	84.7	0.88	2900	11.2	10.7	10.3	2.2	2.3	7.5
1HMI	132S2-2	7.5	86	0.88	2900	15.1	14.3	13.8	2.2	2.3	7.5
1HMI	160M1-2	11	87.6	0.89	2930	21.4	20.4	19.6	2.2	2.3	7.5
1HMI	160M2-2	15	88.7	0.89	2930	28.9	27.4	26.4	2.2	2.3	7.5
1HMI	160L-2	18.5	89.3	0.90	2930	35.0	33.2	32.0	2.2	2.3	7.5
1HMI	180M-2	22	89.9	0.90	2940	41.3	39.2	37.8	2	2.3	7.5
1HMI	200L1-2	30	90.7	0.90	2950	55.8	53.0	51.1	2	2.3	7.5
1HMI	200L2-2	37	91.2	0.90	2950	68.5	65.1	62.7	2	2.3	7.5
1HMI	225M-2	45	91.7	0.90	2970	82.8	78.7	75.9	2	2.3	7.5
1HMI	250M-2	55	92.1	0.90	2970	100.8	95.8	92.3	2	2.3	7.5
1HMI	280S-2	75	92.7	0.90	2970	136.6	129.8	125.1	2	2.3	7.5
1HMI	280M-2	90	93	0.91	2970	161.6	153.5	148.0	2	2.3	7.5
1HMI	315S-2	110	93.3	0.91	2980	196.9	187.0	180.2	1.8	2.2	7.1
1HMI	315M-2	132	93.5	0.91	2980	235.7	223.9	215.8	1.8	2.2	7.1
1HMI	315L1-2	160	93.8	0.92	2980	281.7	267.6	257.9	1.8	2.2	7.1
1HMI	315L2-2	200	94	0.92	2980	351.4	333.8	321.7	1.8	2.2	7.1
1HMI	355M-2	250	94.0	0.92	2980	439.2	417.3	402.2	1.6	2.2	7.1
1HMI	355L-2	315	94.0	0.92	2980	553.4	525.8	506.8	1.6	2.2	7.1
1HMI	71M1-4	0.25	65.0	0.74	1347	0.8	0.8	0.7	2.1	2.2	5.2
1HMI	71M2-4	0.37	67.0	0.75	1340	1.1	1.1	1.0	2.1	2.2	5.2
1HMI	80M1-4	0.55	71.0	0.75	1390	1.6	1.5	1.4	2.4	2.3	5.2
1HMI	80M2-4	0.75	72.1	0.76	1390	2.1	2.0	1.9	2.3	2.3	6
1HMI	90S-4	1.1	75	0.77	1390	2.9	2.7	2.6	2.3	2.3	6
1HMI	90L-4	1.5	77.2	0.79	1390	3.7	3.6	3.4	2.3	2.3	6
1HMI	100L1-4	2.2	79.7	0.81	1410	5.2	4.9	4.7	2.3	2.3	7
1HMI	100L2-4	3	81.5	0.82	1410	6.8	6.5	6.2	2.3	2.3	7
1HMI	112M-4	4	83.1	0.82	1435	8.9	8.5	8.2	2.3	2.3	7
1HMI	132S-4	5.5	84.7	0.83	1440	11.9	11.3	10.9	2.3	2.3	7
1HMI	132M-4	7.5	86	0.84	1440	15.8	15.0	14.4	2.3	2.3	7
1HMI	160M-4	11	87.6	0.84	1460	22.7	21.6	20.8	2.2	2.3	7
1HMI	160L-4	15	88.7	0.85	1460	30.2	28.7	27.7	2.2	2.3	7.5
1HMI	180M-4	18.5	89.3	0.86	1470	36.6	34.8	33.5	2.2	2.3	7.5
1HMI	180L-4	22	89.9	0.86	1470	43.2	41.1	39.6	2.2	2.3	7.5
1HMI	200L-4	30	90.7	0.86	1470	58.4	55.5	53.5	2.2	2.3	7.2
1HMI	225S-4	37	91.2	0.87	1480	70.9	67.3	64.9	2.2	2.3	7.2
1HMI	225M-4	45	91.7	0.87	1480	85.7	81.4	78.5	2.2	2.3	7.2
1HMI	250M-4	55	92.1	0.87	1480	104.3	99.1	95.5	2.2	2.3	7.2
1HMI	280S-4	75	92.7	0.87	1480	141.3	134.2	129.4	2.2	2.3	7.2
1HMI	280M-4	90	93	0.87	1480	169.0	160.6	154.8	2.2	2.3	7.2
1HMI	315S-4	110	93.3	0.88	1490	203.6	193.4	186.4	2.1	2.2	6.9
1HMI	315M-4	132	93.5	0.88	1490	243.8	231.6	223.2	2.1	2.2	6.9
1HMI	315L1-4	160	93.8	0.89	1490	291.2	276.6	266.6	2.1	2.2	6.9
1HMI	315L2-4	200	94	0.89	1490	363.2	345.1	332.6	2.1	2.2	6.9
1HMI	355M-4	250	94.0	0.90	1490	449.0	426.5	411.1	2.1	2.2	6.9
1HMI	355L-4	315	94.0	0.90	1490	565.7	537.4	518.0	2.1	2.2	6.9
1HMI	71M1-6	0.18	56.0	0.66	865	0.7	0.7	0.7	1.9	2	4
1HMI	71M2-6	0.25	59.0	0.68	863	0.9	0.9	0.9	1.9	2	4
1HMI	80M1-6	0.37	62.0	0.70	890	1.3	1.2	1.2	1.9	2	4.7
1HMI	80M2-6	0.55	65.0	0.72	890	1.8	1.7	1.6	1.9	2	4.7
1HMI	90S-6	0.75	70	0.72	910	2.3	2.1	2.1	2	2.1	5.5
1HMI	90L-6	1.1	72.9	0.73	910	3.1	3.0	2.9	2	2.1	5.5
1HMI	100L-6	1.5	75.2	0.75	920	4.0	3.8	3.7	2	2.1	5.5
1HMI	112M-6	2.2	77.7	0.76	935	5.7	5.4	5.2	2	2.1	6.5
1HMI	132S-6	3	79.7	0.76	960	7.5	7.1	6.9	2.1	2.1	6.5
1HMI	132M1-6	4	81.4	0.76	960	9.8	9.3	9.0	2.1	2.1	6.5
1HMI	132M2-6	5.5	83.1	0.77	960	13.1	12.4	12.0	2.1	2.1	6.5
1HMI	160M-6	7.5	84.7	0.77	970	17.5	16.6	16.0	2	2.1	6.5
1HMI	160L-6	11	86.4	0.78	970	24.8	23.6	22.7	2	2.1	6.5
1HMI	180L-6	15	88.7	0.81	970	31.7	30.1	29.0	2	2.1	7
1HMI	200L1-6	18.5	88.6	0.81	970	39.2	37.2	35.9	2.1	2.1	7
1HMI	200L2-6	22	89.2	0.83	970	45.1	42.9	41.3	2.1	2.1	7
1HMI	225M-6	30	90.2	0.84	980	60.2	57.2	55.1	2	2.1	7
1HMI	250M-6	37	90.8	0.86	980	72.0	68.4	65.9	2.1	2.1	7
1HMI	280S-6	45	91.4	0.86	980	87.0	82.6	79.6	2.1	2	7
1HMI	280M-6	55	91.9	0.86	980	105.7	100.4	96.8	2.1	2	7
1HMI	315S-6	75	92.6	0.86	990	143.1	135.9	131.0	2	2	7
1HMI	315M-6	90	92.9	0.86	990	171.2	162.6	156.7	2	2	7
1HMI	315L1-6	110	93.3	0.86	990	208.3	197.9	190.7	2	2	6.7
1HMI	315L2-6	132	93.5	0.87	990	246.6	234.2	225.8	2	2	6.7
1HMI	355M1-6	160	93.8	0.88	990	294.5	279.8	269.7	1.9	2	6.7
1HMI	355M3-6	200	94	0.88	990	367.4	349.0	336.4	1.9	2	6.7
1HMI	355L2-6	250	94.0	0.88	990	459.2	436.2	420.5	1.9	2	6.7
1HMI	80M1-8	0.18	51.0	0.61	630	0.9	0.8	0.8	1.8	1.9	3.3
1HMI	80M2-8	0.25	54.0	0.61	640	1.2	1.1	1.1	1.8	1.9	3.3
1HMI	90S-8	0.37	62.0	0.61	660	1.5	1.4	1.4	1.8	1.9	4
1HMI	90L-8	0.55	63.0	0.61	660	2.2	2.1	2.0	1.8	2	4
1HMI	100L1-8	0.75	71.0	0.67	690	2.4	2.3	2.2	1.8	2	4
1HMI	100L2-8	1.1	73.0	0.69	690	3.3	3.2	3.0	1.8	2	5
1HMI	112M-8	1.5	75.0	0.69	680	4.4	4.2	4.0	1.8	2	5
1HMI	132S-8	2.2	78.0	0.71	710	6.0	5.7	5.5	1.8	2	6
1HMI	132M-8	3	79.0	0.73	710	7.9	7.5	7.2	1.8	2	6
1HMI	160M1-8	4	81.0	0.73	720	10.3	9.8	9.4	1.9	2	6
1HMI	160M2-8	5.5	83.0	0.74	720	13.6	12.9	12.5	2	2	6
1HMI	160L-8	7.5	85.5	0.75	720	17.8	16.9	16.3	2	2	6
1HMI	180L-8	11	87.5	0.76	730	25.1	23.9	23.0	2	2	6.6
1HMI	200L-8	15	88.0	0.76	730	34.1	32.4	31.2	2	2	6.6
1HMI	225S-8	18.5	90.0	0.76	730	41.1	39.0	37.6	1.9	2	6.6
1HMI	225M-8	22	90.5	0.78	740	47.4	45.0	43.4	1.9	2	6.6
1HMI	250M-8	30	91.0	0.79	740	63.4	60.2	58.1	1.9	2	6.6
1HMI	280S-8	37	91.5	0.79	740	77.8	73.9	71.2	1.9	2	6.6
1HMI	280M-8	45	92.0	0.79	740	94.1	89.4	86.1	1.9	2	6.6
1HMI	315S-8	55	92.8	0.81	740	111.2	105.6	101.8	1.8	2	6.6
1HMI	315M-8	75	93.0	0.81	740	151.3	143.7	138.5	1.8	2	6.6
1HMI	315L1-8	90	93.8	0.82	740	177.8	168.9	162.8	1.8	2	6.6
1HMI	315L2-8	110	94.0	0.82	740	216.8	206.0	198.5	1.8	2	6.4
1HMI	355M1-8	132	93.7	0.82	740	261.0	248.0	239.0	1.8	2	6.4
1HMI	355M2-8	160	94.2	0.82	740	314.7	299.0	288.2	1.8	2	6.4
1HMI	355L-8	200	94.5	0.83	740	387.4	368.1	354.8	1.8	2	6.4
1HMI	315S-10	45	91.5	0.75	590	99.6	94.7	91.2	1.5	2	6.2
1HMI	315M-10	55	92.0	0.75	590	121.1	115.1	110.9	1.5	2	6.2
1HMI	315L1-10	75	92.5	0.76	590	162.1	154.0	148.4	1.5	2	6.2
1HMI	315L2-10	90	93.0	0.77	590	191.0	181.4	174.9	1.5	2	6.2
1HMI	355M1-10	110	93.2	0.78	590	229.9	218.4	210.5	1.3	2	6
1HMI	355M2-10	132	93.5	0.78	590	275.0	261.3	251.8	1.3	2	6
1HMI	355L-10	160	93.5	0.78	590	333.3	316.7	305.2	1.3	2	6

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
