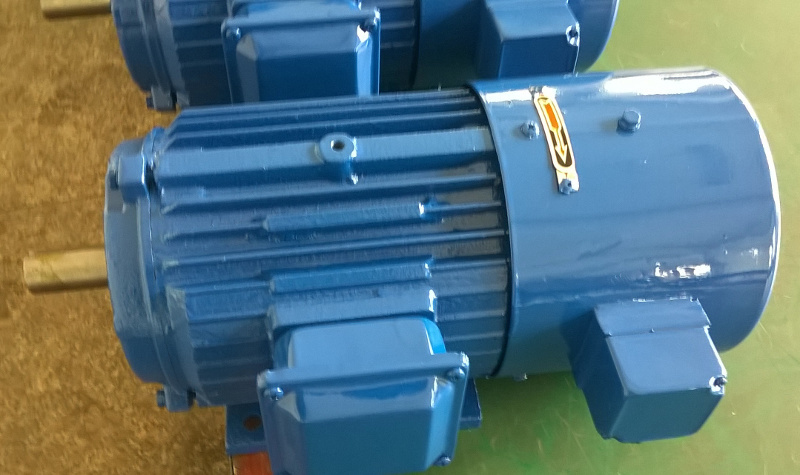

1HP-270HP Tefc IP54 Adjust Speed Inverter Duty Motor

Name: 1HP-270HP Tefc IP54 Adjust Speed Inverter Duty Motor
Brand: all-electronics-online.com
SKU: 722236885
Availability: InStock
Rating: 4.5 (32 reviews)

Price:	US $ 80-95/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YVF2 series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	Special Voltages Available
Application:	Power Tools
Operating Speed:	Adjust Speed
Number Of Stator:	Three-Phase
Species:	YVP Series Frequency Control
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Variable Frequency Starting
Brand:	Yinda Folk

Product Description

Yvf2 Adjust Speed Inverter Motor
(Electric Motor, Ac Motor, Induction Motor,Asynchronous Motor)

Voltage; 380 or 220V
Frequency; 50 or 60HZ
Duty: S1
Insulation Grade F
Connection; ≤ 3KW Y; >3KW (220v )

Standard features:
Cast Iron Frame: 80-315
Mounting type: B3
Power: 0.75kw(1HP)-200kw(270HP)
Squirrel cage rotor/Aluminium die cast
Continous duty: S1
Protection grade: IP54
Voltage: 380V

Optical features:
Mounting type: B5/B35/B14
Special voltages
Protection grade: IP55

Technical data

Frame Size	kW	A	N·m	Constant Torque Frequency Range Hz	Constant Output Frequency Range Hz
YVF2-80M1-4	0.55	1.6	3.5	5-50	50-100
YVF2-80M2-4	0.75	2	4.7	5-50	50-100
YVF2-90S-4	1.1	2.9	7	5-50	50-100
YVF2-90L-4	1.5	3.7	9.5	5-50	50-100
YVF2-100L1-4	2.2	5.2	14	5-50	50-100
YVF2-100L2-4	3	6.8	19	5-50	50-100
YVF2-112M-4	4	8.8	25.4	5-50	50-100
YVF2-132S-4	5.5	11.8	35	5-50	50-100
YVF2-132M-4	7.5	15.6	47.7	5-50	50-100
YVF2-160M-4	11	22.3	70	5-50	50-100
YVF2-160L-4	15	30.1	95.5	5-50	50-100
YVF2-180M-4	18.5	36.1	117.1	5-50	50-100
YVF2-180L-4	22	42.7	140.9	5-50	50-100
YVF2-200L-4	30	57.6	190.9	5-50	50-100
YVF2-225S-4	37	69.9	235.5	5-50	50-100
YVF2-225M-4	45	84.7	286.4	5-50	50-100
YVF2-250M-4	55	103	350.1	3-50	50-100
YVF2-280S-4	75	140	177.7	3-50	50-100
YVF2-280M-4	90	167	572.9	3-50	50-100
YVF2-315S-4	110	201	700.2	3-50	50-100
YVF2-315M-4	132	240	840.3	3-50	50-100
YVF2-315L1-4	160	288	1018.5	3-50	50-100
YVF2-315L2-4	200	359	1273.2	3-50	50-100

Dimension Drawing:

								Mounting Dimensions								Overall Dimensions
	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	AD	HD	L
80M	125	100	50	19	40	6	15.5	80	10	165	130	200	4-φ12	3.5	165	175	145	220	370
90S	140	100	56	24	50	8	20	90	10	165	130	200	4-φ12	3.5	180	195	155	250	380
90L	140	125	56	24	50	8	20	90	10	165	130	200	4-φ12	3.5	180	195	155	250	410
100lL	160	140	63	28	60	8	24	100	12	215	180	250	4-φ15	4	205	215	180	270	465
112M	190	140	70	28	60	8	24	112	12	215	180	250	4-φ15	4	230	240	190	300	480
132S	216	140	89	38	80	10	33	132	12	265	230	300	4-φ15	4	270	275	210	345	530
132M	216	178	89	38	80	10	33	132	12	265	230	300	4-φ15	4	270	275	210	345	570
160M	254	210	108	42	110	12	37	160	15	300	250	350	4-φ19	5	320	330	255	420	660
160L	254	254	108	42	110	12	37	160	15	300	250	350	4-φ19	5	320	330	255	420	715
180M	279	241	121	48	110	14	42.5	180	15	300	250	350	4-φ19	5	355	380	280	455	775
180L	279	279	121	48	110	14	42.5	180	15	300	250	350	4-φ19	5	355	380	280	455	815
200L	318	305	133	55	110	16	49	200	19	350	300	400	4-φ19	5	395	420	305	505	850
225S	356	286	149	60	140	18	53	225	19	400	350	450	8-φ19	5	435	470	335	560	885
225M	356	311	149	60	140	18	53	225	19	400	350	450	8-φ19	5	435	470	335	560	915
250M	406	349	168	65	140	18	58	250	24	500	450	550	8-φ19	5	490	510	370	615	980
280S	457	368	190	75	140	20	67.5	280	24	500	450	550	8-φ19	5	550	580	410	680	1085
280M	457	419	190	75	140	20	67.5	280	24	500	450	550	8-φ19	5	550	580	410	680	1135
315S	508	406	216	80	170	22	71	315	28	600	550	660	8-φ24	6	635	645	530	845	1285
315M	508	457	216	80	170	22	71	315	28	600	550	660	8-φ24	6	635	645	530	845	1395
315L	508	508	216	80	170	22	71	315	28	600	550	660	8-φ24	6	635	645	530	845	1395

Photos:

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
