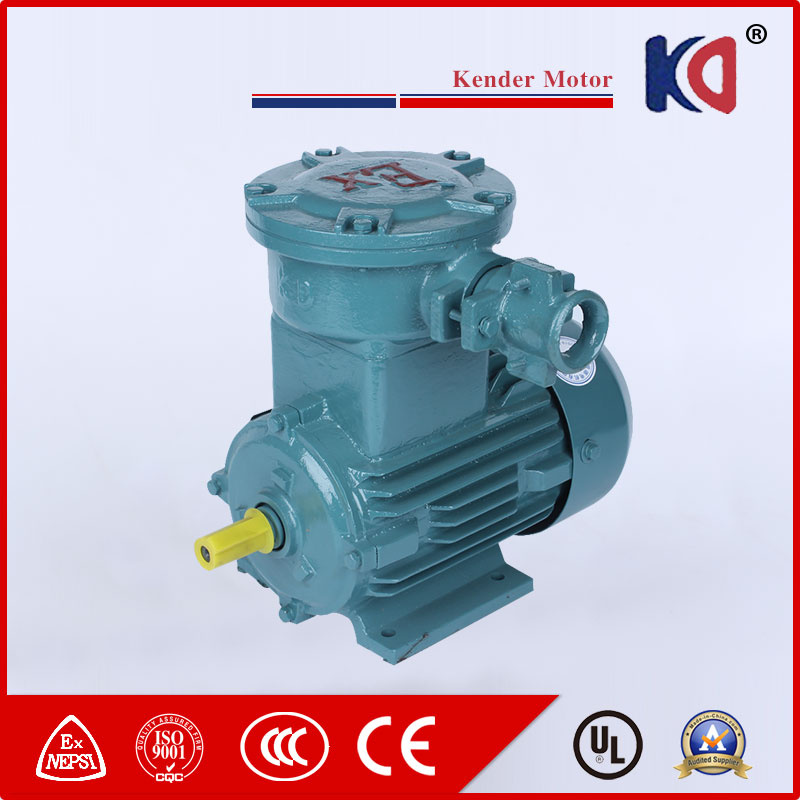

1HP 380V Explosion Proof Phase Electrical AC Motor
| Price: |
US $ 55-65/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
YB3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Yb3-71m1-6 |
| Rate Power: |
0.18kw |
| Current: |
0.67A |
| Speed: |
880 R/Min |
| Voltage: |
380V |
| Efficiency: |
56% |
| Power Factor: |
0.66 Cosφ |
| Stall/Rated Torque: |
1.9tst/Tn |
| Stall/Rated Current: |
4.0 Ist/in |
| Noise: |
52db |
| Application: |
Power Tools |
| Operating Speed: |
Adjust Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Explosion-Proof Three-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
| Brand: |
Kender |
Product Description
SPECIFICATION:
1,Rated voltage:380V 660V 1140V
2,Rated Frequency:50HZ/60HZ
3,Protection class:IP55
4,Insulation class:B,F,H
5,Pole:2-8
6,Rotor:Squirrel cage rotor
7,Flame-proof mark:ExdI, ExdII AT(1-4)ExdII BT(1-4)
8,Frame NO:62-355
9,Wire:100% copper
Operating limits
Ambient temperature:-15ºC≤θ≤40ºC
Altitude:Not more than 1000m
Operation Mode:Consecutive(S1)
Advantage of 1hp 380V Explosion Proof Phase Electrical AC Motor 1,YB2 Flame-proof motor
2,High efficiency,Energy saving
3,little vibration,low noise
4,ISO9001:2008,ATEX,ICE,CCC
5,Low loss
6,Convenient use and maintenance
Application of 1hp 380V Explosion Proof Phase Electrical AC Motor
Technical Data of 1hp 380V Explosion Proof Phase Electrical AC Motor | Type | Rate power | Current | Speed | Efficiency | Power Factor | Locked rotor
current/Rated
Current | Locked-rotor torque/Rated
Torque | Pull-out torque/Rated
Torque | Minimum
Torque/Rated
torque | Noise |
|
| KW | In(A) | (r/min) | (%) | (cosφ) | dB(A) |
| Ist/IN | Tst/TN | Tmax/TN | Tmax/TN |
| 63M1-2 | 0.18 | 0.52 | 2720 | 65.0 | 0.80 | 5.5 | 2.3 | 2.2 | 1.6 | 61 |
| 63M2-2 | 0.25 | 0.69 | 2720 | 68.0 | 0.81 | 5.5 |
| 71M1-2 | 0.37 | 0.99 | 2760 | 69.0 | 0.81 | 6.1 | 64 |
| 71M2-2 | 0.55 | 1.38 | 2760 | 74.0 | 0.82 | 6.1 | 2.3 |
| 63M1-4 | 0.12 | 0.44 | 1340 | 57.0 | 0.72 | 4.4 | 2.3 | 2.2 | 1.7 | 52 |
| 63M2-4 | 0.18 | 0.59 | 1340 | 60.0 | 0.73 | 4.4 |
| 71M1-4 | 0.25 | 0.78 | 1350 | 65.0 | 0.74 | 5.2 | 55 |
| 71M2-4 | 0.37 | 1.08 | 1350 | 67.0 | 0.75 | 5.2 |
| 71M1-6 | 0.18 | 0.67 | 880 | 56.0 | 0.66 | 4.0 | 1.9 | 2.0 | 1.5 | 52 |
| 71M2-6 | 0.25 | 0.88 | 880 | 59.0 | 0.68 | 4.0 |
| 80M1-6 | 0.37 | 1.27 | 890 | 62.0 | 0.70 | 4.7 | 54 |
| 80M2-6 | 0.55 | 1.54 | 890 | 75.4 | 0.72 | 4.7 | 2.1 | 55 |
| 80M1-8 | 0.18 | 0.86 | 650 | 51.0 | 0.61 | 3.3 | 1.8 | 1.9 | 1.3 | 52 |
| 80M2-8 | 0.25 | 1.13 | 650 | 54.0 | 0.61 | 3.3 |
| 90S-8 | 0.37 | 1.43 | 670 | 62.0 | 0.61 | 4.0 | 56 |
| 90L-8 | 0.55 | 1.79 | 670 | 63.0 | 0.61 | 4.0 | 2.0 |
| 315S-10 | 45 | 99.4 | 592 | 91.5 | 0.75 | 6.2 | 1.5 | 2.0 | 0.8 | 82 |
| 315M-10 | 55 | 120.1 | 592 | 92.0 | 0.75 | 6.2 |
| 315L1-10 | 75 | 162 | 592 | 92.5 | 0.76 | 5.8 |
| 315L2-10 | 90 | 190.5 | 592 | 93.0 | 0.77 | 5.9 |
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing.
About Kender :
1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly.
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)
Contact Kender
1,Your client satisfied on the right schedule and quality;
2,You can get good reputation from your market and obtain more orders;
3,Our professional service before and after sale;
4,The reasonable and competitive price;
5,Service is excellent.Any questions from you are welcome and will be replied in 24 hours.
6,Delivery on time
Name Card:Jiangsu Kender Motor CO., LTD
Contact Person:Lynn Zhu
Tel:86-519-69655640
Fax:86-519-85160023
Address:No.19 Wenya Road Qianhuang Town Wujin District Changzhou City,Jiangsu Province,China
Kender Main Product YB3 series explosion proof motor, YBX3 series energy-efficient explosion proof motor, Y2, YX3, YE3 series normal motor, YEJ series Electromagnetic braking motor, YVF2 series variable-frequency and variable-speed motor, cycloidal pin gear speed reducer Special long axis motor. At the same time for the customer customization of all kinds of different voltage and non-standard motor.
The company has professional testing instruments(The stator test system, Fully automatic intelligent factory test term) and sophisticated technology and equipment(vertical CNC lathe, CNC grinding machine, disposable porous drill and so on). Our products are manufactured and control in strict accordance with the IS09001 quality system. And successively obtained CCC certification, CE certification and explosion-proof motor industrial products production license.
The company has been adhering to the "total quality control, keep improving, perfect quality, customer satisfaction" concept of the camp, Continue to strengthen management innovation, overall raise modern quality management level, Insist on brand strategy, pay attention to product quality, Based on the market at home and abroad with Sophisticated technology and equipment perfect detection means, good after-sales service strict and efficient management system.
