1kv 16kw High Voltage Three Phase Induction AC Motor Price
| Price: |
US $ 1000-100000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
FXYR |
| Product Name: |
1kv High Voltage Three Phase Induction AC Motor |
| Frame Size/ Center Height: |
355 ~ 1120 mm |
| Mounting: |
Imb3 Imb35 Imv1 |
| Frequency: |
50 or 60 Hz |
| Cooling Method: |
IC611 IC616 Teaac |
| Frame/ Enclosure Material: |
Welded Steel Plate |
| Insulation Class: |
F |
| Duty: |
S1 |
| Voltage: |
1~11 Kv |
| Protection: |
IP54 IP55 |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Number Of Poles: |
2, 4, 6, 8, 10, 12, 14, 16 |
| Brand: |
China Electric |
Product Description
1kv 16kw high voltage three phase induction ac motor Price
I Brief introduction
1kv 16kw high voltage three phase induction ac motor Price, which is featured by high protection feature and outdoor application, is able to work under harsh environment. The motors can drive water pump, compressor, transportation machinery and common used machinery.
YKS series motors can start at full voltage.They are not allowed to make short circuit connection on rotor winding directly. It is necessary to regulate starting torque by the way of connecting starting transform.
The motor has box type construction. It is light in weight, good in rigid and is made of steel plates by melding. Air-water cooler is fixed at the top of frame with bolts and consists outside wind circuit in secondary cooling with water pump and water pool for motor, the primary cooling circulation is consisted of fan, cooler inside motor. The primary cooling medium (air) can complete the heat exchange with secondary cooling medium in cooling pipe (circulation water) through outside surface of pipe in the cooler as well as spring etc. Heat transfer conductor.
The rotor winding of YKS series motor is made of aluminum casting or copper bar.
II Comparison of different series High Voltage motorsN o.
| Squirrel-cage motor
| Y
| YKK
| YKS
| Y2
|
Slip-ring motor
| YR
| YRKK
| YRKS
| /
|
1
| Structure
| Box-type construction, made up of steel plates welded with each other
| Compact struction
|
2
| Cooling method
| IC01 or (IC11, IC21, IC31)
| IC611 or IC616
| IC81W
| IC411
|
3
| Natural ventilation, with top mounted protection cover
| With top mounted air-air cooler
| With top mounted air-water cooler
|
|
4
| Protection type
| IP23
| IP44 or IP54
| IP44 or IP54
| IP54
|
5
| Insulation
| F
|
6
| Mounting arrangement
| IMB3
|
7
| Voltage available
| 3kv, 3.3kv; 6kv, 6.6kv; 10kv, 11kv
|
8
| Frequency available
| 50Hz , 60Hz
|

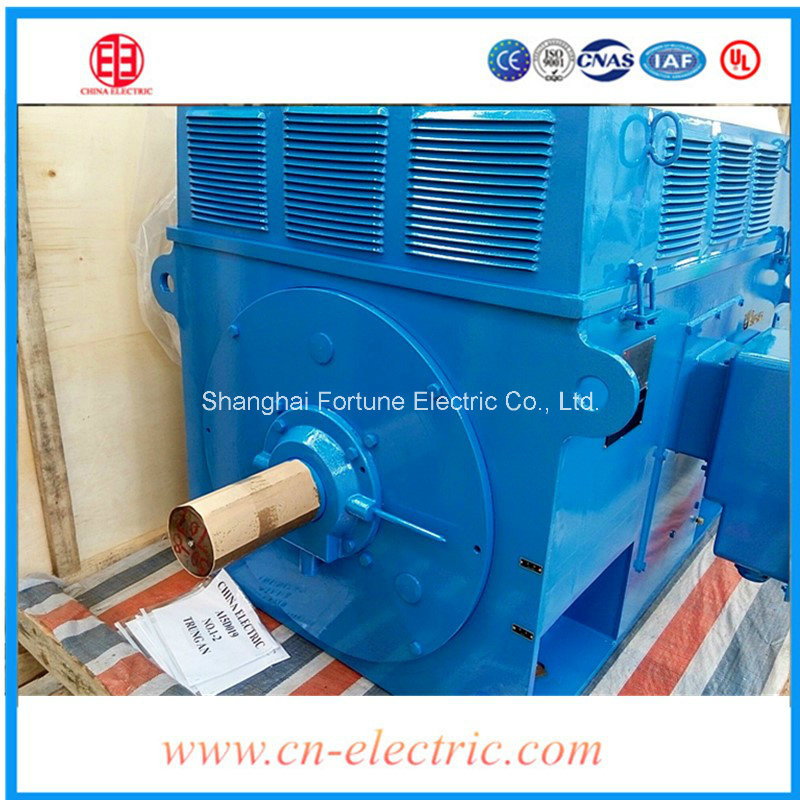

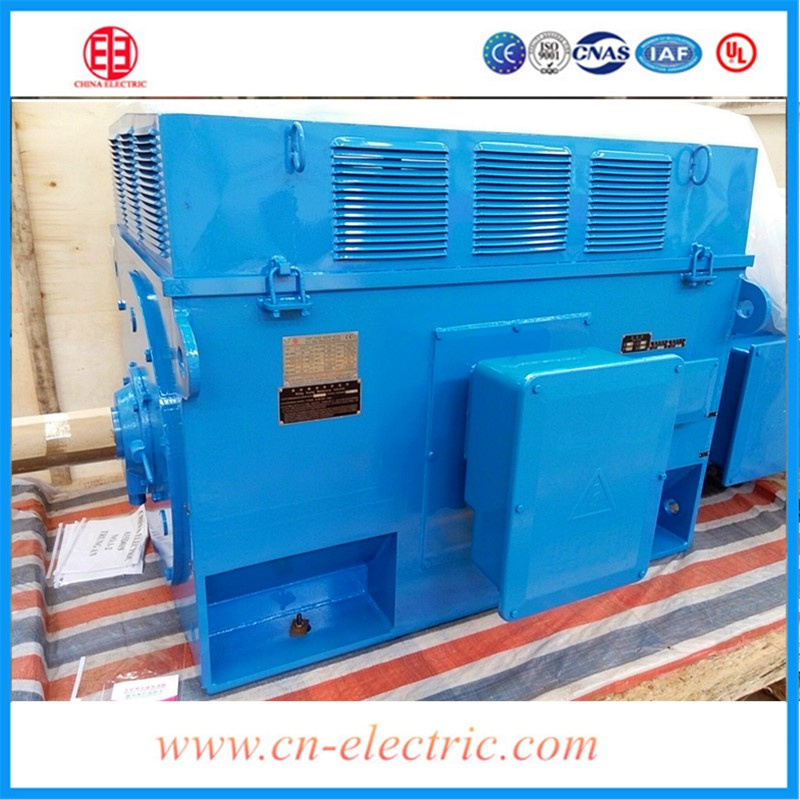

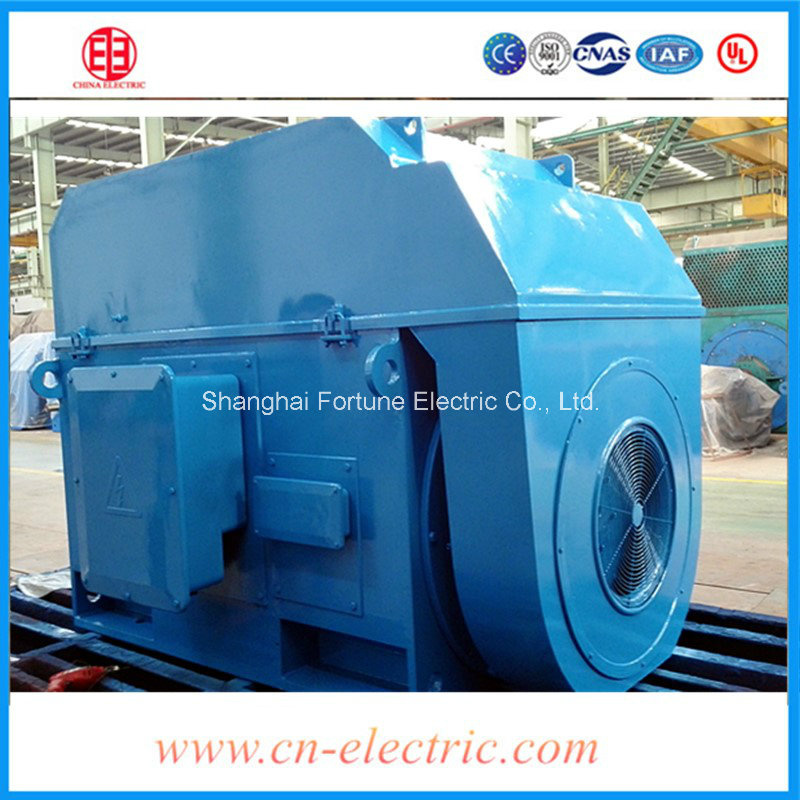

III Detailed pictures
IV Our Service
Pre-sales service: After-sales service:
* Inquiry and consulting support. * Training how to use and maintain the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our Factory. * If any question, directly call or email us.
V Company introduction
China Electric (Shanghai) Co., Ltd. is established since 1960s with over 8-year experience in export in Alibaba. We locate in Shanghai and has more than 1000 employees. Its factory
is about 30,000~50,000 square meters. With rich experience in manufacturing and exploring motors, the company has got ISO 9001:2000 Management Certification, CE Certificate for European Union, UL and CSA Certificate for North America, GOST Certificate for Russia and SONCAP Certificate for Nigeria for our motors.
Our main motor products:
1. Medium Size DC Motor, Large Size DC Motor, Z Z4 DC Motor
2. Vertical Hollow Shaft Motor
3. High Voltage Motor ( Y, YKS, YKK series squirrel cage motor, YR, YRKK, YRKS series slip ring motor, Y2 compacted squirrel cage motor)
4. Metallurgical Motor, Crane Motor ( YZ,YZR Series Crane and Metallurgical Motor, YTSZ, YTSP Series VVVF Variable Speed Motor For Metallurgical, NE series NEMA AC motor, YG series roll table motor, YGVF Series Converter Adjustable Speed Roller Table Motor)
VI. FAQ
1. How can I get a quotation?
You can send your inquiry to the below rectangular blank directly and we will reply you in 5 hours.
2. Can I get a sample?
Yes. We can offer you a sample but it might not be free. However, we can give discount in your later order.
3. Can I view your factory?
Yes. We accept view of our factory in before order. Tell us your agenda in advance and we
can arrange then.
China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.
China ELECTRIC is qualified to issue Form E Certificate of Origin for ASEAN customers, China-Pakistan FTA Certificate of Origin and all Preferential Certificate of Origin for Peru, Chile, India, Bangladesh and Sri Lanka. It also permitted to issue CIQ Certificate of Pre-shipment Inspection for exporting to Africa, such as Egypt.
China ELECTRIC is specialized in manufacturing and exporting electrical machines. Its main products are as below:
GW-JJ series aluminum shell mechanical tilting coreless medium frequency induction melting furnace, induction holding furnace;
GWG-J (GW-J) series steel shell hydraulic tilting coreless medium frequency induction melting furnace, induction holding furnace;
HX series electric steel-making arc furnace;
LF series ladle refinery furnace;
Continuous casting machine, CCM;
Z2, Z4 series DC motor;
Z series medium/large size DC motor;
ZYZJ series DC motor for sugarcane mill;
ZJJ800 series DC motor for rolling mill auxiliary drive
ZFQZ series frequently starting/braking DC Motor
ZSN4 series DC Motor for driving cement rotary kiln
Y, Y2, YKK, YKS series medium/large size squirrel-cage motor;
YR, YRKK, YRKS series medium/large size wound rotor slip ring motor;
YLS, YLKK, YLKS, YLST, YLKKT, YLKST series vertical type medium/large size squirrel-cage motor;
VHS series IEC standard Vertical hollow shaft motor;
OHS series NEMA standard Vertical hollow shaft motor;
China ELECTRIC is one of the biggest manufacturer and exporter for medium frequency induction melting furnace, high voltage motor and DC motor.
Customer satisfaction is the mission of China ELECTRIC. Professional, timely and careful is the basic essence and work attitude of China ELECTRIC's every member.
Thanks to the competitiveness both in quality, service and price, China ELECTRIC's products are distributed to most of the countries and regions around the world, such as Bulgaria, Croatia, Romania, Slovenia, Turkey, Armenia, Azerbaijan, Ukraine, Kazakhstan, Uzbekistan, Russia, Iran, Dubai, Yemen, Saudi Arabia, Egypt, Nigeria, South Africa, Pakistan, Sri Lanka, Mexico, Chile, Peru, Bolivia, Uruguay, Argentina, Australia, Singapore, Malaysia, Vietnam, Thailand, Indonesia, Philippines and etc. China ELECTRIC warmly welcomes both former and new customers to further develop business relationship and partnership for prosperous futures.
