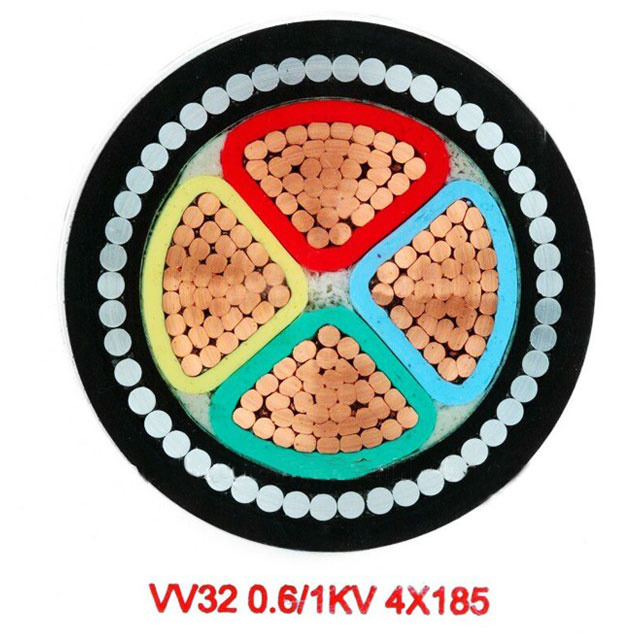

1kv Copper Conductor XLPE Insulation PVC Sheath Shielded Electrical Power Cable
| Price: |
US $ 0.1-15/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
YJV32, YJLV32 |
| Popular Size: |
95mm 120mm 150mm |
| Color: |
Black,Red,Yellow,Blue,Brown,Green |
| Rated Voltage: |
0.6/1kv |
| Business Type: |
Manufacturer |
| Factory Location: |
Henan |
| Standard Applicated: |
IEC 60502-1 |
| Key Word: |
3 Core Armoured Cable |
| Key Words: |
Armoured Cable |
| Key Words 2: |
4 Core Armoured Cable |
| Key Words 3: |
Aluminum Power Cable 4X95mm |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Aluminum |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Range Of Application: |
Industrial or Power Station |
| Brand: |
Jytop |
Product Description
1kv Copper Conductor XLPE Insulation PVC Sheath Shielded Electrical Power CableDescription:1. Voltage:0.6/1KV
2. Conductor: Aluminum cable, Class 2
3. Insulation: PVC
4. Sheath: PVC
5. Armourd type: Steel wire armourd Cable (swa cable ), or Steel tape armoured cable (sta cable)
6.Popular Size: Aluminum power cable 4x95mm
3 core armoured cable , 4 core armoured cable
25mm armoured cable , 16 mm armoured cable, 10 mm armoured cable ,
6mm armoured cable, 6 mm swa cable 1. Operating Characteristics of
PVC armoured cable.Rated voltage: 0.6/1(1.2)kV
Max. Permissible continuous operating temperature of conductor: 70° C
Max. Temperature of conductor during short-circuit (5s max. Duration) shall not exceed:
Nominal cross section of conductor ≤ 300mm2: 160° C;
Nominal cross section of conductor >300mm2: 140° C
The ambient temperature under installation should not be lower than: 0 ° C
The bending radius of cable is recommended as following:
For single core cable: Not less than 20 times of the diameter of cable
For multi-core cable: Not less than 15 times of the diameter of cable2. ApplicationThe cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, in tunnel, in cable trench or in conduit, unable to bear external mechanical force.3. Manufacturing StandardsIEC 60502-1 & Chinese national standard GB/T 12706-2008 We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also.Main technical data of 0.6/1KV, four cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables

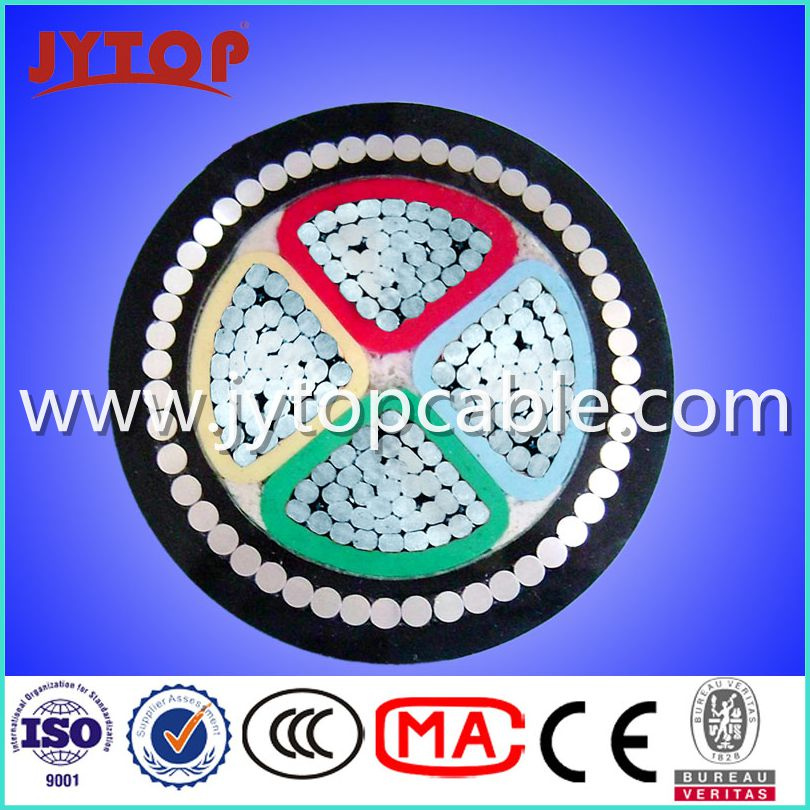

CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Cable size |
Conductor type | Nominal thickness of PVC insulation (mm) | Approx. diameter of steel wire(mm) | Nominal thickness of PVC sheath(mm) | Approx. cable overall diameter (mm) | Max. D.C
resistance @
200C (Ω/km) |
| 4x1.5mm2 | RE or RM | 0.8 | 0.8 | 1.8 | 14.9 | 18.1 |
| 4x2.5mm2 | RE or RM | 0.8 | 1.25 | 1.8 | 16.7 | 12.1 |
| 4x4mm2 | RE or RM | 1.0 | 1.25 | 1.8 | 18.8 | 7.41 |
| 4x6mm2 | RE or RM | 1.0 | 1.25 | 1.8 | 20.1 | 4.61 |
| 4x10mm2 | RM | 1.0 | 1.6 | 1.8 | 23.9 | 3.08 |
| 4x16mm2 | RM | 1.0 | 1.6 | 1.8 | 26.4 | 1.91 |
| 4x25mm2 | SM | 1.2 | 1.6 | 1.9 | 27.8 | 1.20 |
| 4x35mm2 | SM | 1.2 | 1.6 | 2.0 | 30.2 | 0.868 |
| 4x50mm2 | SM | 1.4 | 1.6 | 2.1 | 33.7 | 0.641 |
| 4x70mm2 | SM | 1.4 | 2.0 | 2.3 | 38.3 | 0.443 |
| 4x95mm2 | SM | 1.6 | 2.0 | 2.4 | 43.2 | 0.320 |
| 4x120mm2 | SM | 1.6 | 2.5 | 2.6 | 47.8 | 0.253 |
| 4x150mm2 | SM | 1.8 | 2.5 | 2.7 | 51.8 | 0.206 |
| 4x185mm2 | SM | 2.0 | 2.5 | 2.9 | 56.9 | 0.164 |
| 4x240mm2 | SM | 2.2 | 2.5 | 3.1 | 63.5 | 0.125 |
| 4x300mm2 | SM | 2.4 | 3.15 | 3.4 | 71.1 | 0.100 |
| 4x400mm2 | SM | 2.6 | 3.15 | 3.7 | 78.5 | 0.0778 |
Note: RE= round conductor RM = stranded conductor SM=sectional conductor Main technical data of 0.6/1KV, four cores, Aluminum conductor, PVC insulated, double steel tape armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/DSTA/PVC or PE
Cable size |
Conductor type | Nominal thickness of PVC insulation (mm) | Nominal thickness of steel tape(mm) | Nominal thickness of PVC sheath(mm) | Approx. cable overall diameter (mm) | Max. D.C
resistance @
200C (Ω/km) |
| 4x1.5mm2 | RE or RM | 0.8 | 0.2 | 1.8 | 14.2 | 18.1 |
| 4x2.5mm2 | RE or RM | 0.8 | 0.2 | 1.8 | 15.1 | 12.1 |
| 4x4mm2 | RE or RM | 1.0 | 0.2 | 1.8 | 17.2 | 7.41 |
| 4x6mm2 | RE or RM | 1.0 | 0.2 | 1.8 | 18.5 | 4.61 |
| 4x10mm2 | RM | 1.0 | 0.2 | 1.8 | 21.6 | 3.08 |
| 4x16mm2 | RM | 1.0 | 0.2 | 1.8 | 24.1 | 1.91 |
| 4x25mm2 | SM | 1.2 | 0.2 | 1.8 | 23.8 | 1.20 |
| 4x35mm2 | SM | 1.2 | 0.2 | 1.8 | 25.9 | 0.868 |
| 4x50mm2 | SM | 1.4 | 0.5 | 2.0 | 31.4 | 0.641 |
| 4x70mm2 | SM | 1.4 | 0.5 | 2.1 | 35.0 | 0.443 |
| 4x95mm2 | SM | 1.6 | 0.5 | 2.3 | 39.9 | 0.320 |
| 4x120mm2 | SM | 1.6 | 0.5 | 2.4 | 43.1 | 0.253 |
| 4x150mm2 | SM | 1.8 | 0.5 | 2.6 | 47.3 | 0.206 |
| 4x185mm2 | SM | 2.0 | 0.5 | 2.8 | 52.3 | 0.164 |
| 4x240mm2 | SM | 2.2 | 0.5 | 3.0 | 58.4 | 0.125 |
| 4x300mm2 | SM | 2.4 | 0.5 | 3.2 | 64.3 | 0.100 |
Note: RE= round conductor RM = stranded conductor SM=sectional conductorWe can producing the Aluminum cable, according to different Standard, such as BS,DIN,ASTM,IEC,VDE and so on, for the Armoured cable, there are Steel wire armoured cable, steel tape armoured cable and Aluminum wire armoured cable for you selection.
Copper cable steel tape armoured cableWhy Choose us?
For over 20 years, Zhengzhou Jinyuan Wire and Cable Co., Ltd., as a professional armoured cable, PVC cable, Aluminum cable manufacturer has been producing customized cable for a wide range of applications based on high quality, excellent service and competitive market prices. This is an elite team with experienced personnel and strong technical support. Our achievements benefit by having access to the largest market for cheap labor and abundant resources in China and our determination to exceed our clients' expectations.
PRODUCTS & STANDARDS
We can produce more than 2,000 types of cables and wires, such as
Bare Conductor: AAC, AAAC, ACSR, ACSR/AW, ACAR, ACSS, ACSS/AW, Aluminum Clad Steel Wire/Strand, Bare Copper Conductors, Copper Clad Steel Wire/Strand, Copper Clad Aluminum(CCA), Galvanized Steel Wire/Strand, etc.
Overhead Insulated Cable: Covered Line Single Core Cable and Aerial Bundled Cable (ABC). ABC includes Duplex, Triplex, Quadruplex and more Cores Service Drop Cable.
PVC Insulated Wire up to 450/750V
PVC or XLPE Insulated Power Cable from 1kV to 36kV
Control Cable
Welding Cable
Rubber Cable
We can produce cables according to the standards of IEC, ASTM, EN (BS, DIN, NF, etc.), AS/NZ and meet customers' special requirements.
ACHIEVEMENTS & COMMITMENT
Our cable has been exported to South-East Asia, South Asia, Middle-East, Europe, North and South America, Africa, Australia & New Zealand and so on. Zhengzhou Jinyuan Wire and Cable Co., Ltd.'s commitment is to be recognized as a zero-defect world class manufacturer in cable industry through continuous improvement of our quality, processes, and products, and by our determination to exceed our clients' expectations.
Welcome to contact us for more information about the armoured cable or other cables.
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
Company website: www.jytopcable.com
