1kv to 3kv Transformer Bushing Set 250A and 630A

Name: 1kv to 3kv Transformer Bushing Set 250A and 630A
Brand: all-electronics-online.com
SKU: 796773805
Availability: InStock
Rating: 4.3 (49 reviews)

Price:	US $ 5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	1KV/250A
Voltage:	1kv---3kv
Current:	250A---630A
Application:	Transformer Accessories
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Separated Winding Transformer
Brand:	Powlik

Product Description

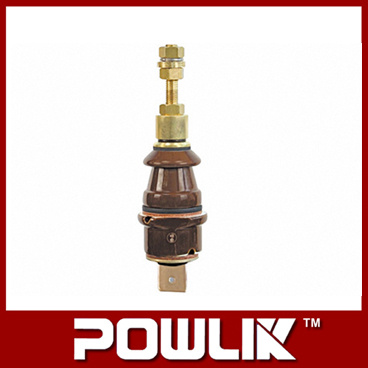

1kv to 3kv Transformer Bushing Set 250A and 630A

Bushing Insulator Set for power transformer, complete assemblyed including porcelain bushing insulators, conductivity brass rod, brass nut, and rubber sealing rings etc.

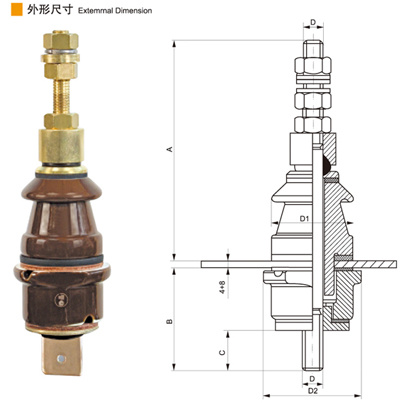

Bushing Data Sheet and Dimensions:

Type	A(Max)	B	C	D	D1	D2	Tank Hole	Weight
1KV/250A	138	68	25	M12	Ф50	Ф60	Ф28	0.7KG
3KV/250A	180	94	25	M12	Ф75	Ф70	Ф39	1.3KG
1KV/630A	178	82	37	M20	Ф70	Ф85	Ф45	2.0KG
3KV/630A	210	110	37	M20	Ф90	Ф85	Ф45	2.5KG
