| Prod Model: |
XLPE cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black,Red,Yellow,Blue,Brown,Green |
| Popular Size: |
95mm 120mm 150mm |
| Rated Voltage: |
0.6/1kv |
| Business Type: |
Manufacturer |
| Certificate: |
CE, ISO 9001 |
| Key Word 1: |
XLPE Cable |
| Key Word 2: |
Armoured Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Range Of Application: |
Industrial or Power Station |
| Brand: |
Jytop |
Product Description
Company Description1. CE, ISO 9001 Certificaes
2. More than 23 years experiences
3. Professional Manufacturer for armoured cable, xlpe cable with Factory located in Henan Province.
4. Quick response and fast delivery.

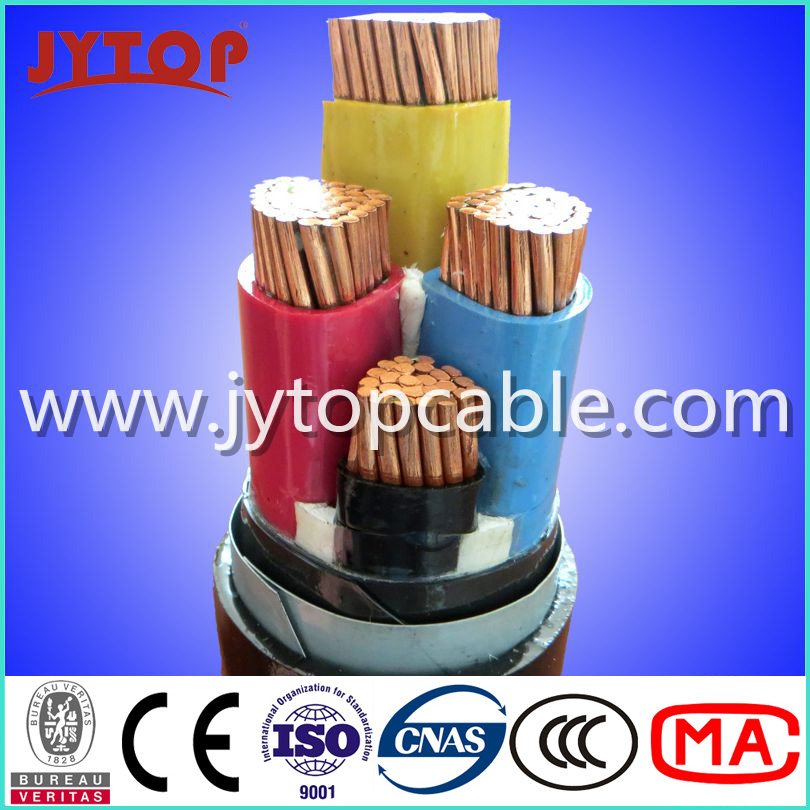

5. Serve everyone with heart and soul.1kv XLPE Cable, Armoured Cable STA Cable with CE Certificate1. Operating Characteristics
Rated voltage: 0.6/1(1.2)kV
Max. Permissible continuous operating temperature of conductor: 90 ° C
Max. Temperature of conductor during short-circuit (5s max. Duration) shall not exceed: 250 ° C
The ambient temperature under installation should not be lower than: 0 ° C
The bending radius of cable is recommended as following:
For single core cable: Not less than 15 times of the diameter of cable
For multi-core cable: Not less than 12 times of the diameter of cable
When the armored single core cable used for Alternative Current(AC) system, the armoring material should be non-magnetic.
2. Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, in tunnel, in cable trench or direct in ground, able to bear external mechanical force, but unable to bear large pulling force.
3. Manufacturing Standards
IEC 60502-1 & Chinese national standard GB/T 12706-2008 We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also.STA Cable

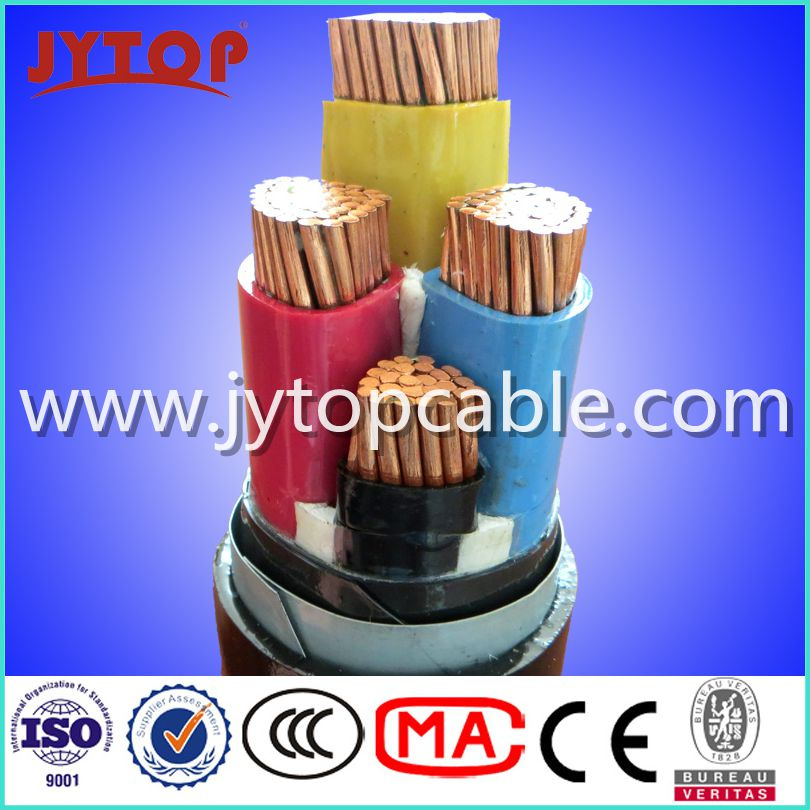

Armoured cable

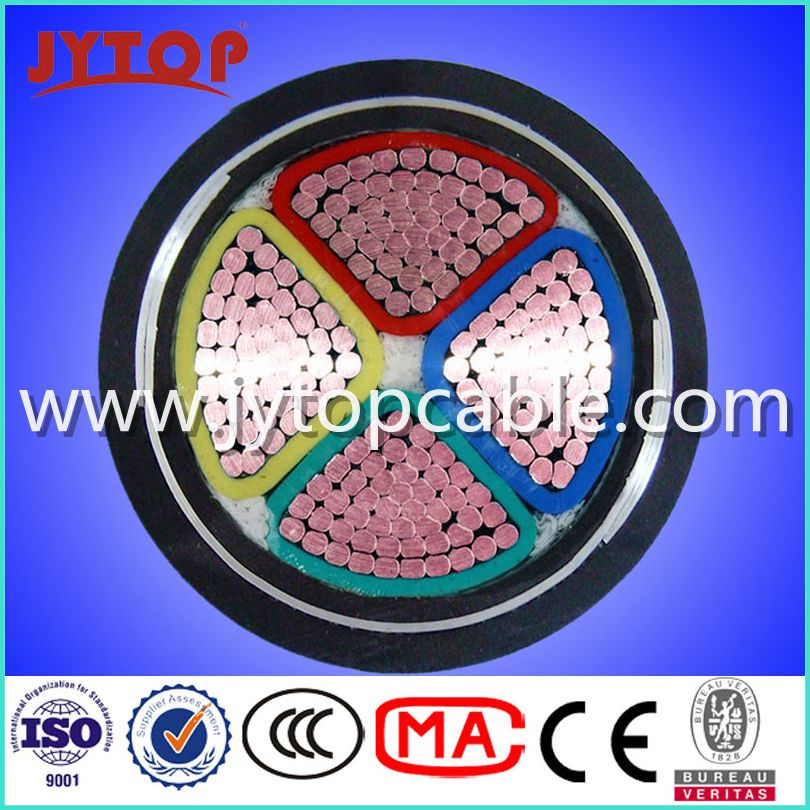

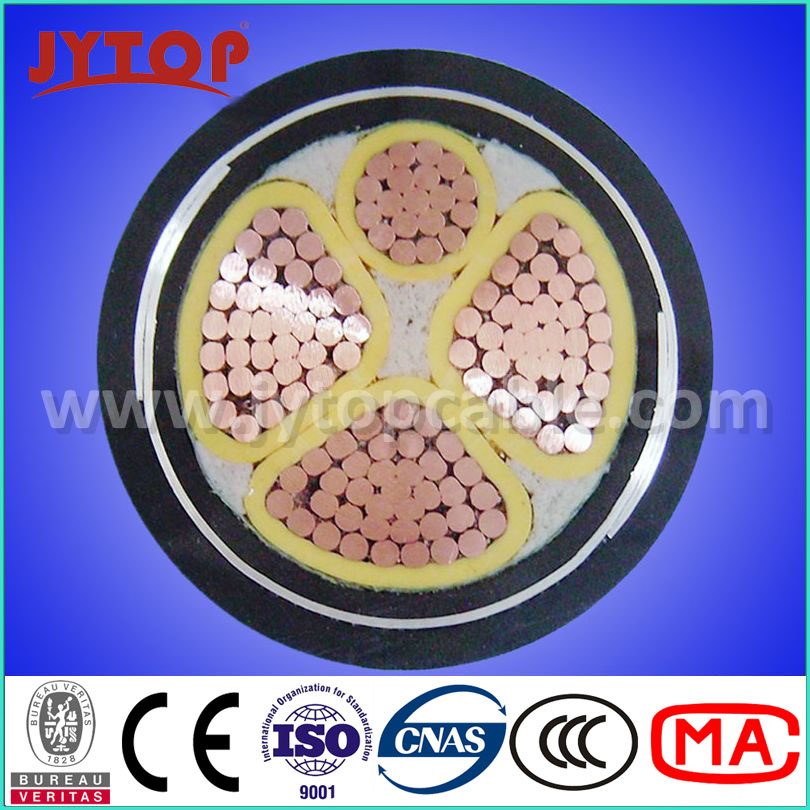

XLPE CABLE, 3+1 Core
NOTE:
If you want to know more details about XLPE armoured cable this kind of products, please visit our website(homepage) because we have no ways to show so much information on this platform. Thank you.
Cable size |
Conductor
type | Nominal thickness of XLPE insulation(mm) | Approx.
diameter
of steel wire(mm) | Nominal
thickness of PVC or PE
sheath(mm) | Approx. cable
overall diameter (mm) | Max. D.C resistance @ 20 0 C (Ω/km) |
Phase
core | Earth
core | Phase
core | Earth
core | Phase
core | Earth
core |
| 3x2.5+2x1.5mm 2 | RE | RE | 0.7 | 0.7 | 1.25 | 1.8 | 17.6 | 7.41 | 12.1 |
| 3x4+2x2.5mm 2 | RE | RE | 0.7 | 0.7 | 1.25 | 1.8 | 118.7 | 4.61 | 7.41 |
| 3x6+2x4mm 2 | RE | RE | 0.7 | 0.7 | 1.25 | 1.8 | 20.0 | 3.08 | 4.61 |
| 3x10+2x6mm 2 | RM | RE | 0.7 | 0.7 | 1.6 | 1.8 | 22.6 | 1.83 | 3.08 |
| 3x16+2x10mm 2 | RM | RM | 0.7 | 0.7 | 1.6 | 1.8 | 24.8 | 1.15 | 1.83 |
| 3x25+2x16mm 2 | SM | RM | 0.9 | 0.7 | 1.6 | 1.8 | 30.5 | 0.727 | 1.15 |
| 3x35+2x16mm 2 | SM | RM | 0.9 | 0.7 | 1.6 | 1.9 | 32.5 | 0.524 | 1.15 |
| 3x50+2x25mm 2 | SM | SM | 1.0 | 0.9 | 2.0 | 2.0 | 37.6 | 0.387 | 0.727 |
| 3x70+2x35mm 2 | SM | SM | 1.1 | 0.9 | 2.0 | 2.2 | 41.5 | 0.268 | 0.524 |
| 3x95+2x50mm 2 | SM | SM | 1.1 | 1.0 | 2.0 | 2.3 | 46.0 | 0.193 | 0.387 |
| 3x120+2x70mm 2 | SM | SM | 1.2 | 1.1 | 2.5 | 2.5 | 51.3 | 0.153 | 0.268 |
| 3x150+2x70mm 2 | SM | SM | 1.4 | 1.1 | 2.5 | 2.6 | 54.1 | 0.124 | 0.268 |
| 3x185+2x95mm 2 | SM | SM | 1.6 | 1.1 | 2.5 | 2.8 | 59.5 | 0.0991 | 0.193 |
| 3x240+2x120mm 2 | SM | SM | 1.7 | 1.2 | 2.5 | 3.0 | 65.3 | 0.0754 | 0.153 |
| 3x300+2x150mm 2 | SM | SM | 1.8 | 1.4 | 2.5 | 3.2 | 71.1 | 0.0601 | 0.124 |
Why Choose us?
For over 20 years, Zhengzhou Jinyuan Wire and Cable Co., Ltd., as a professional cable manufacturer has been producing customized cable for a wide range of applications based on high quality, excellent service and competitive market prices. This is an elite team with experienced personnel and strong technical support. Our achievements benefit by having access to the largest market for cheap labor and abundant resources in China and our determination to exceed our clients' expectations.
PRODUCTS & STANDARDS
We can produce all kinds of cables and wires, such as
Bare Conductor: AAC, AAAC, ACSR, ACSR/AW, ACAR, ACSS, ACSS/AW, Aluminum Clad Steel Wire/Strand, Bare Copper Conductors, Copper Clad Steel Wire/Strand, Copper Clad Aluminum(CCA), Galvanized Steel Wire/Strand, etc.
Overhead Insulated Cable: Covered Line Single Core Cable and Aerial Bundled Cable (ABC). ABC includes Duplex, Triplex, Quadruplex and more Cores Service Drop Cable.
PVC Insulated Wire up to 450/750V
PVC or XLPE Insulated Power Cable from 1kV to 36kV
Control Cable
Welding Cable
Rubber Cable
We can produce cables according to the standards of IEC, ASTM, EN (BS, DIN, NF, etc.), AS/NZ and meet customers' special requirements.
ACHIEVEMENTS & COMMITMENT
Our cable has been exported to South-East Asia, South Asia, Middle-East, Europe, North and South America, Africa, Australia & New Zealand and so on. Zhengzhou Jinyuan Wire and Cable Co., Ltd.'s commitment is to be recognized as a zero-defect world class manufacturer in cable industry through continuous improvement of our quality, processes, and products, and by our determination to exceed our clients' expectations.
Welcome to contact us for more information about the 10kv cable, 10kv xlpe cable or other cables.
1. Is it a cable factory?
Definitely, we are a wire and cable Manufacturer with 23 years history, our factory located in Zhengzhou, Henan Province,China.
2. Any certificates:
Yes, the CE and ISO 9001:2008 are available.
For bare conductors there are Type Test Report available
3. What Standards you are using?
We can producing the wire and cables according to the popular Standards, such asIEC, ASTM, BS, DIN,SANS,CSA or as the clients requirements
4. OEM services?
Yes, We supply OEM services.
5. Delivery time
It depends on the cable type and quantity you need, you can contact us for the details
6. Payment terms:
Usually we would prefer L/C, T/T, or negotiate with us.
7. Packing
Usually it is packing in coil for PVC builing wire, for the powe cable and bare conductors used to packing by Drums, or as clients requirements.
Welcome to contact us for more information about the XLPE CABLE, ARMOURED CABLE or other cables.
