| Prod Model: |
EX1-10kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
1-3kVA |
| Output Power Factor: |
0.8 |
| Wave Form: |
Pure Wave Form |
| Output: |
110/220VAC |
| Appliances: |
Home, Bank, Hospital, Severs etc |
| Transfer Time: |
0ms |
| Optional Internal Batteries: |
Yes |
| Efficiency: |
88% |
| Display: |
LED/LCD Display |
| Warranty: |
2 Years |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Zlpower |
| Output Capacity: |
1-10kVA |
Product Description

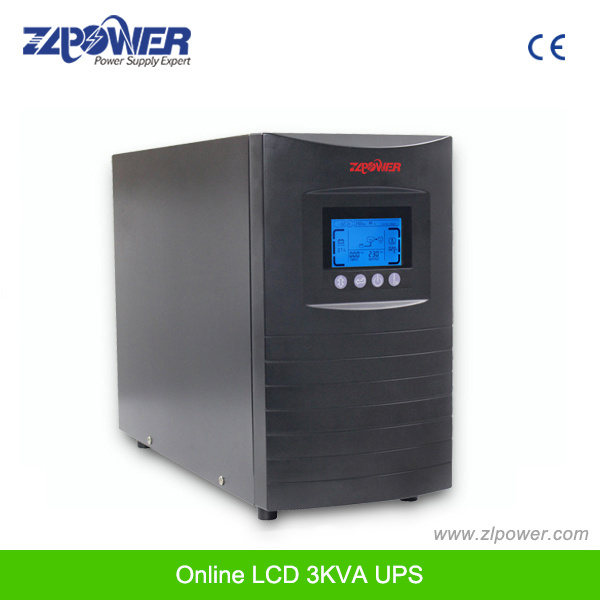

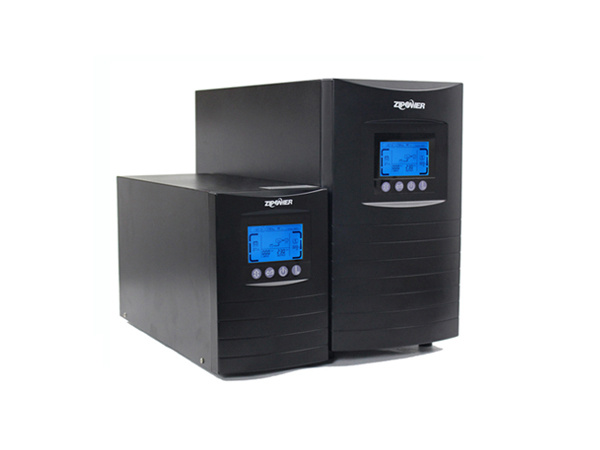

1kva-3kva Double conversion UPS with long back up time online ups
Uninterruptible Power Supply EX1K, EX2K, EX3K.
LCD digital display show voltage, frequency, battery info

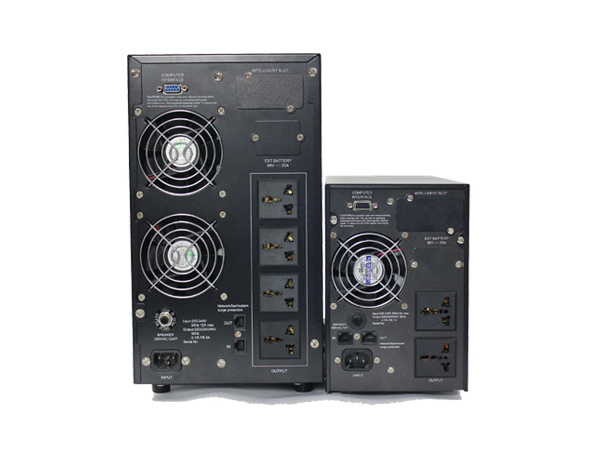

Back panel with sockets and terminal blocks.
Double conversion Online UPS systems, True pure sine wave online ups.
High efficiency and low power consumption.

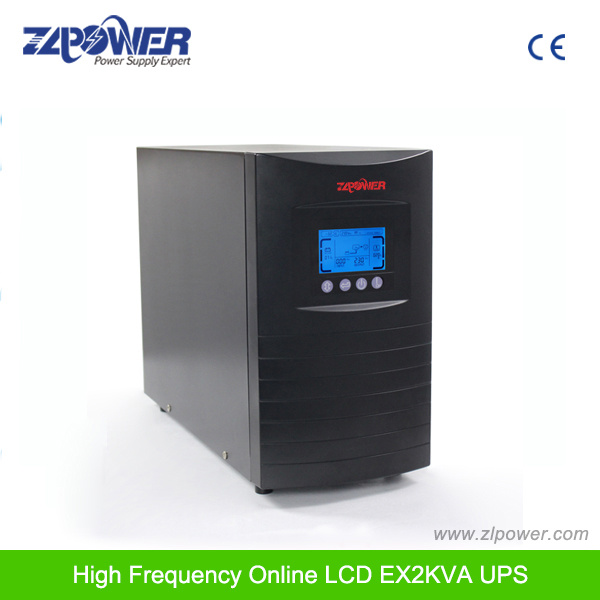

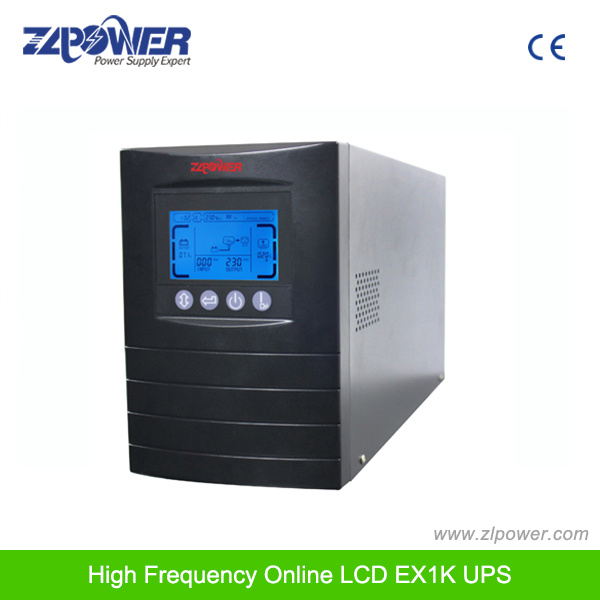

High frequency online UPS EX1K, EX2K, EX3K is LCD digital display double conversion uninterruptible power supply, pure sine wave output wave form.
There are two models, one is standard online UPS with inside batteries such as EX1K, the other is long backup time online UPS without batteries such as EX1KL, will backup long time after connecting with external battery banks.
Application:
Servers, sensitive electronic equipment, telecom, bank, bureau, office, home, ATM, traffic, hospital, public security and so on.
Main Features:
1. Large blue ground LCD digital display shows Detailed Real-Time UPS Status and parameters.
2. Set Output voltage, Frequency parameter and bypass function on the display.
3. Advanced MCU microprocessor control technology, ensure long life reliability.
4. Wide input voltage range, Zero transfer time.
5. Excellent Protection against over voltage, over load, over current, over charge and so on.
6. Input L and N lines reverse wiring detection, Auto start when AC back.
7. DC start function, Input PFC revise function.
8. Humanization bypass output can be adjustable.
9. Smart RS232 communication with monitoring software.
10. Intelligent slot available for AS-400 Dry contact and SNMP card Remote control.
11. Strong antijamming capability.
12. Available to work with generators.
13. Lightning, surge, short circuit, Network/fax/modem surge protection.
14. Corresponding plug and sockets to different countries.
Photos
Technical specifications for high frequency online UPS EX1K-EX3K:
Online UPS MODEL | T1K/EX1K | T2K/EX2K | T3K/EX3K | T1KL/EX1KL | T2KL/EX2KL | T3KL/EX3KL |
| CAPACITY | VA/W | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | 1000VA/800W | 2000VA/1600W | 3000VA/2400W |
| INPUT | Nominal Voltage | 110/115/120VAC or 220/230/240VAC |
| Voltage Range | 60~138VAC or 115~300VAC |
| Frequency Range | 50Hz: 46~54Hz; 60Hz: 56~64Hz |
| Phase | Single phase with Ground |
| Power Factor | >=0.97 |
| OUTPUT | Voltage | 110/115/120*(1±2%)VAC or 220/230/240*(1±2%)VAC |
| Frequency | 50/60Hz(Adjustable)
50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz(1±0.2%)
60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1±0.2%) |
| Wave Form | Pure Sine Wave |
| Power Factor | 0.7 |
| Harmonic Distortion | <3% THD (Linear Load), <7% THD (Non-Linear Load) |
| Overload Capacity | 110%~150% maintain 30s then turn to bypass output, over 150% maintain 200ms |
| Current Crest Ratio | 3:1 |
| Connections | IEC320*4 | IEC320*6 | IEC320*3 & Terminal block | IEC320*4 | IEC320*6 | IEC320*3 & Terminal block |
| Efficiency | To AC Mode | 85% |
| To Battery Mode | 83% |
| Battery | Type | Sealed free maintenance lead acid battery |
| Nominal DC voltage | Built in batteries 12v7.2ah | 36VDC | 96VDC | 96VDC |
| Quantity | 3pcs | 8pcs | 8pcs | Depends on requested back-up time |
Back-up Time
(Full load) | >=7 minutes | >=8 minutes | >=6 minutes | Depends on the capacity of external battery bank |
| Recharge Time | 5hours to 90% of capacity full discharge | Depends on the capacity of external battery bank |
| Charge current(MAX) | 1.0A | 1.0A | 1.0A | 7A | 8A | 8A |
| Charge voltage | 41.1Vdc ± 0.6V | 110Vdc ± 0.4V | 41.1Vdc ± 0.6V | 110Vdc ± 0.4V |
| Bypass | Automatic Transfer | On overload and UPS failure |
| Before UPS Power-on | Default "NO" user adjustable to "YES" |
| Transfer Time | | 0ms, less than 4ms from inverter to bypass and vice versa |
| Indicators | LCD Display | UPS status, I/P & O/P voltage& frequency, Battery voltage, Battery capacity, Loading, Fault code |
| Audible Alarm | | Bypass, On battery mode, Battery low, Overload, Fault |
| Acoustic noise | At 1 meter distance | <45dB | <50dB | <50dB | <45dB | <50dB | <50dB |
| Communications | Intelligent RS232 serial port | Software support Windows family software, Linux, Sun network operating system, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX and MAC |
| SNMP (Optional) | Remote control UPS through SNMP management and Internet |
| USB (Optional) | Windows family software and Mac OS |
| Network Surge Protection | | RJ45 I/O port available for network or FAX/Telephone line/Modem |
| Environmental | Operating Temperature | 0~40 °C |
| Operating Humidity | 20~90% ( Non Condensing) |
| Weight | Net weight (kg) | 14 | 31.5 | 32 | 7 | 13.5 | 14 |
| UPS Dimension | L*W*H (mm) | 400*145*220 | 460*192*348 | 460*192*348 | 400*145*220 | 460*192*348 | 460*192*348 |
