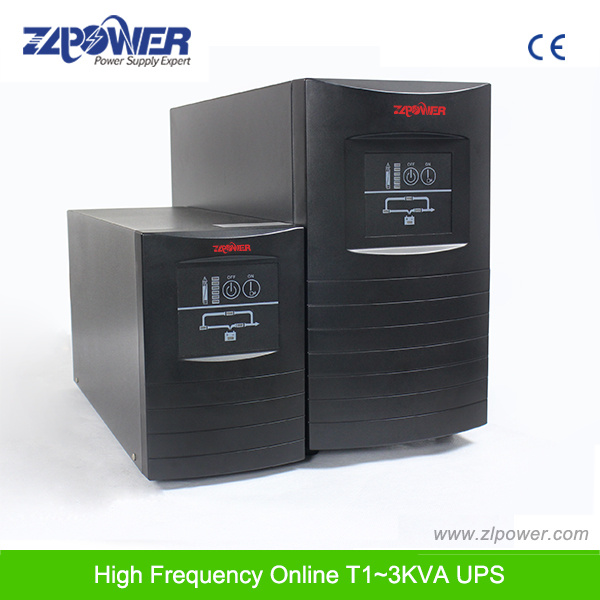

1kVA~3kVA No Break Power Supply UPS

Name: 1kVA~3kVA No Break Power Supply UPS
Brand: all-electronics-online.com
SKU: 676283795
Availability: InStock
Rating: 4.7 (144 reviews)

Price:	US $ 114-256/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	T1K~T3KL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	1kVA~3kVA
Input Voltage:	220,230,240V
Frequency:	50/60Hz
Output Power Factor:	0.7/0.8
Wave:	Pure Sine Wave
Input Phase:	Single Phase with Ground
Current Crest Ratio:	3:1
AC Mode Efficiency:	85%
Battery Mode Efficiency:	83%
Operating Temperature:	0-40centi-Degree
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit
Brand:	Zlpowr,OEM

Product Description

1KVA~3KVA No Break Power Supply UPS

1: No break power can convert DC power to AC power without break, after main power fail
2: Short Circuit Protection for No Break Power
3: No Break Power, Uninterruptible Power Supply (UPS)
Capacity 1K-20kVA

KEY FEATURES
True on-line double conversion technology with advanced microprocessor control
Wide input voltage range
Zero transfer time
Protection against all type of power problems
Self test while start of the UPS
Site wiring fault warning
On-battery power-on function
Smart RS232 communication interface
Intelligent slot available
Sealed lead acid, maintenance free battery

APPLICATION
Servers, Data-Center, Critical network devices, Sensitive electronic equipment, Telecom, etc.

UPS Model		T1K	T1KL	T2K	T2KL	T3K	T3KL
Capacity		1000VA/700W		2000VA/1400W		3000VA/2100W
Input	Voltage	(115~300)VAC
	Frequency	46~54Hz/56~64Hz
Output	Voltage	220/230/240(1±1%)VAC
	Frequency	50/60Hz(Adjustable) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz(1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1±0.2%)
Output Wave Form		Sine Wave
Back-up Time	Full Load	≥5′	Depends on the capacity of the external battery bank	≥9′	Depends on the capacity of the external battery bank	≥5′	Depends on the capacity of the external battery bank
	Half Load	≥14′		≥21′		≥15′
Battery Nominal DC Voltage		36VDC		96VDC
Transfer Time		0ms
Overload Capacity		110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms
Communications		RS-232+Intelligent Slot
Environment	Temperature	0C~40C
	Humidity	15%~90%
Dimensions (WDH) mm		145400220		192460340
Net Weight (Kg)		14	7	34	13.5	34.5	14

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
