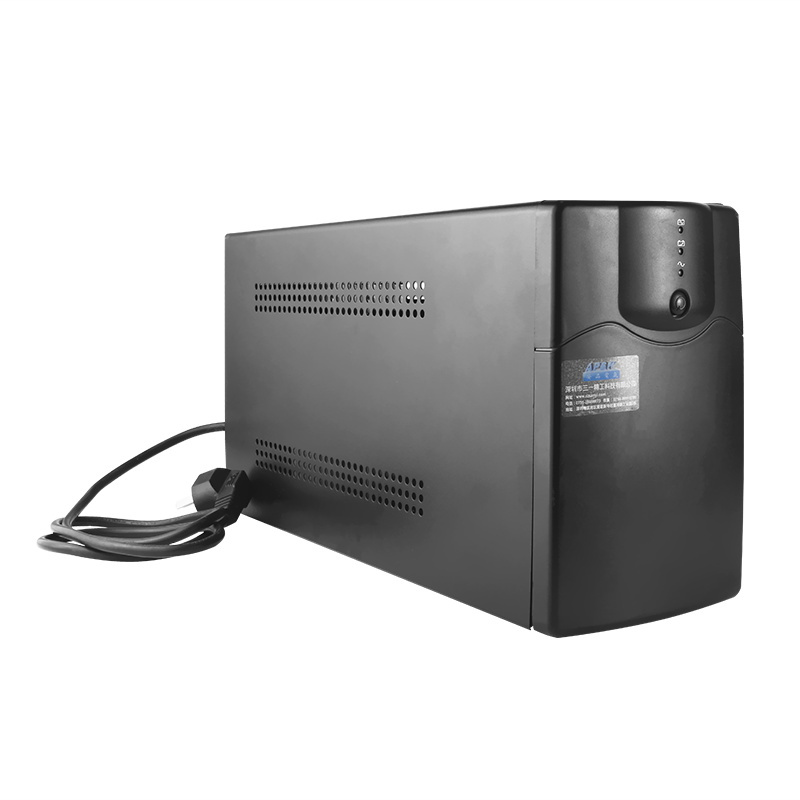

1kVA/600W Battery Backup UPS Power Supply
| Price: |
US $ 300-400/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
1KVA/600W |
| Rated Voltage: |
220VAC |
| Voltage Range: |
110-300VAC |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Sanyi Power |
Product Description
Backup UPS Power Supply 1KVA/600W 1.Features:>.The output work factor is 0.8,which is more suitable for the development trend of load ;
>The efficiency of the machine is as high as 90%,which reduces the power loss of UPS;
>Intelligent battery management,prolong battery life;
>Wide input voltage range can adapt to the bad power grid;
>Online maintenace (Optional)Can be carried out in the case of continuous power supply ;
>Abundant communication and monitoring,understanding power satus whenever and wherever;2.Specification: | MODEL | SY-500A | SY-1000A | SY-1500A |
| CAPACITY | 500KVA/300W | 1KVA/600W | 15KVA/900W |
| BATTERY | V/AH | 12V/7AH | 24V/7AH | 24V/9AH |
| Rated Capacity | Rated Voltage | 220VAC |
| Voltage Range | 110-300VAC |
| Voltage Range | 45-54Hz(Software adjustable) |
| Power Factor | >0.98 |
| Input | VoltageFrequency | 220VAC±2% |
| Wave Form | 50Hz±0.1%(Battery Mode) |
| THD | Linear Load <3%,Nonlinear load <6% |
| Overload Capacity | In AC mode,it's 30S when overload is 105%~150%,it's 300MS and then transfer to bypass and start warning |
| In battery mode,it's 30S when overload is 105%~150%,it's 300MS and then transfer to bypass and start warning |
| Overload Capacity | 3:01 | | |
| Battery | Type | Value regulated maintenance free lead acid battery |
| Standard DC Voltage | ≤5%THD |
| Standby time | Minute | 36VDC | 72VDC | 96VDC |
| Full load/Half Load | 5/15 | 5/15 | 5/15 |
| Transformation time | 0 MS (AC & BATTERY) |
| Protection | Overload,Short-circuit,Overvoltage,Undervoltage,Overheat,TVSS |
| Display | LED | UPS Running state indates the battery capacity and load |
| LCD | UPS Running state indates the battery capacity and load |
| Warning | Battery Satus,Ac abnormal,low battery voltage, overload,fault automatic acounstooptic warning |
| Noise Level | 1M distance | <45dB |
| Communication Port | RS232 PORT | Standard RS-232 |
| Intelegent clamp slot | Optional collecation : SNMP Card,AS400 |
| Operation Enviroment | Enviroment Temp. | 0-40ºC |
| Relative Humidity | 0-95% No condensation |

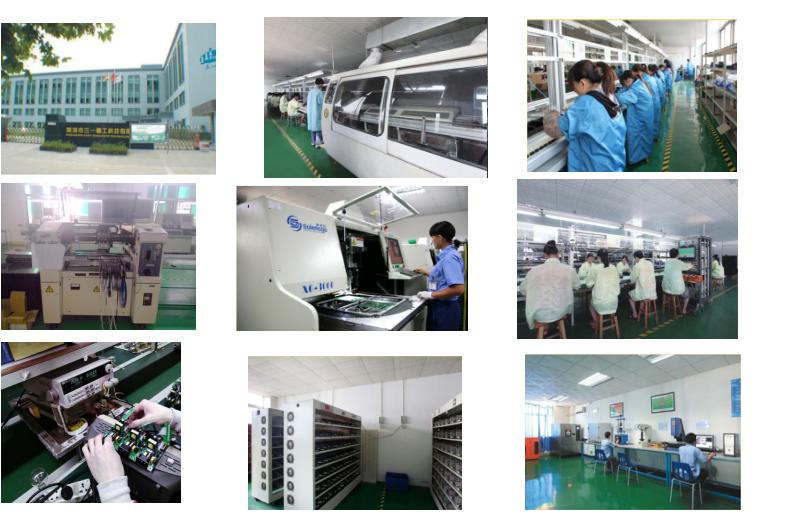

3.Factory:
4.Certificate:
5.FAQ:| Q1:What kind of payment term do you accept ? |
| A1:T/T,L/C,Paypal,Western Union |
| Q2: What is your MOQ ? |
| A2:The MOQ can be 1Pcs |
| Q3:What's your lead time ? |
| A3:The delivery time is 1-25days which depend on detail items and quantity. |
| Q4:Do you accept OEM ODM ? |
| A4: Yes,Customized specification & structure /Print logo on your products/Customized color package box |
| Q5:What is the warranty for your product? |
A5:All our products have been strictky quality checked before packing. Our repare rate under 0.1%~0.2% .We have the best
professional and experienced engineer and we are very strict QA and QC .So,You don't need worry about the quality
problem if cooperate with us. |
| Q6:Can we be your distributor? |
| A6:Yes,If your annual sales much more than our other customers in your country,that your can be our distributor. |
